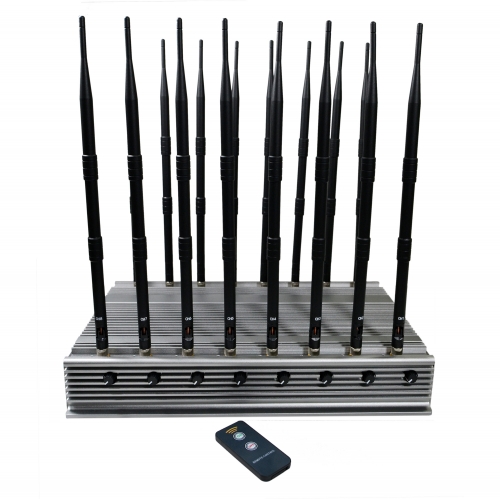

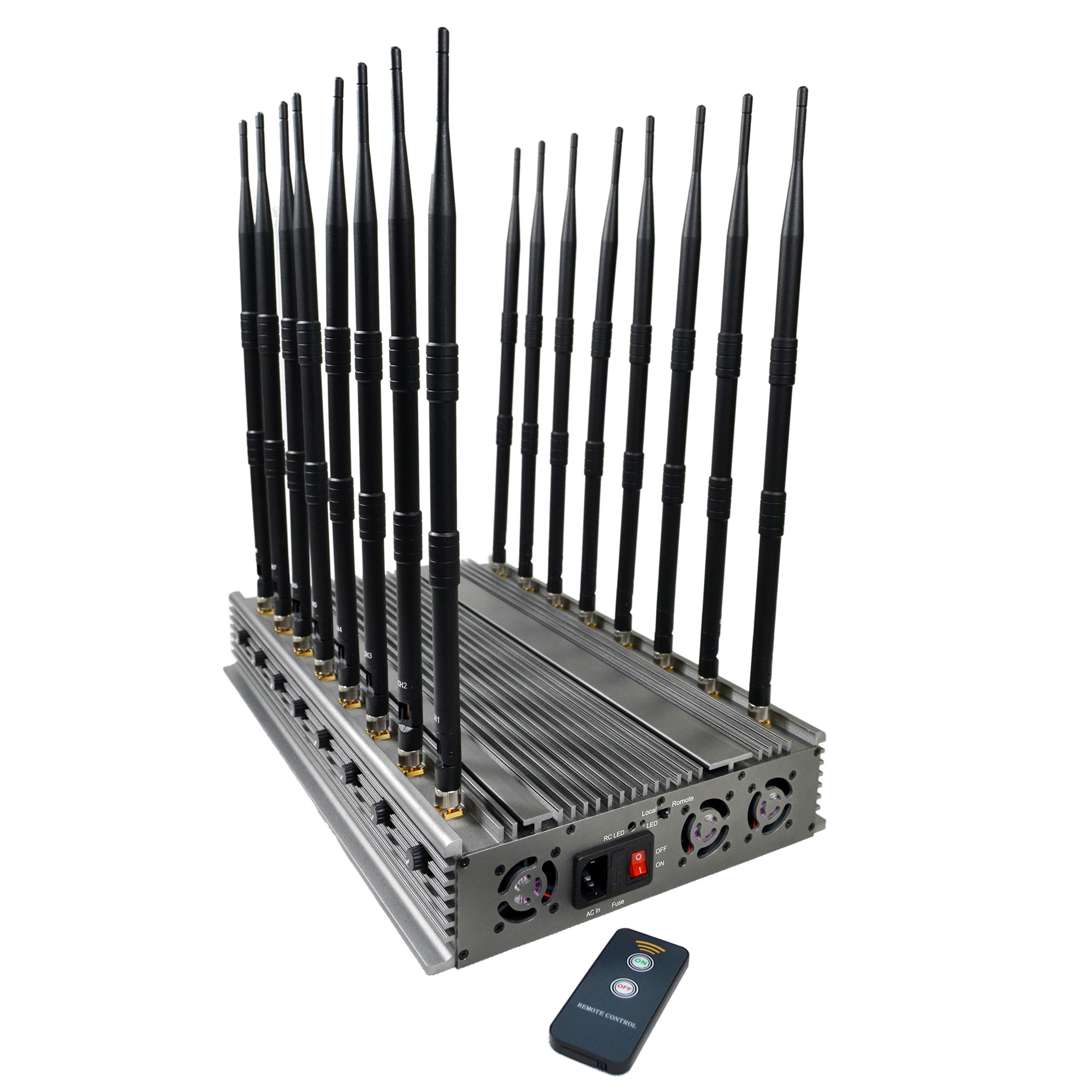

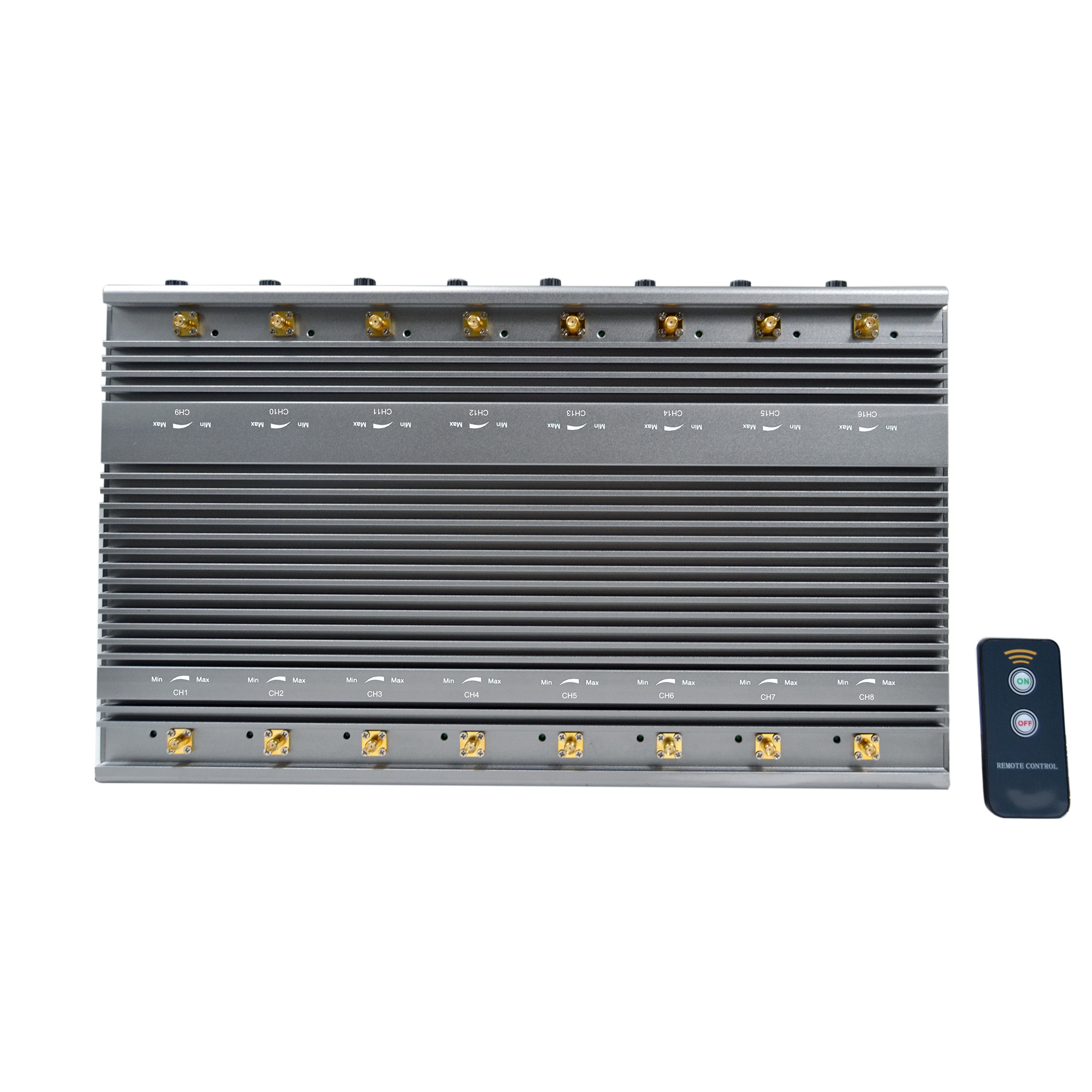

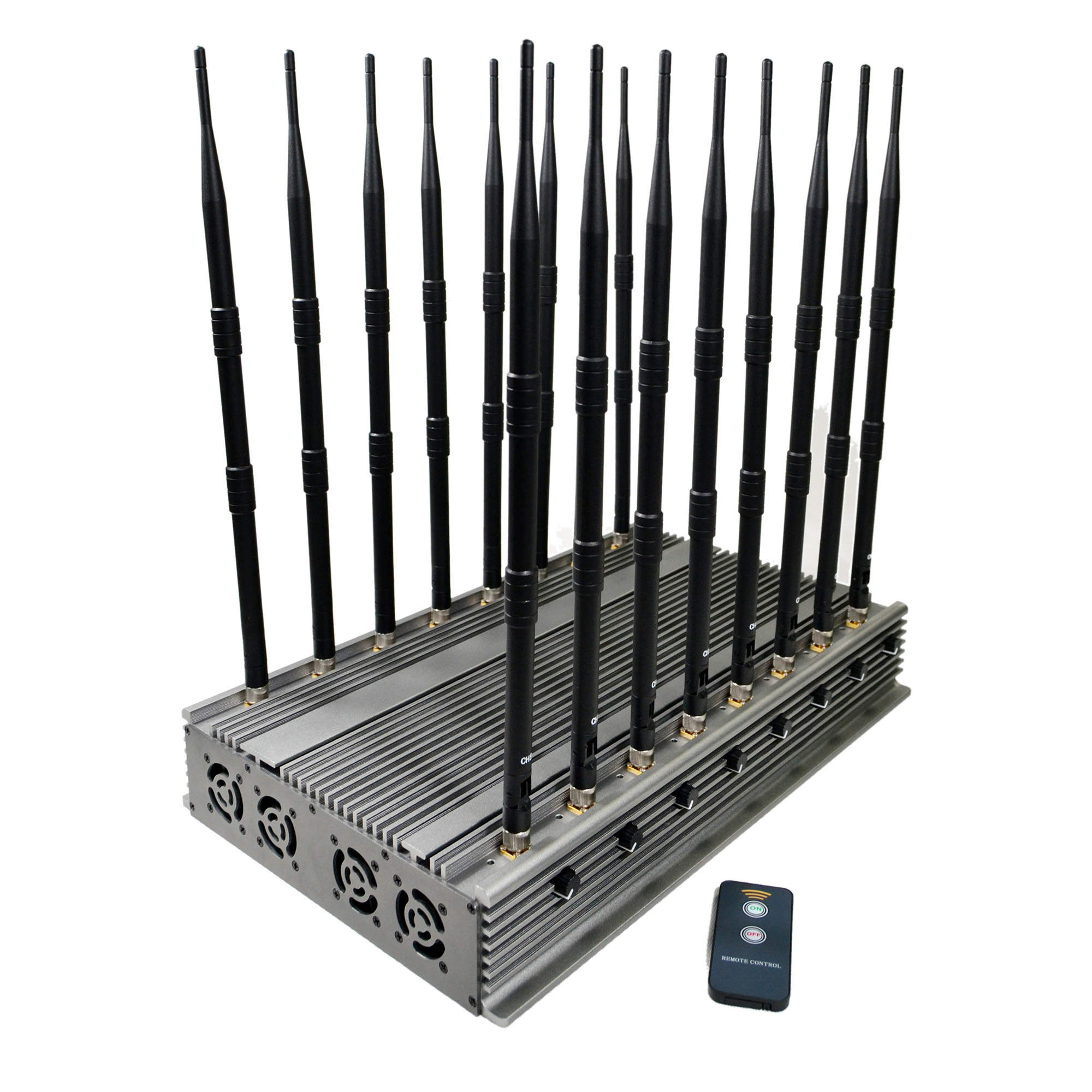

108 Watt World First 16 bands All-in-one Powerful cellphone WIFI 5G GPS LOJACK UHF VHF signal Jammer with 16 Antennas indoor using Adjustable With Infrared Remote Control jamming up to 100M

Item No.: JAM-M16
The world first All-in-one powerful cellphone WIFI GPS UHF/VHF signal Jammer is designed with 16 antennas which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam WiFi2.4G 5G CDMA450M GPS LOJACK UHF
Description

Product Description:
The world first all-in-one powerful cellphone WIFI GPS UHF/VHF signal Jammer is designed with 16 antennas which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam WiFi2.4G 5G CDMA450M GPS LOJACK UHF VHFsignals. And with Adjustable 108 watts high power, the jamming radius of this device can be up to 60 meters at most depending on the signal strength in the detailed place.Built-in7 Cooling Fans non-stop working.LED pilot light show each band working status.

Basic Specifications:
Jam Signal Type
1: JAM-M16-A: Full Bands Mobile Phone 4G/3G/2G+WiFi2.4G+GPSL1/L2L3L4L5+LOJACK/UHF/VHF+RC433/315
2: JAM-M16-B: Full Bands Mobile Phone 4G/3G/2G+WiFi2.4G+GPSL1/L2L3L4L5+LOJACK+WIFI5G
3:JAM-M16-C:Full Bands Mobile Phone 4G/3G/2G+WiFi2.4G+GPSL1/L2L3L4L5+LOJACK/VHF/UHF130-480 MHZ
Output Power:Total 108W,5-10W each band
Jam Radius:30-100meters
Power Supply:AC110-240V to DC24V
Cooling System:High efficiency aluminum alloy radiator, Build-in7 cooling fan
Working Time:Not-stop Working
Product Size:445x 272x 70mm(not Include Antenna)
Product Weight: appr.8.0kg

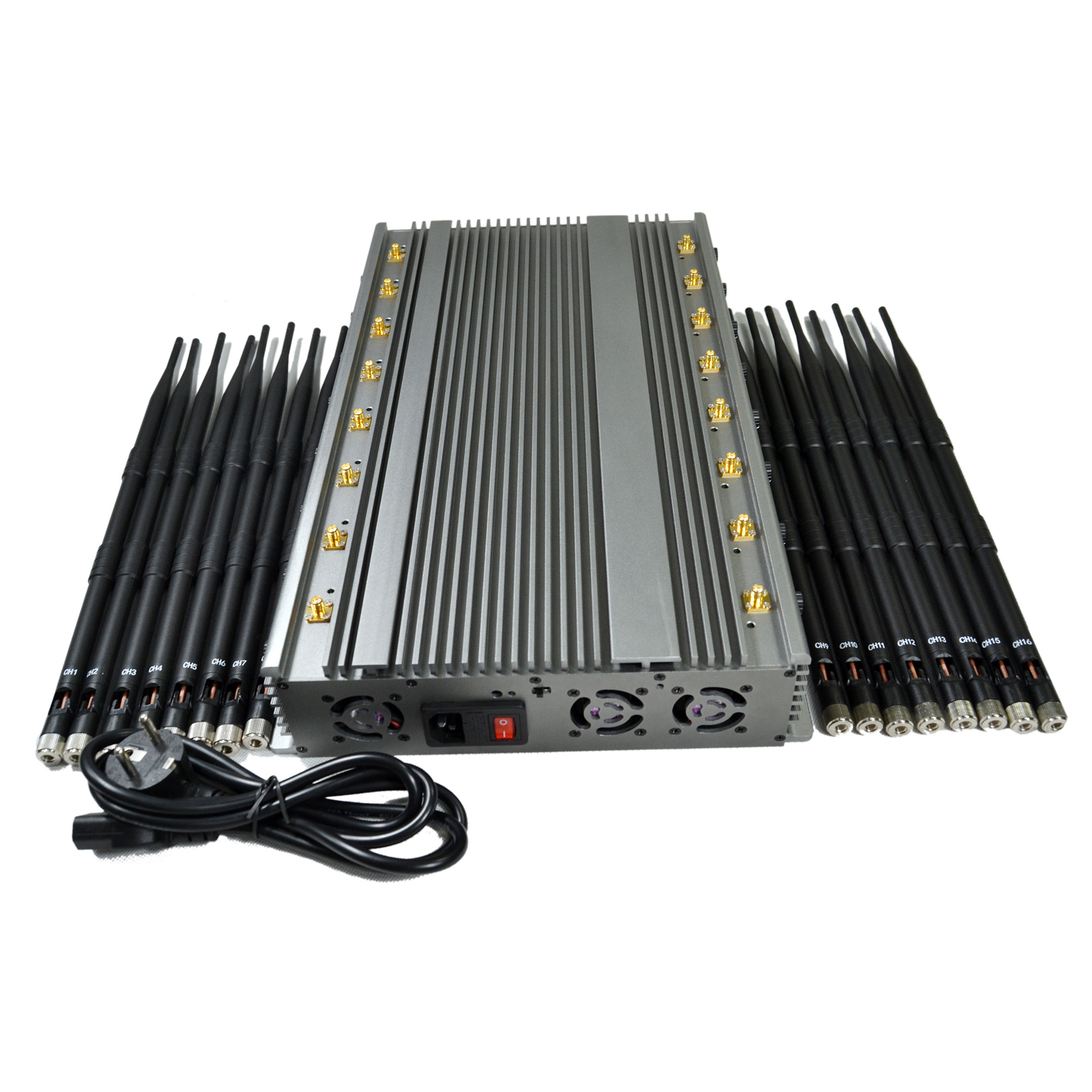

Package Contents:Jammer Host x 1,AC Plug x 1,antenna x16

Advantages:

★16 chancel design, 5-10 watt each band
★High output power, Total up to: 108W, jamming up to 100m (Still depends on the strength signal in given area)
★External high gain 3-5dbiOmni-directional antennas all the TX frequency covered down link only
★Build-in AC110-240V to 24V adapter,Safe and easily use.
★Built-in good cooling system inside 7 fans, Working non-stopped
★2-5meters with Infrared Remote Control Turn ON /OFF Power
★Can adjust or turn off any single band without influencing the other bands operation
★Independent module designwith frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer)
★LED pilot light show each band working status
★ODM and OEM orders are welcome, you can select any 16 bands for you require.

Notice: If you want to use this device in car, pls buy an inverter of DC12V/24V to AC110-240V, Power≥500Watts.


Key Technical specifications : JAM-M16-A
Channel Output port Frequency range Average out-putting power
1 CDMA 851-894MHz 40dBm/10W
2 GSM 925-960MHz 40dBm/10W
3 DCS or PCS 1805-1880 or 1920-1990MHz 39dBm/8W
4 3G 2110-2170MHz 39dBm/8W
5 4G1 LTE 700-803 or 790-862MHz 39dBm/8W
6 4G LTE1700 1700-1800MHz 39dBm/8W
7 4G Wimax 2500-2690 or 2300-2400MHz 39dBm/8W
8 WIFI2.4G 2400-2500MHz 39dBm/8W
9 GPSL1 1570-1580MHz 37dBm/5W
10 GPSL2+L5 1170-1280MHz 37dBm/5W
11 GPSL3+L4 1370-1390MHz 37dBm/5W
12 LOJACK 167-175MHz 37dBm/5W
13 VHF 135-174MHz 37dBm/5W
14 UHF 400-470MHz 37dBm/5W
15 RC433 430-440MHz 37dBm/5W
16 RC315 310-320MHz 37dBm/5W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC)
Dimensions: (length ,width, height) 445x 272x 70mm(not Include Antenna
Packing size: 52x42x12cm            Net weight:7kg       Gross weight: 8kg
Total power:108W
Shielding radius: (30-100) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters
Warranty: one year from delivery date

Key Technical specifications : JAM-M16-B
Channel Output port Frequency range Average out-putting power
1 CDMA 851-894MHz 40dBm/10W
2 GSM 925-960MHz 40dBm/10W
3 DCS or PCS 1805-1880 or 1920-1990MHz 39dBm/8W
4 3G 2110-2170MHz 39dBm/8W
5 4G1 LTE 700-803 or 790-862MHz 39dBm/8W
6 4G LTE1700 1700-1800MHz 39dBm/8W
7 4G Wimax 2500-2690 or 2300-2400MHz 39dBm/8W
8 WIFI2.4G 2400-2500MHz 39dBm/8W
9 GPSL1 1570-1580MHz 37dBm/5W
10 GPSL2+L5 1170-1280MHz 37dBm/5W
11 GPSL3+L4 1370-1390MHz 37dBm/5W
12 LOJACK 167-175MHz 37dBm/5W
13 VHF 135-174MHz 37dBm/5W
14 UHF 400-470MHz 37dBm/5W
15 WIFI5.2G 5100-5500MHz 31dBm/1.2W
16 WIFI5.8G 5500-5900MHz 31dBm/1.2W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC)
Dimensions: (length ,width, height) 445x 272x 70mm(not Include Antenna
Packing size: 52x42x12cm            Net weight:7kg       Gross weight: 8kg
Total power:100W
Shielding radius: (30-100) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters
Warranty: one year from delivery date

Key Technical specifications : JAM-M16-C
Channel Output port Frequency range Average out-putting power
1 CDMA 851-894MHz 40dBm/10W
2 GSM 925-960MHz 40dBm/10W
3 DCS or PCS 1805-1880 or 1920-1990MHz 39dBm/8W
4 3G 2110-2170MHz 39dBm/8W
5 4G1 LTE 700-803 or 790-862MHz 39dBm/8W
6 4G LTE1700 1700-1800MHz 39dBm/8W
7 4G Wimax 2500-2690 or 2300-2400MHz 39dBm/8W
8 WIFI2.4G 2400-2500MHz 39dBm/8W
9 GPSL1 1570-1580MHz 37dBm/5W
10 GPSL2+L5 1170-1280MHz 37dBm/5W
11 GPSL3+L4 1370-1390MHz 37dBm/5W
12 LOJACK 167-175MHz 37dBm/5W
13 VHF F1 130-190MHz 37dBm/5W
14 UHF F2 190-280MHz 37dBm/5W
15 UHF F3 280-380 MHz 37dBm/5W
16 UHF F4 380-480MHz 37dBm/5W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-24V DC)
Dimensions: (length ,width, height) 445x 272x 70mm(not Include Antenna
Packing size: 52x42x12cm            Net weight:7kg       Gross weight: 8kg
Total power:100W
Shielding radius: (30-100) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters
Warranty: one year from delivery date

OEM Customized service:
Silkscreen OEM service can be offered

Applications:
o    It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
