12 Antennas 70W Powerful Cellphone WIFI GPS LOJACK UHF VHF signal Jammer with Remote control jamming up to 80m

Item No.: JAM-M12

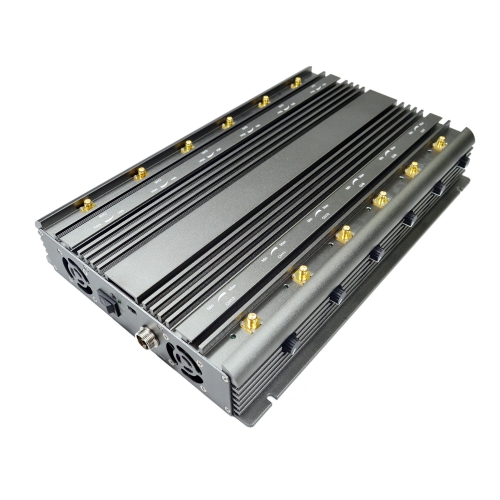

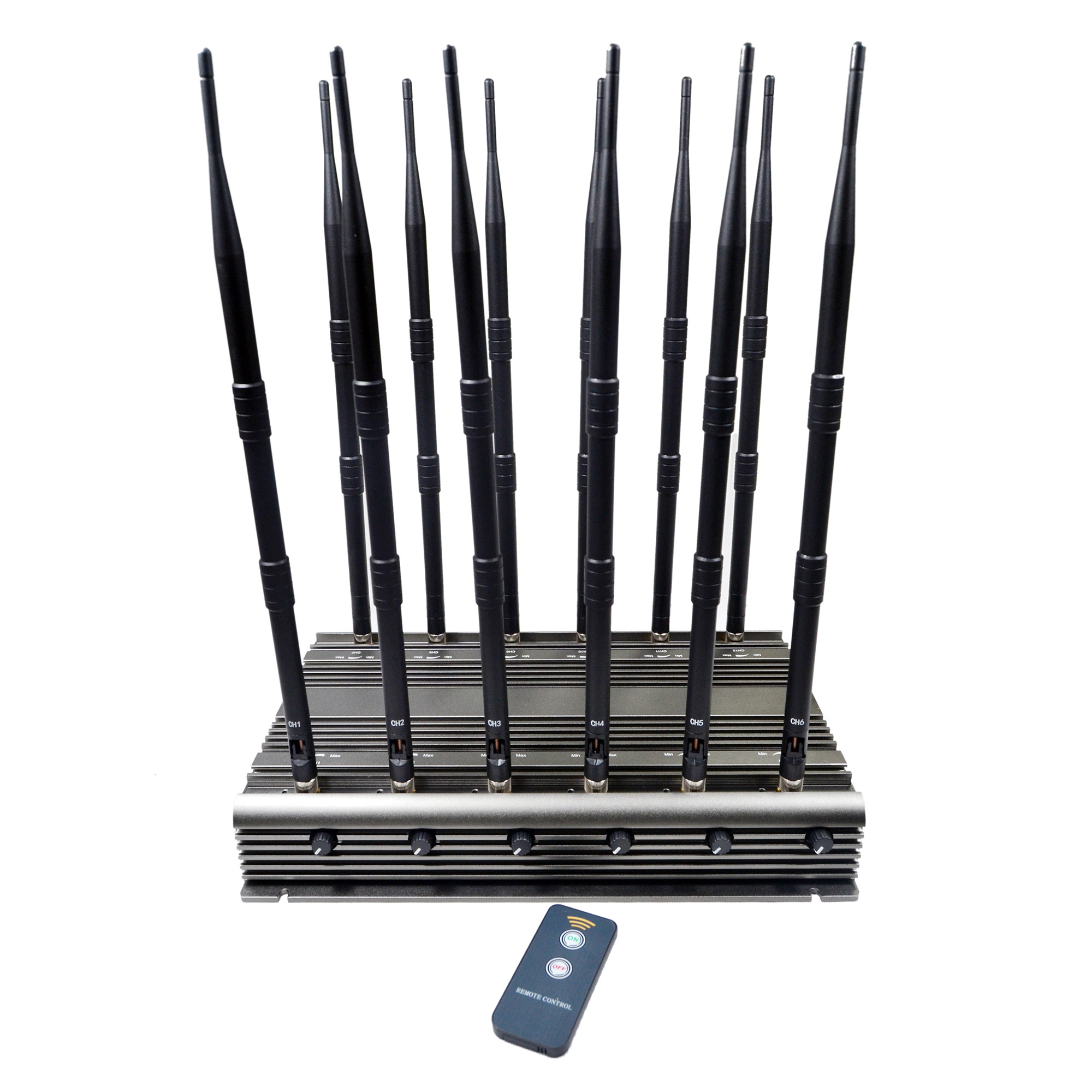

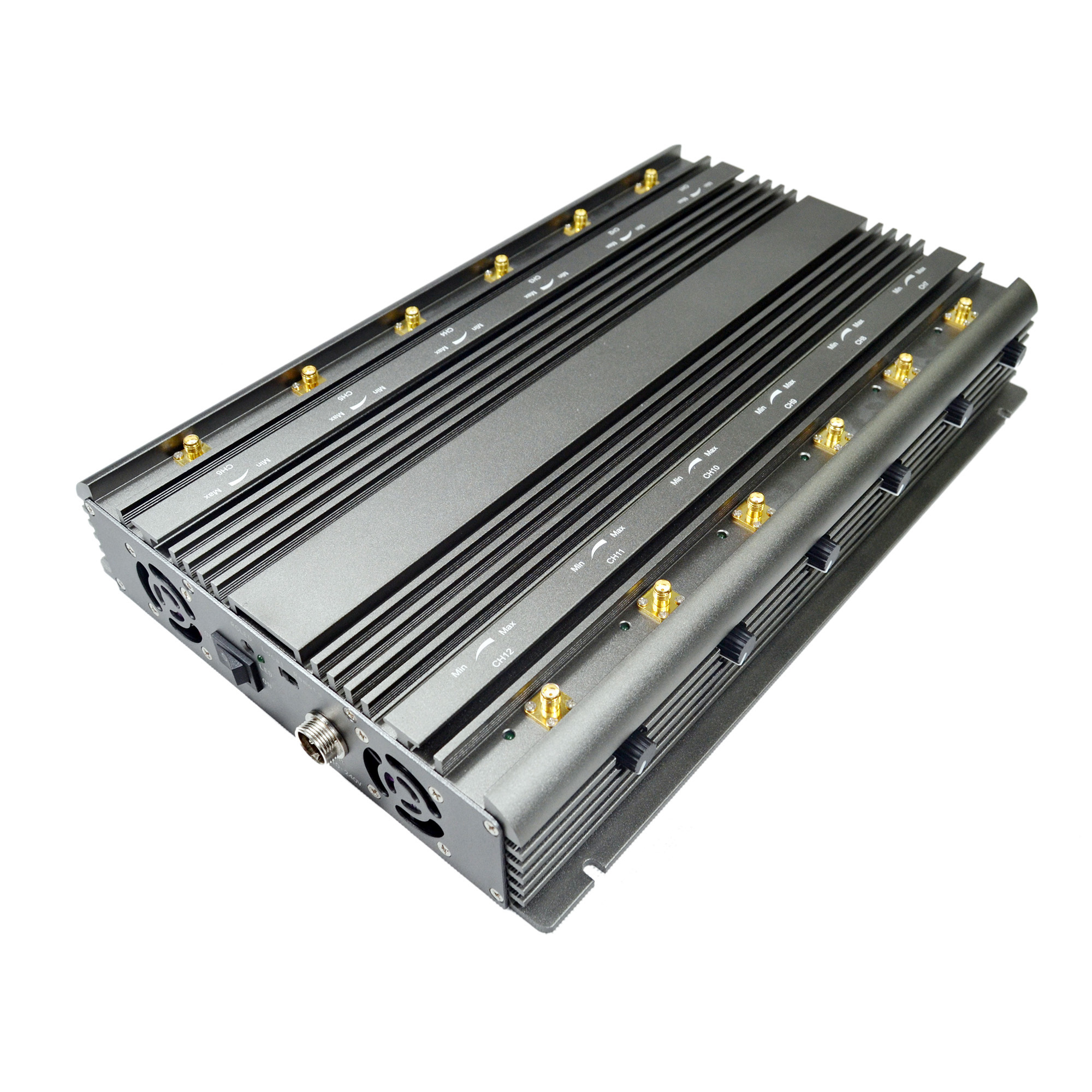

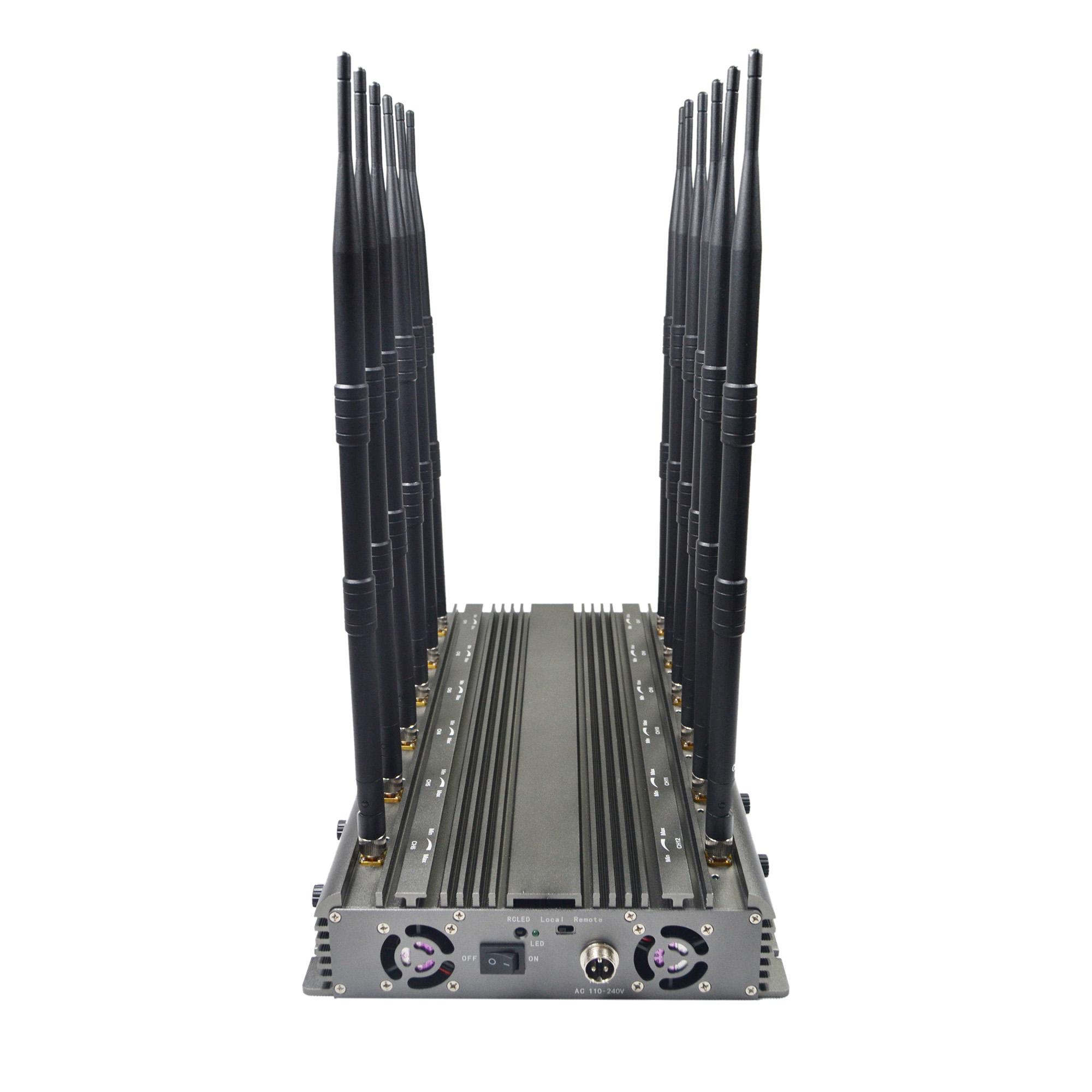

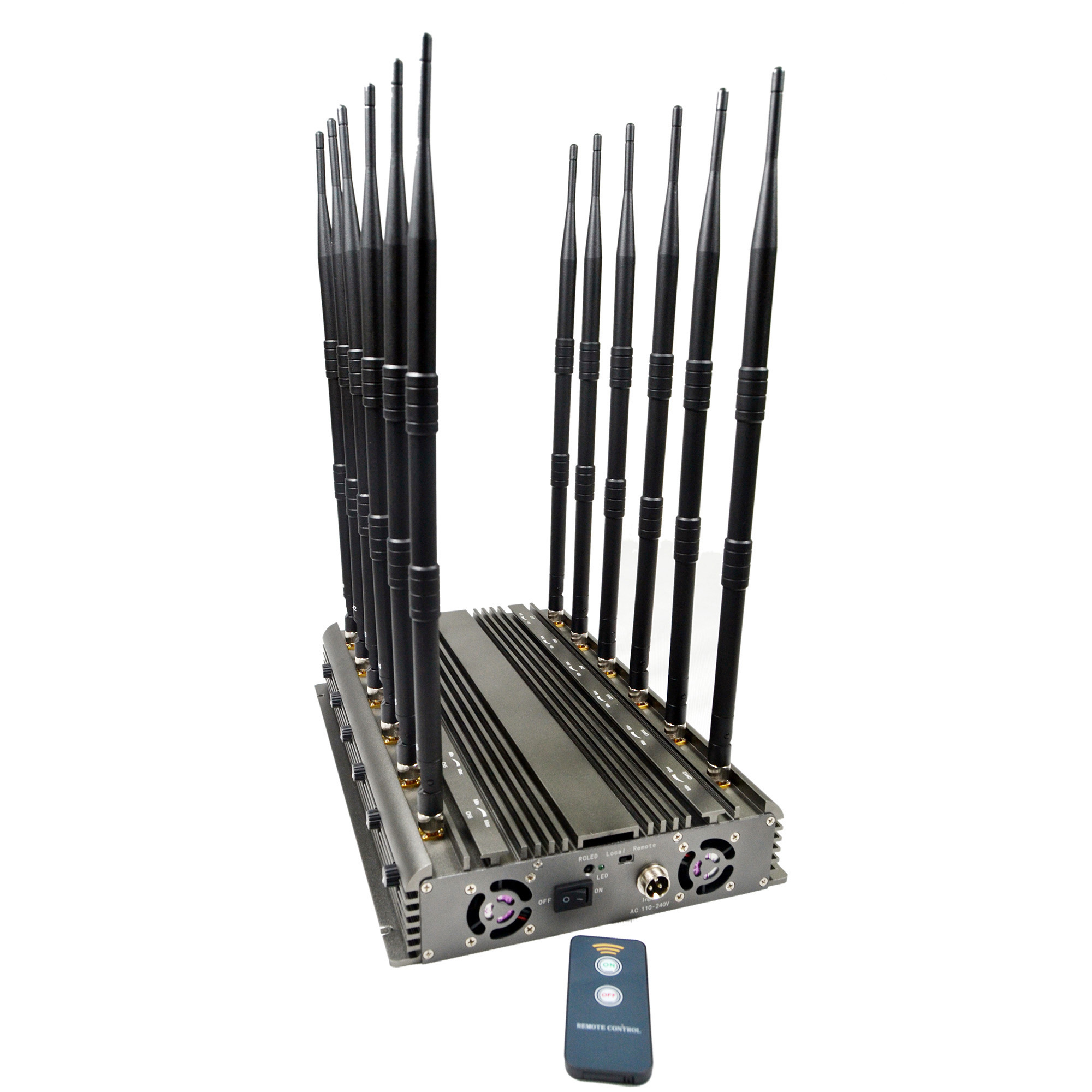

This New powerful cellphone WIFI GPS UHF/VHF signal jammer is designed with 12 antennas,Adjustable 70 watts high power up to 80 meter,Built-in 5 Cooling Fans non-stop working,with Infrared Remote Control Turn ON /OFF Power.
Description

Product Description:
This New powerful cellphone WIFI GPS UHF/VHF signal jammer is designed with 12 antennas,Adjustable 70 watts high power up to 80 meter,Built-in 5 Cooling Fans non-stop working,with Infrared Remote Control Turn ON /OFF Power.

Basic Specifications:
Jam Signal Type
1.JAM-M12-A: Full Bands Mobile Phone 4G/3G/2G+WiFi2.4G+GPS+LOJACK+315+433+UHF+VHF
2.JAM-M12-B: Full Bands Mobile Phone 4G/3G/2G+WiFi2.4G+5.2G+5.8G+GPS+LOJACK+UHF+VHF
3.JAM-M12-C: Full Bands Mobile Phone 4G/3G/2G+WiF2.4Gi+GPS+LOJACK/UHF/VHF+912+4G1700
4.JAM-M12-D: Full Bands Mobile Phone 4G/3G/2G+WiFi2.4G+GPSL1L2L3L4L5+LOJACK+UHF+VHF

Output Power:Total 65-71W,4-8W each band
Jam Radius:20-80meters
Power Supply:AC110-240V to DC24V
Cooling System:High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time:Not-stop Working
Product Size:355x 238x 60mm(not Include Antenna)
Product Weight: appr.5.0kg

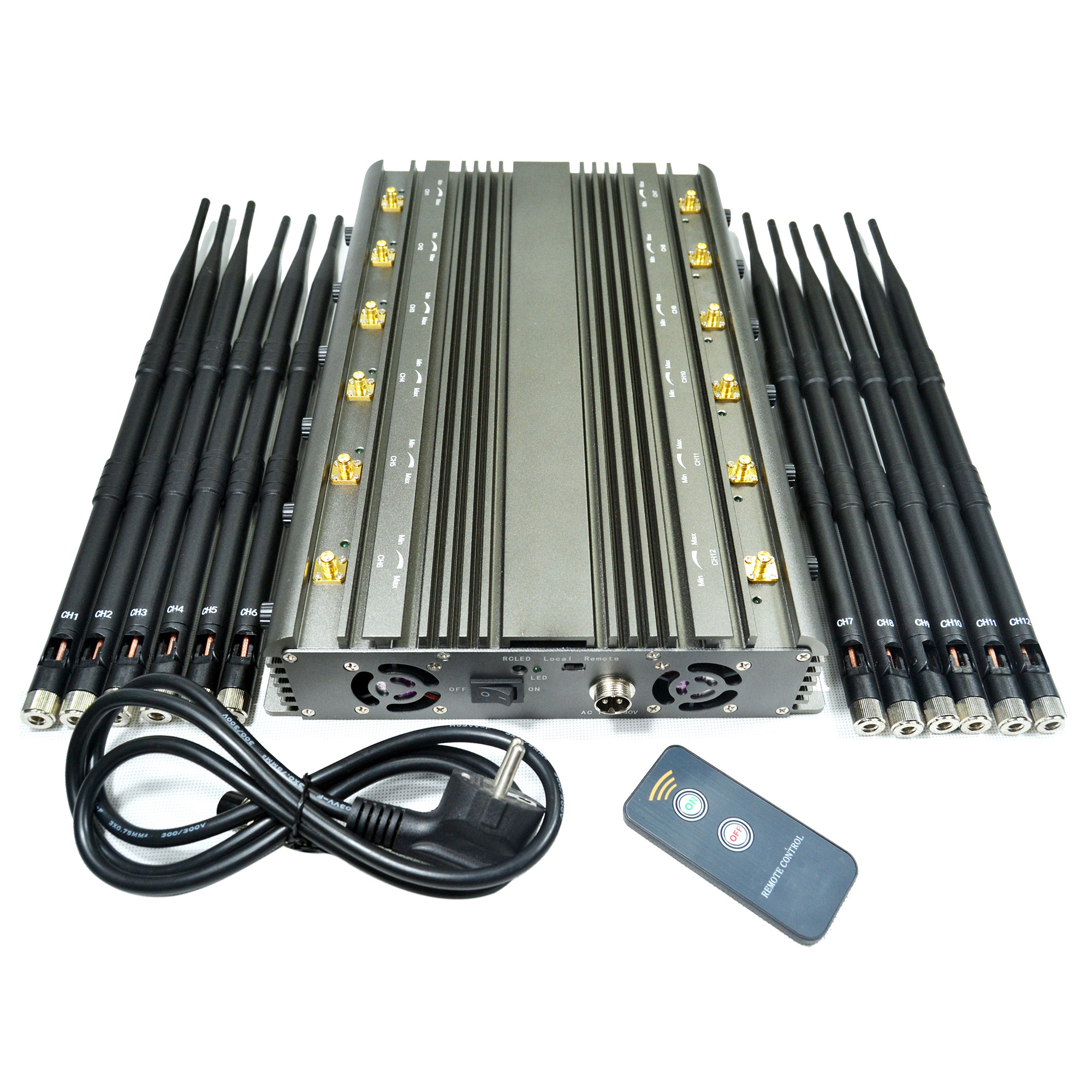

Package Contents:Jammer Host x 1, AC Plug x 1, antenna x12

Advantages:

★12 chancel design, 4-8 watt each band
★High output power, Total up to: 70W, jamming up to 80m (Still depends on the strength signal in given area)
★External high gain 3-5dbi Omni-directional antennas all the TX frequency covered down link only
★Build-in AC110-240V to 24V adapter, Safe and easily use.
★Built-in good cooling system inside 5 fans, Working non-stopped
★2-5meters with Infrared Remote Control Turn ON /OFF Power
★Can adjust or turn off any single band without influencing the other bands operation
★Independent module design with frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer)
★ODM and OEM orders are welcome, you can select any 12 bands for your require.
Notice: If you want to use this device in car, pls buy an inverter of DC12V/24V to AC110-240V, Power≥500Watts


Key Technical specifications : JAM-M12-A
Channel Output port Frequency range Average out-putting power
1 CDMA/GSM 851-894/925-960MHz 39dBm/8W
2 DCS or PCS 1805-1880 or 1920-1990MHz 37.8dBm/6W
3 3G 2110-2170MHz 37.8dBm/6W
4 4G1 LTE 700-803 or 790-862MHz 39dBm/8W
5 4G Wimax 2500-2690 or 2300-2400MHz 37dBm/5W
6 GPSL1 1570-1580MHz 36dBm/4W
7 WIFI2.4G 2400-2500MHz 37dBm/5W
8 315 310-330MHz 37dBm/5W
9 433 430-440MHz 37dBm/5W
10 LOJACK 167-175MHz 37dBm/5W
11 VHF 135-174MHz 37dBm/5W
12 UHF 400-470MHz 37dBm/5W
Power supply: Build-in AC adapter 50 to 60Hz, (AC110-240V IN, DC24V working)
Dimensions: (length ,width, height) 355x 238x 60mm(not Include Antenna)
Packing size: 47x42x11.5cm            Net weight: 5kg       Gross weight: 5.5kg
Total power:71W
Shielding radius: (20-80) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters
Warranty: one year from delivery date

Key Technical specifications : JAM-M12-B
Channel Output port Frequency range Average out-putting power
1 CDMA/GSM 851-894/925-960MHz 39dBm/8W
2 DCS or PCS 1805-1880 or 1920-1990MHz 37.8dBm/6W
3 3G 2110-2170MHz 37.8dBm/6W
4 4G1 LTE 700-803 or 790-862MHz 39dBm/8W
5 4G Wimax 2500-2690 or 2300-2400MHz 37dBm/5W
6 GPSL1 1570-1580MHz 36dBm/4W
7 WIFI2.4G 2400-2500MHz 37dBm/5W
8 WIFI5.2G 5100-5500MHz 31dBm/1.2W
9 WIFI5.8G 5500-5900MHz 31dBm/1.2W
10 LOJACK 167-175MHz 37dBm/5W
11 VHF 135-174MHz 37dBm/5W
12 UHF 400-470MHz 37dBm/5W
Power supply: Build-in AC adapter 50 to 60Hz, (AC110-240V IN, DC24V working)
Dimensions: (length ,width, height) 355x 238x 60mm(not Include Antenna)
Packing size: 47x42x11.5cm            Net weight: 5kg       Gross weight: 5.5kg
Total power:71W
Shielding radius: (20-80) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters
Warranty: one year from delivery date

Key Technical specifications : JAM-M12-C
Channel Output port Frequency range Average out-putting power
1 CDMA/868 851-894MHz 39dBm/8W
2 GSM/912 925-960MHz 39dBm/8W
3 DCS or PCS 1805-1880 or 1920-1990MHz 37.8dBm/6W
4 3G 2110-2170MHz 37.8dBm/6W
5 4G1 LTE 700-803 or 790-862MHz 39dBm/8W
6 4G LTE1700 1700-1800MHz 37.8dBm/6W
7 4G Wimax 2500-2690 or 2300-2400MHz 37dBm/5W
8 WIFI2.4G 2400-2500MHz 37dBm/5W
9 GPSL1 1570-1580MHz 36dBm/4W
10 LOJACK 167-175MHz 37dBm/5W
11 VHF 135-174MHz 37dBm/5W
12 UHF 400-470MHz 37dBm/5W
The below frequencies you can instead of above one to combined 12 bands
  GPSL2+L5 1170-1280MHz 36dBm/4W
  GPSL3+L4 1370-1390MHz 36dBm/4W
  RC315 310-320MHz 36dBm/4W
  RC433 430-440MHz 36dBm/4W
Power supply: Build-in AC adapter 50 to 60Hz, (AC110-240V IN, DC24V working)
Dimensions: (length ,width, height) 355x 238x 60mm(not Include Antenna)
Packing size: 47x42x11.5cm            Net weight: 5kg       Gross weight: 5.5kg
Total power:71W
Shielding radius: (20-80) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters
Warranty: one year from delivery date

Key Technical specifications : JAM-M12-D
Channel Output port Frequency range Average out-putting power
1 CDMA/GSM 851-894/925-960MHz 39dBm/8W
2 DCS or PCS 1805-1880 or 1920-1990MHz 37.8dBm/6W
3 3G 2110-2170MHz 37.8dBm/6W
4 4G1 LTE 700-803 or 790-862MHz 39dBm/8W
5 4G Wimax 2500-2690 or 2300-2400MHz 37dBm/5W
6 GPSL1 1570-1580MHz 36dBm/4W
7 WIFI2.4G 2400-2500MHz 37dBm/5W
8 GPSL2L5 1170-1280MHz 36dBm/4W
9 GPSL3L4 1370-1390MHz 37dBm/5W
10 LOJACK 167-175MHz 37dBm/5W
11 VHF 135-174MHz 37dBm/5W
12 UHF 400-470MHz 37dBm/5W
Power supply: Build-in AC adapter 50 to 60Hz, (AC110-240V IN, DC24V working)
Dimensions: (length ,width, height) 355x 238x 60mm(not Include Antenna)
Packing size: 47x42x11.5cm            Net weight: 5kg       Gross weight: 5.5kg
Total power:71W
Shielding radius: (20-80) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 20meters
Warranty: one year from delivery date

OEM Customized service
Silkscreen OEM service can be offered

Applications:
o    It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
