2020 16 Watt New Handheld 16 Bands Cell Phone Signal Jammer With Nylon Cover,Blocking 5G 4G Wi-Fi5G RF Signal Jammer (US & South AmericanVersion)

Item No.: JAM-P16-5G-US
The latest handheld design 16bands all-in-one frequencies blocking all cell phone 5G 4G 3G 2G signals, LOJACK GPS, Wi-Fi, RF signals,16 watt high output power, Jamming range 10 to 20 meters.
Product Description:
The latest all-in-one design wireless signal Jammer with nylon cover for portable,16 bands jamming all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that use 2G, 3G, 4G 5GLTE, and CDMA 450Mhz,Block LOJACK GPS, Wi-Fi 5G,Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868 is popular in 2020 and in years to come.

Basic Specifications:
Jam Signal Type:Full Bands Mobile Phone 5G/4G/3G/2G +WiFi2.4G/5G+ GPSL1L2L5VHF/LOJACK+RC433 315
Output Power:Total 16W,1W each band with 2dbi gains omni antennas
Jam Radius:10-25metersStill depends on the strength signal in given area
Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in3x cooling fan
Working Time:Built-in battery:7.4V/12000mAh Continue working: more than 2.0+ hours
Product Size:190x126x46mm(withoutomni Antenna)
Product Weight: appr.2.0kg

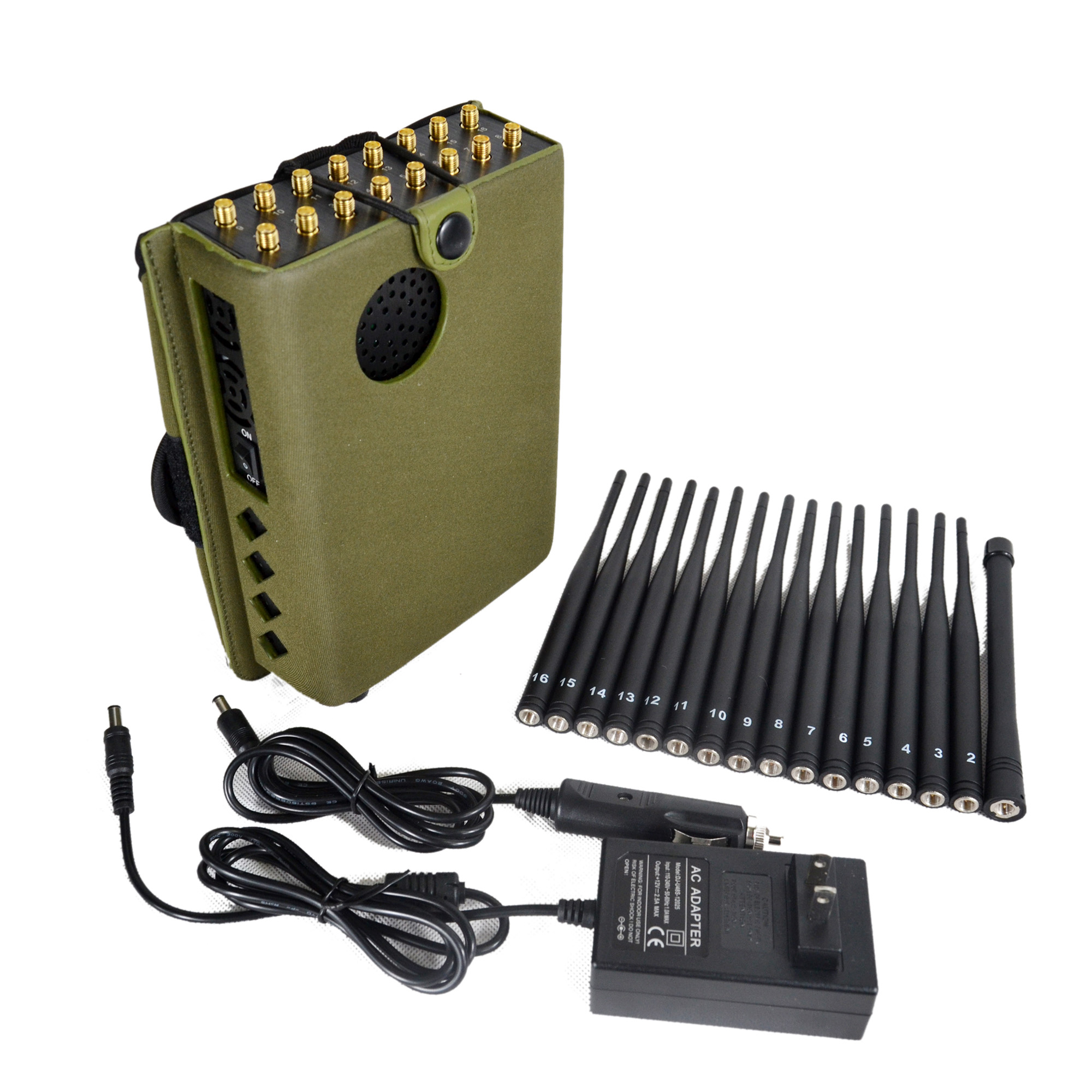

Package Contents:Jammer Host x 1,AC Charger x1, omni antenna x16,Car Charger x1,Nylon cover x1.


★The latesthandheld design 16bands all-in-one frequencies blocking all cell phone 5G 4G 3G 2G signals, LOJACK GPS, Wi-Fi, RF signals
★16watt high output power, Jamming range 10 to 25 meters (at-75dBm, depends on signal strength in given area)

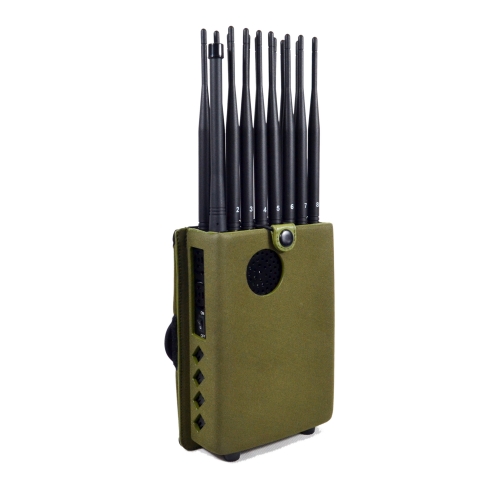

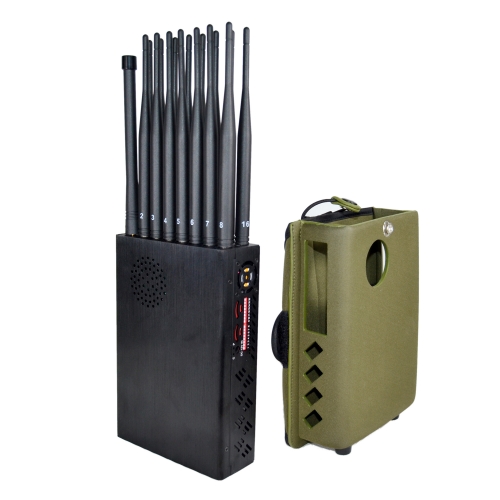

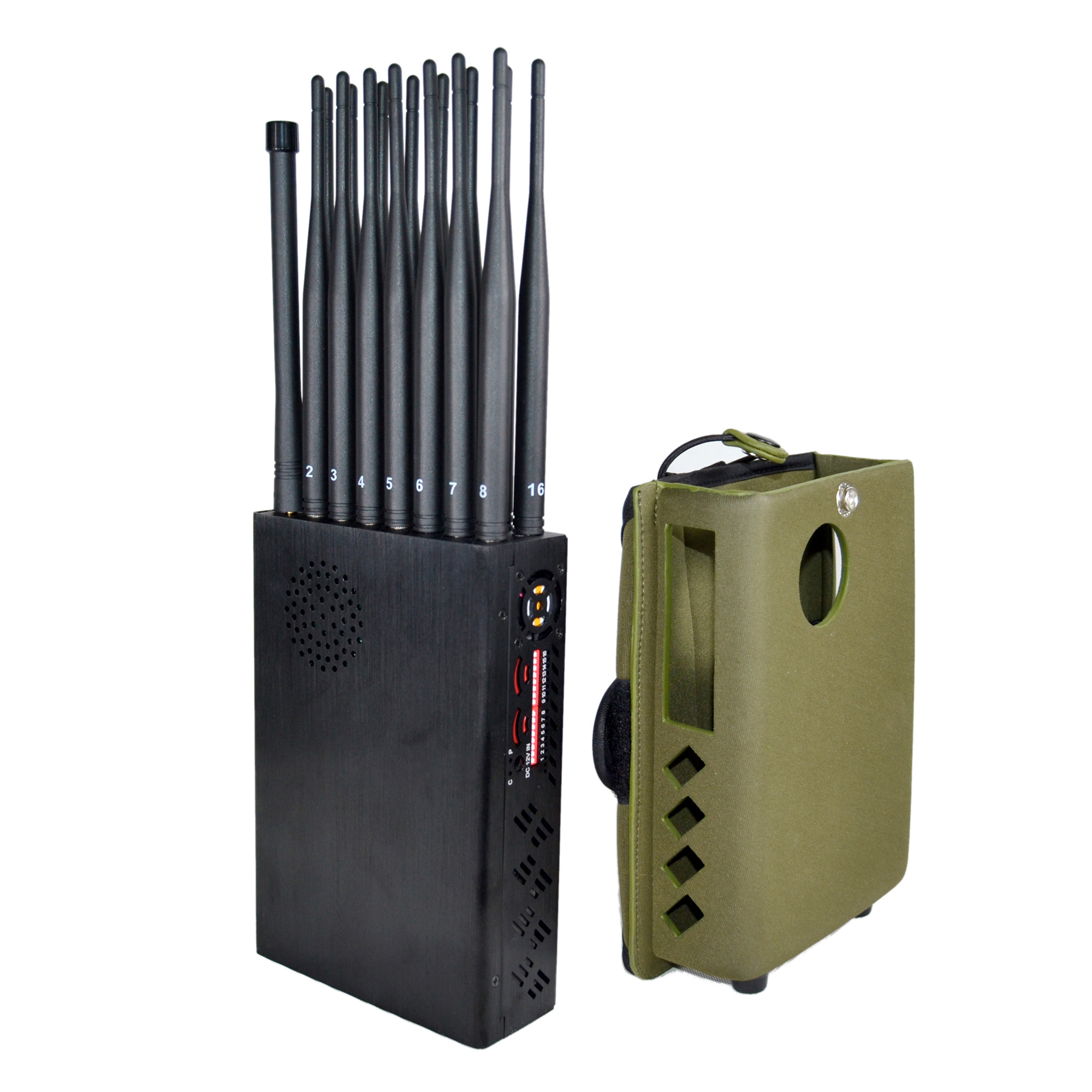

★Good cooling system with 3 cooling fans inside and bigger hot sink, Nylon cover for handheld
★With DIP switch, can turn on/off any signal band without affect other bands
★With car charger, 12V DC/AC power supply is also available
★With built-in bigger battery, can work more than (2.5+ hours) 150 minutes, Easily repeated charging.

Key technical specifications: JAM-P16-5G-US
Channel Output port Frequency range Average out-putting power
Band 1 VHF&LOJACK 135-175MHz 30±1dBm/ 1±0.2W
Band 2 4G700 700-803MHz 30±1dBm/ 1±0.2W
Band 3 5G600 617-685MHz 30±1dBm/ 1±0.2W
Band 4 3G 2110-2170MHZ 30±1dBm/ 1±0.2W
Band 5 WIFI5.2G 5125-5350MHz 30±1dBm/ 1±0.2W
Band 6 4G1700 1710-1780MHz 30±1dBm/ 1±0.2W
Band 7 CDMA 850-894MHz 30±1dBm/ 1±0.2W
Band 8 4G2600 2500-2690MHZ 30±1dBm/ 1±0.2W
Band 9 RC315 315MHz 30±1dBm/ 1±0.2W
Band 10 RC433 433MHz 30±1dBm/ 1±0.2W
Band 11 5G3600 3600-3900MHz 30±1dBm/ 1±0.2W
Band 12 5G3400 3400-3600MHz 30±1dBm/ 1±0.2W
Band 13 GPSL1 1570-1580MHz 30±1dBm/ 1±0.2W
Band 14 WIFI2.4G/4G2300 2345-2500MHz 30±1dBm/ 1±0.2W
Band 15 PCS 1920-1990MHz 30±1dBm/ 1±0.2W
Band 16 WIFI5.8G 5725-5850MHz 30±1dBm/ 1±0.2W
Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC)  Car Charger: DC12V IN
Dimensions: (length ,width, height) 190x126x46mm (without antenna)
Length of antenna :166mm   Gain:2.0dbi
Packing size:330*250*80mm        Net weight: 1.5kg               Gross weight: 2.0kg
Total power: 16W
Shielding radius: (2-25) meters at -75dBm Still depends on the strength signal in given area
Built-in battery:7.4V/12000mAh Continue working: more than 2.5+ hours
Warranty: one year from delivery date
OEM Customized service:
Customized for special frequency band
Silkscreen OEM service can be offered

o    It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
