Name: 300 W High Power Bomb Jammer Mobile Phone 3G 4G WIFI Blocker jamming up to 400 M
Brand: Cellphone Jammer, Wireless Signal Jammer, Mobile Phone Jammer,GPS Jammer, Wifi Jammer, Prison Jammer , Military Jammer, Cellphone Jammer manufacturer from China!
SKU: 1708HL6
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 1708HL6

The one is professional 1620 Pelican case portable high power bomb or mobile phone jammer for 4G cellular phones, Cellphone 3G 4GLTE/WIMAX Wi-Fi UHF VHF Signal jammer which are currently presented on the market. Also is Higher RF Power Drone jammer model

INQUIRY PDF Format

Description

Product description:

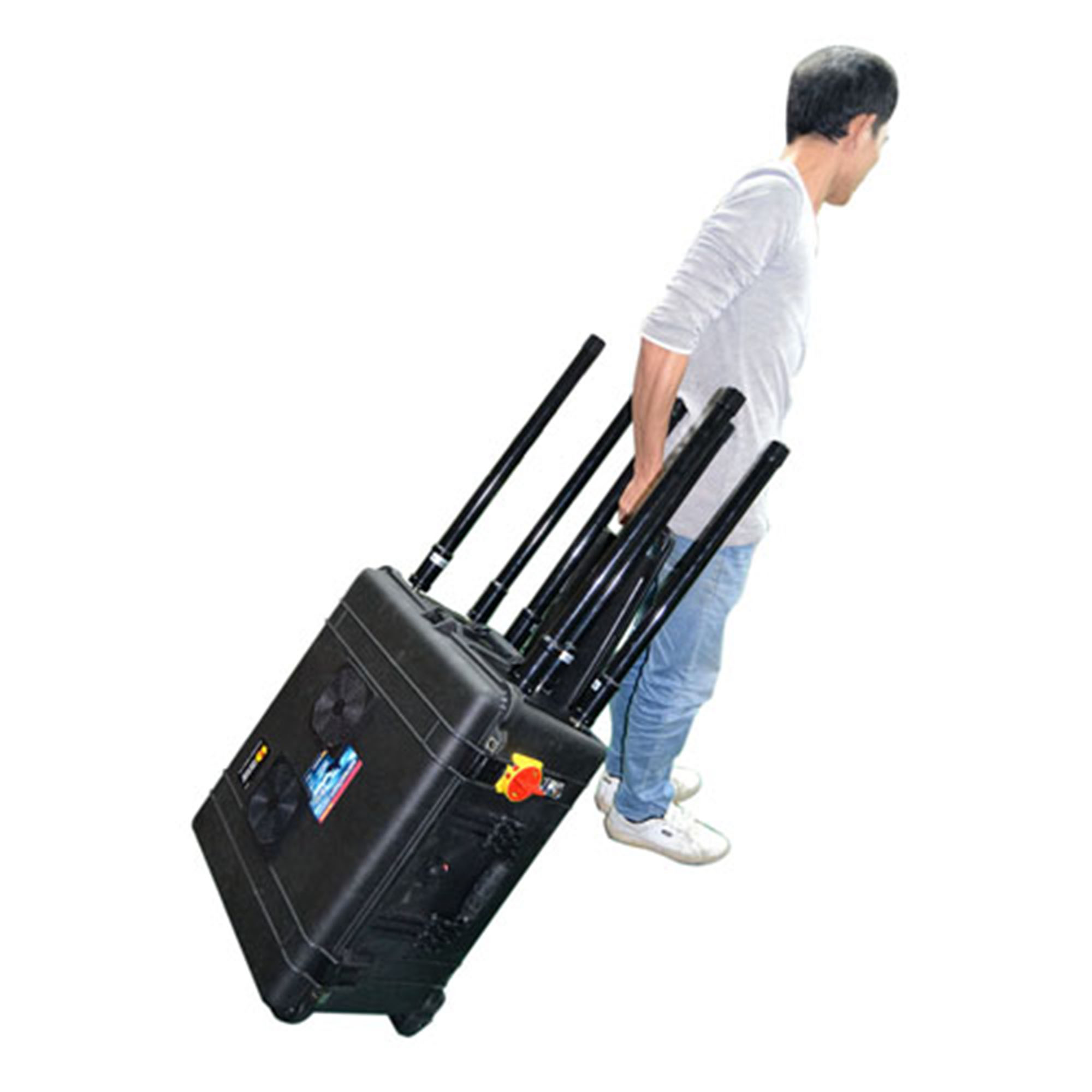

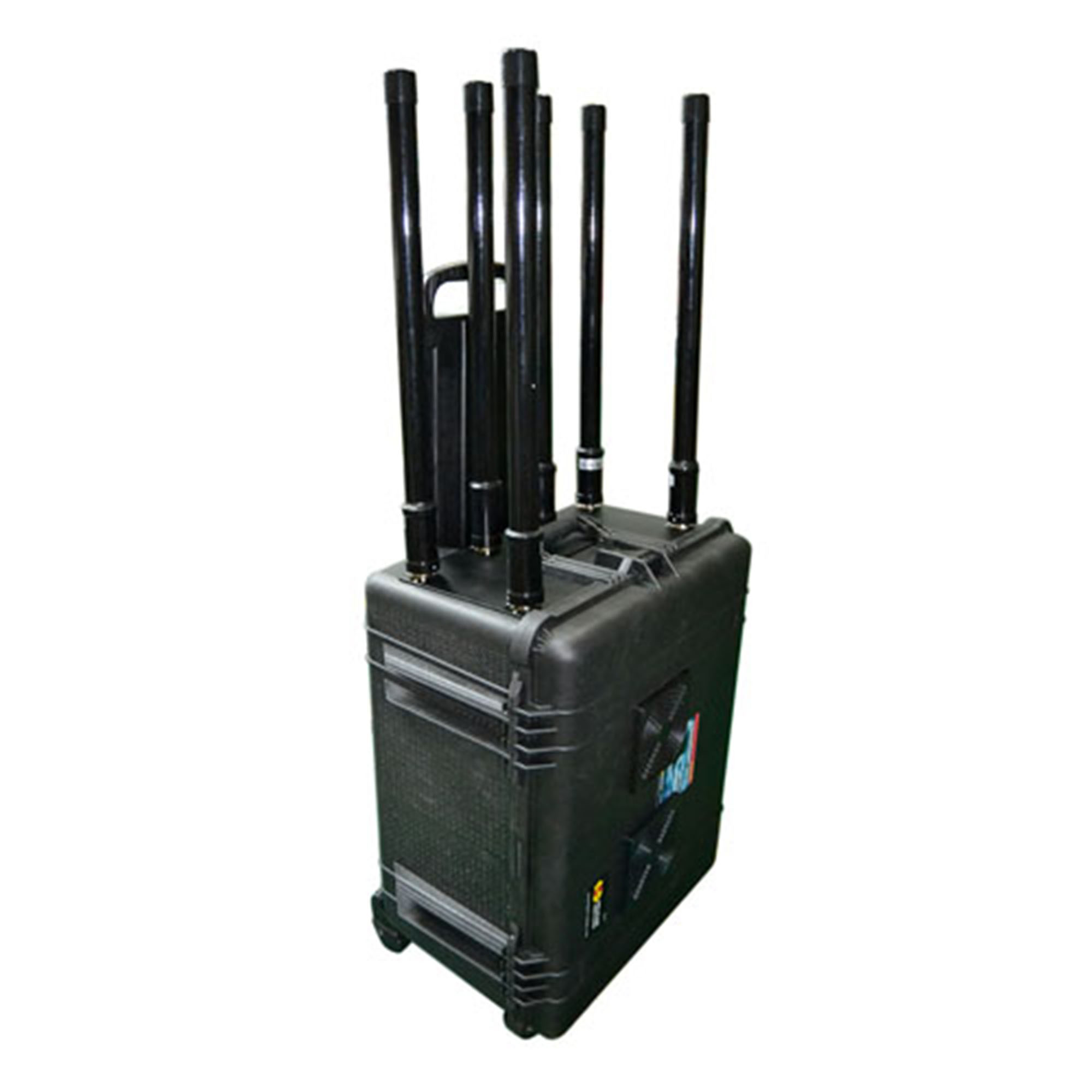

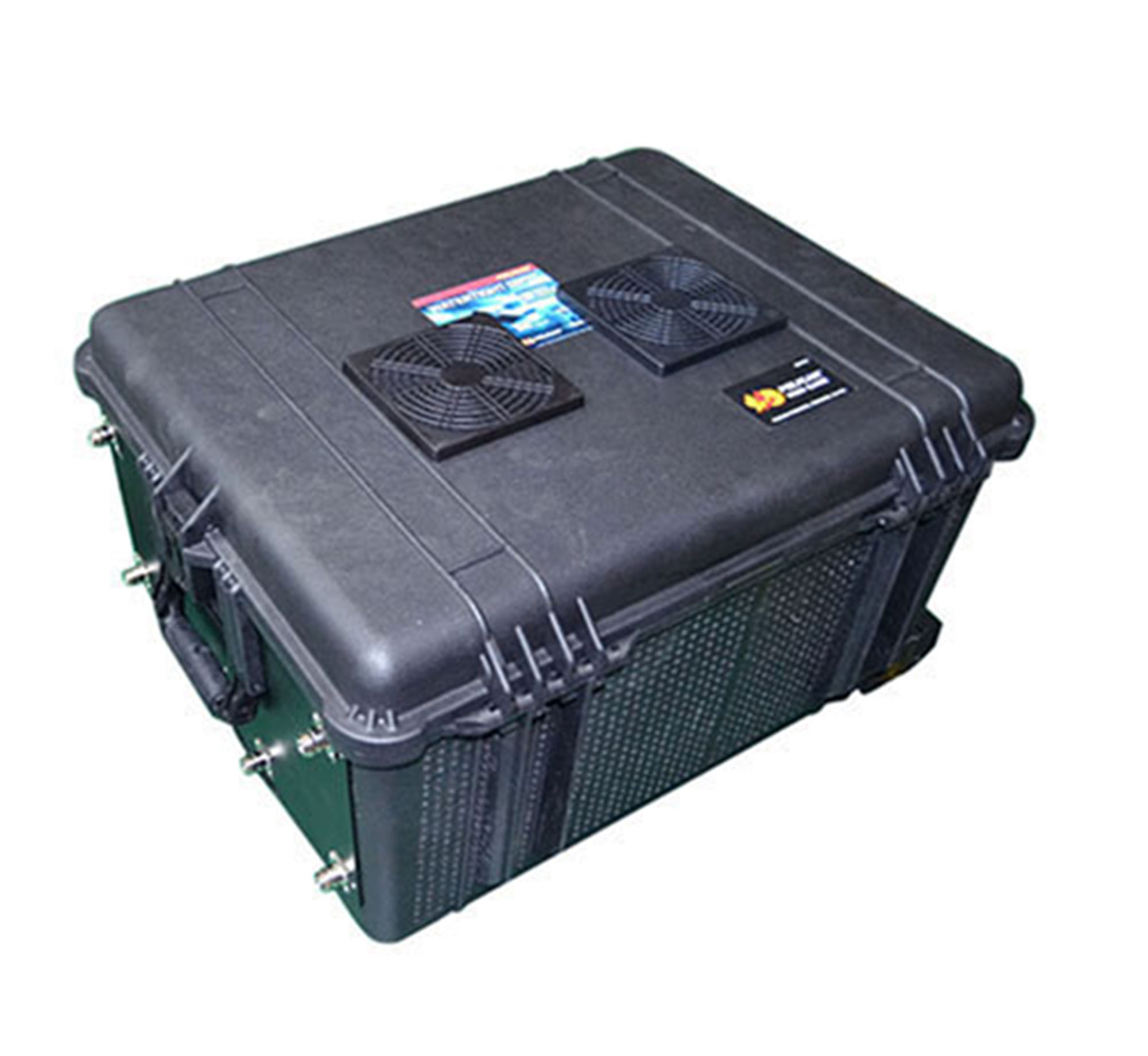

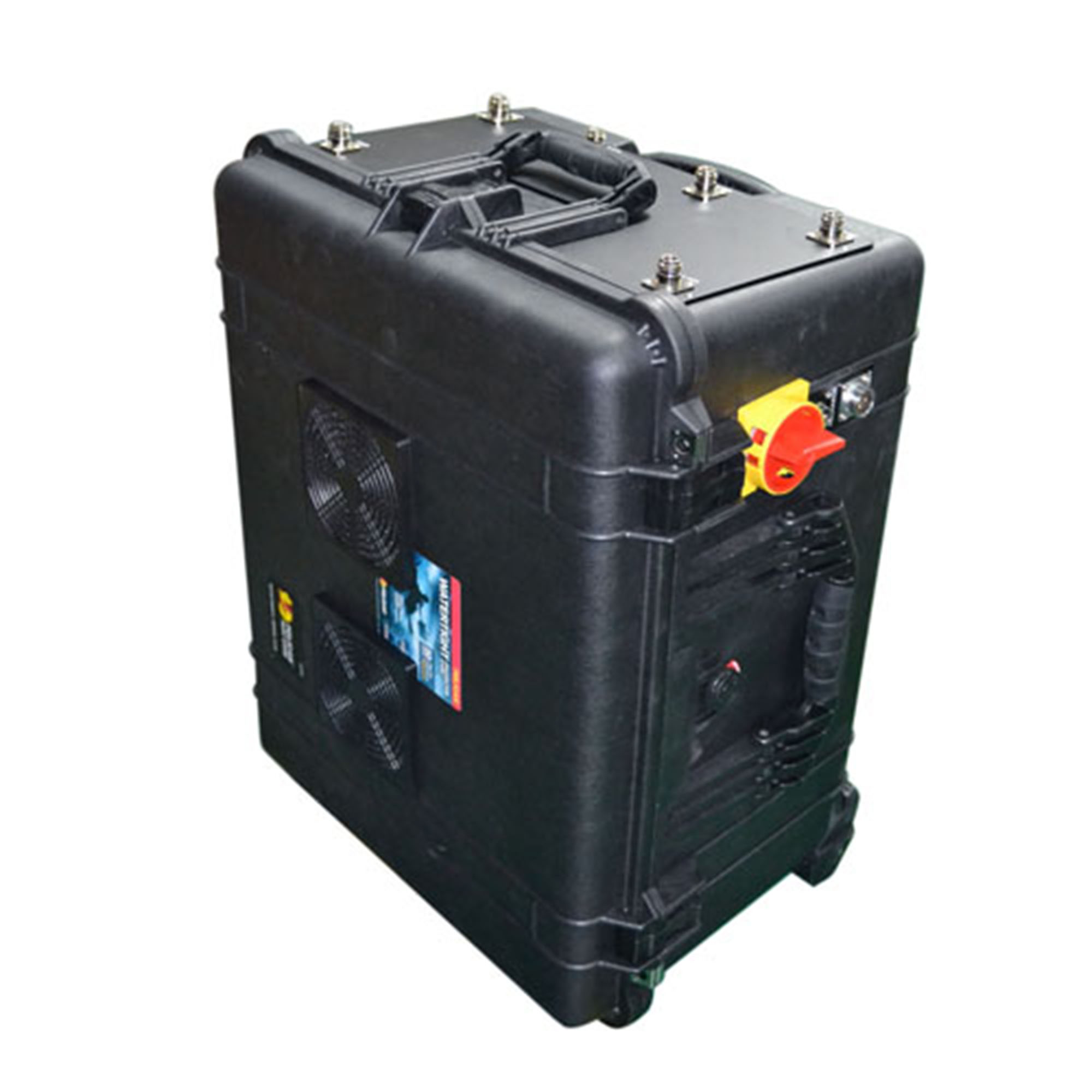

The one is professional 1620 Pelican case portable high power bomb or mobile phone jammer for 4G cellular phones, Cellphone 3G 4GLTE/WIMAX Wi-Fi UHF VHF Signal jammer which are currently presented on the market. Also is Higher RF Power Drone jammer model with 6 antennas 20 cooling fans which bring us a strong jamming ability,Built-in battery can works 1.5 hours .and it can defend 100% drones UAVs, like phantom 4, phantom 3 professional, advanced, standard series, inspire series.

Basic Specifications:
Jam Signal Type：
1: mobile phone 3G/2G GSM CDMA DCS 4G LTE + Wi-Fi 2.4G signals
2: mobile phone 3G/2G GSM CDMA DCS 4G LTE +GPSL1 signals
3: Remote control Bomb Signals 80-700 MHz
4.Drone UAVS RC2.4G+RC5.8G+GPSL1L2L5+RC433 868 912 MHz
Output power: total 300W, 50W each band
Jam radius: 200-400 meters (GPS signal for 1500m)
Power supply: 110 or 240V AC to 27V DC
Cooling system: high-efficiency aluminum alloy radiator+ 20X cooling fans
Working time: not-stop working (built-in AC power 27V DC and battery 27V56Ah working 1.5 hours)
Product size:Pelican case 1620: 630*500*350mm (not include antenna)
Product weight: approx 56kg (for Omni antennas)
Package contents: jammer host x 1, battery charge x 1, antenna x6

Advantages:
★Output power total 300W, you can choose high-gain 5-10 dBi Omni or panel directional antennas, shielding 200-400m, still depends on the strength signal in given area
★Each unit can jam up to 6 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0)

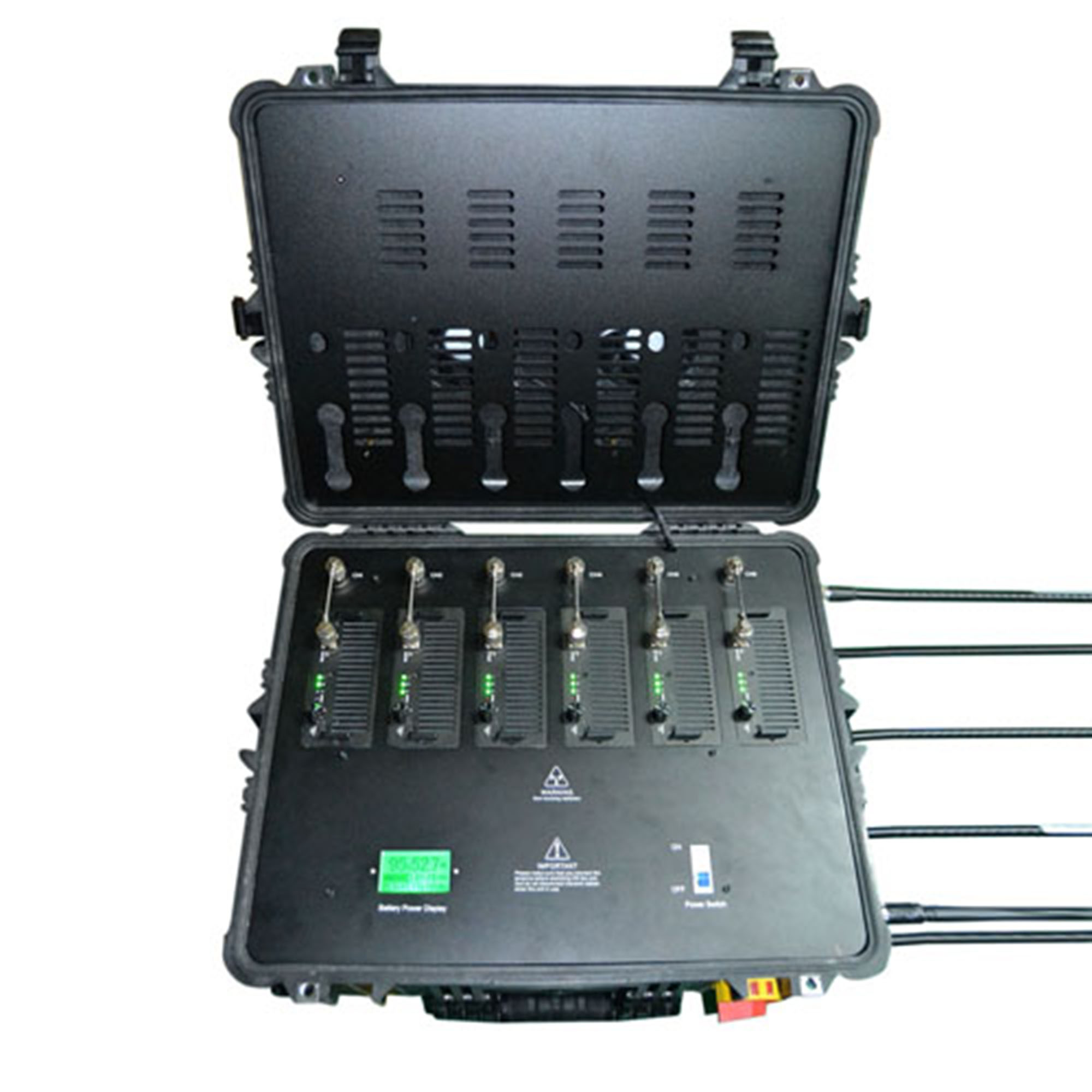

★ Each module is designed with five indication lights, to show power , Run and Alarm (Perfect VSWR Alarm system ,fully protected circuit in case of disconnection of antennas.)
★100% safe VSWR over protection (isolator) for each modular
★Big aluminum alloy shell and 20 pieces cooling fans, not-stop to work.
★With Pelican case 1620, easily carry out
★Built-in battery 27V/56Ah continue working 1.5 hours, battery power and charger station display via LED screen
★Selection of antennas to provide more flexibility regarding jamming coverage

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	CDMA or GSM	850-894 or 925-960MHz	47dBm/50W
2	PCS or DCS	1920-1990 or 1805-1880MHz	47dBm/50W
3	3G	2110-2170MHz	47dBm/50W
4	4G LTE 2600	2500-2690 MHz	47dBm/50W
5	4G LTE 700	700-803 or 790-862MHz	47dBm/50W
6	Wi-Fi 2.4G	2400-2500MHz	47dBm/50W
Power supply: AC adapter 50 to 60Hz, (110 or 240-27V DC) Battery :27 V56Ah
Dimensions: 630500350mm (not include antenna)
Packing size: 800 x 700 x 600mm Net weight: 50kg Gross weight: 50 + 6 antennas =56kg Working temperature: -30 to 60°C
Total power: 300W Shielding radius: (200-400) meters At-75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º
Panel directional antenna: Dimensions: 21x18x5cm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 60-90º V: 20-30º
Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	CDMA or GSM	850-894 or 925-960MHz	47dBm/50W
2	PCS or DCS	1920-1990 or 1805-1880MHz	47dBm/50W
3	3G	2110-2170MHz	47dBm/50W
4	4G LTE 2600	2500-2690 MHz	47dBm/50W
5	4G LTE 700	700-803 or 790-862MHz	47dBm/50W
6	GPSL1	1570-1610 0MHz	47dBm/50W
Power supply: AC adapter 50 to 60Hz, (110 or 240-27V DC) Battery :27 V56Ah
Dimensions: 630500350mm (not include antenna)
Packing size: 800 x 700 x 600mm Net weight: 50kg Gross weight: 50 + 6 antennas =56kg Working temperature: -30 to 60°C
Total power: 300W Shielding radius: (200-400) meters At-75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º
Panel directional antenna: Dimensions: 21x18x5cm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 60-90º V: 20-30º
Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	VHF1	80-130 MHz	47dBm/50W
2	VHF 2	130-190 MHz	47dBm/50W
3	VHF 3	190-300 MHz	47dBm/50W
4	VHF 4	300-400 MHz	47dBm/50W
5	VHF 5	400-500 MHz	47dBm/50W
6	VHF 6	600-700MHz	47dBm/50W
Power supply: AC adapter 50 to 60Hz, (110 or 240-27V DC) Battery :27 V56Ah
Dimensions: 630500350mm (not include antenna)
Packing size: 800 x 700 x 600mm Net weight: 50kg Gross weight: 50 + 6 antennas =56kg Working temperature: -30 to 60°C
Total power: 300W Shielding radius: (200-400) meters At-75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º
Panel directional antenna: Dimensions: 21x18x5cm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 60-90º V: 20-30º
Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º

OEM Customized service:
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi 2.4G,5.8G,3.6GHz, GPSL1-L5 and more.
Silkscreen OEM service can be offered.

Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
