Product Description:

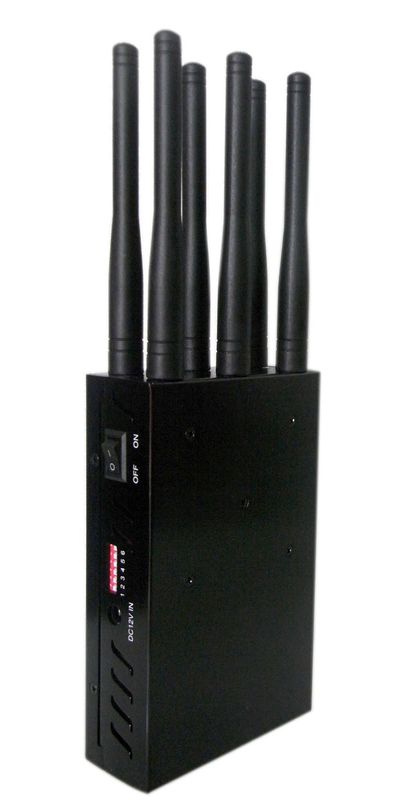

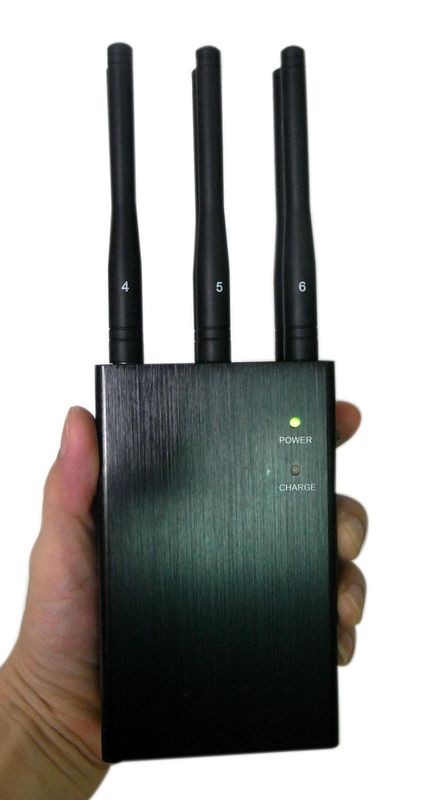

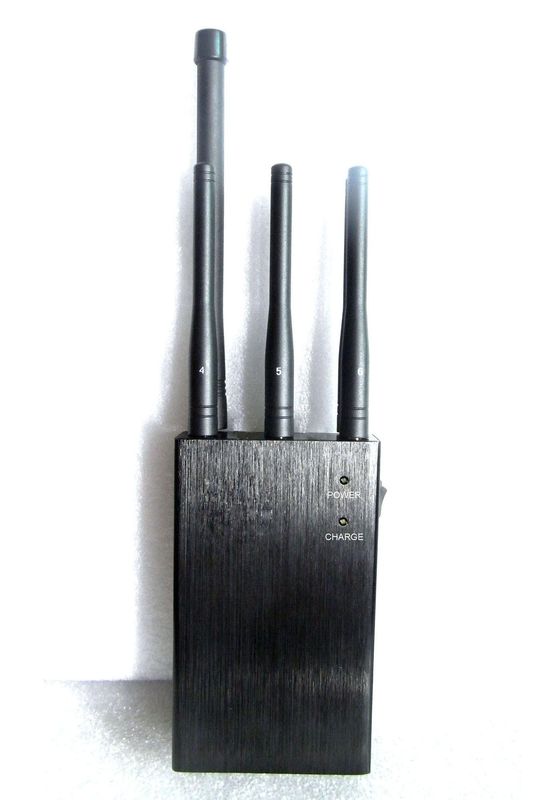

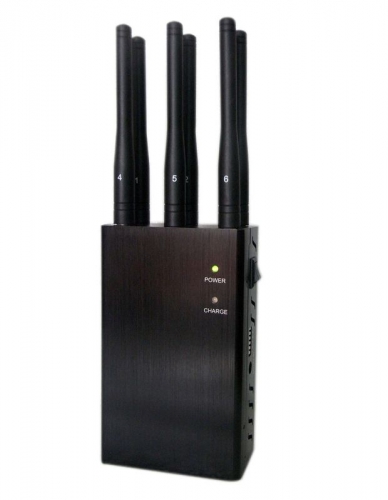

6 Antennas Portable Cell Phone Jammer,jamming all types of Android phones, Tablets, Smart Phones, iPhones, Windows phones etc. that use 2G, 3G, 4G, GPS L1-L5, LOJACK, or Remote Control 315Mhz 433MHz and Bluetooth WIFI wireless signals popular in 2013 and years coming
Basic Specifications:
Output Power：Total 3W，0.5W each band
Jam Radius：5-20meters
Power Supply：AC110-240V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 1 cooling fan
Working Time：Continue working 1.5 Hours
Product Size：126x76x35mm (not include antenna),
Product Weight: appr.0.8kg
Package Contents：Jammer Host x 1, AC Charger x 1, Omni-antenna x6, DC12V car charger x1
Advantages:
★6 Bands 3.0W with Ni-Mh battery 4700Mah, Working 1.5 Hours Support use while battery charging.
★Shielding radius: (2-20) meters at -75dBm with high gain omni antennas

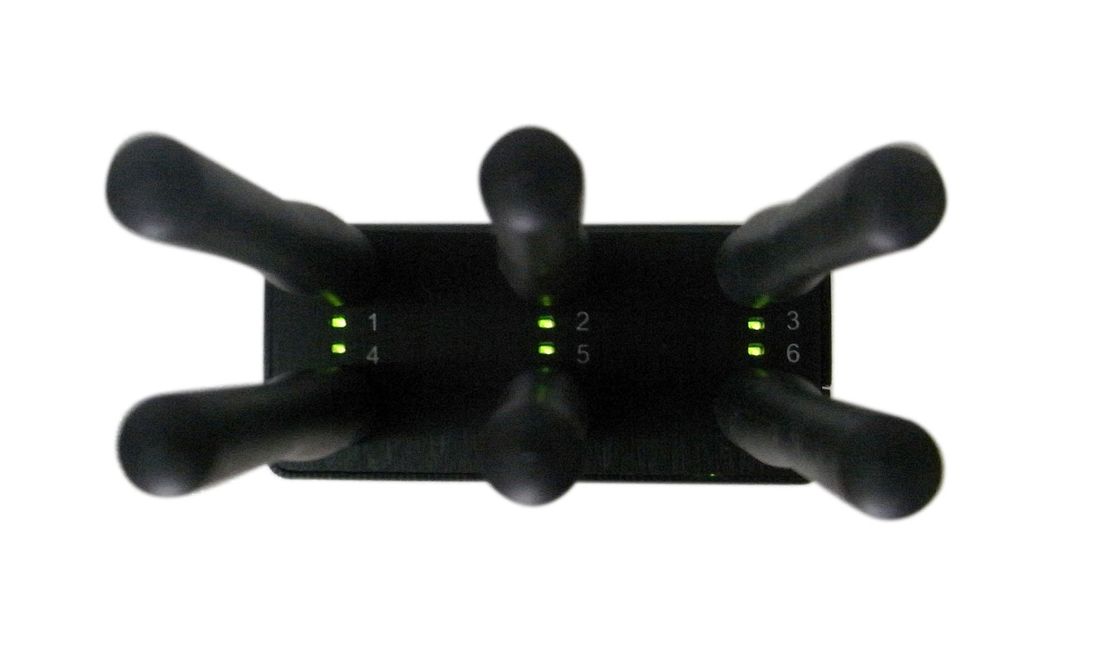

★With DIP switch, separate switch for each band, accompanied with a working LED light
★Could be used in car directly, with car charger and AC charger
★Inside cooling fans and Bigger heatsink design ensure the device to work continuously
| Key Technical specifications : JAM-P6L |
|
Channel
|
Output port
|
Frequency range
|
Average out-putting power
|
|
1
|
LoJack
|
167-175MHz
|
27dBm/0.5W
|
|
2
|
DCS or PCS
|
1805-1880 or 1920-1990MHz
|
27dBm/0.5W
|
|
3
|
4G Wimax
|
2500-2690 or 2300-2400MHz
|
27dBm/0.5W
|
|
4
|
CDMA or GSM
|
851-894 or 925-960MHz
|
27dBm/0.5W
|
|
5
|
GPSL1
|
1570-1580MHz
|
27dBm/0.5W
|
|
6
|
3G
|
2110-2170MHz
|
27dBm/0.5W
|
|
Power supply: AC adapter 50 to 60Hz, (110-240V AC to 12V DC) Car Charger DC12V
|
|
Dimensions: (length, width, height) 126x76x35mm (not include antenna)
|
|
Packing size: 220x202x65mm Net weight: 0.5kg Gross weight: 0.8kg
|
|
Total power: 3.0W
Shielding radius: (5-20) meters at -75dBm,Still depends on the strength signal in given area
Built-in battery:7.4V/4700mAh,Continue working: more than 1.5+ hours
|
|
Warranty: one year from delivery date
|
|
OEM Customized service:
Customized for special frequency band , GPSL2 L3 L4,Wireless Camera 1.2GHz,4G1700MHz, etc
Silkscreen OEM service can be offered
Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
