| Key Technical specifications : | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 850-894 or 925-960MHz | 50dBm/100W |
| 2 | PCS or DCS | 1920-1990 or 1805-1880MHz | 47dBm/50W |
| 3 | 3G | 2110-2170MHz | 47dBm/50W |
| 4 | 4G LTE 2600 | 2500-2690 MHz | 47dBm/50W |
| 5 | 4G LTE 700 | 700-803 or 790-862MHz | 50dBm/100W |
| 6 | Wi-Fi 2.4G+4G2300 | 2345-2500MHz | 47dBm/50W |
| The below frequencies you can instead of above one to combined 6 bands | |||
| Option |
Wi-Fi 5.2G | 5100-5500MHz | 47dBm/50W |
| Wi-Fi 5.8G | 5500-5580MHz | 47dBm/50W | |
| Wi-Fi 3.6G | 3500-3600MHz | 47dBm/50W | |
| GPSL1 | 1570-1580MHz | 47dBm/50W | |
| GPSL2+L5 | 1170-1280MHz | 47dBm/50W | |
| LoJack and XM radio | 167-175MHz | 47dBm/50W | |
| VHF | 130-174MHz | 47dBm/50W | |
| UHF | 400-470MHz | 47dBm/50W | |
| UHF2 | 190-300MHz | 47dBm/50W | |
| UHF3 | 300-400MHz | 47dBm/50W | |
| 4G1 LTE 850 | 790-862MHz | 50dBm/100W | |
| GSM | 925-960MHz | 47dBm/50W | |
| DCS | 1805-1880MHz | 47dBm/50W | |

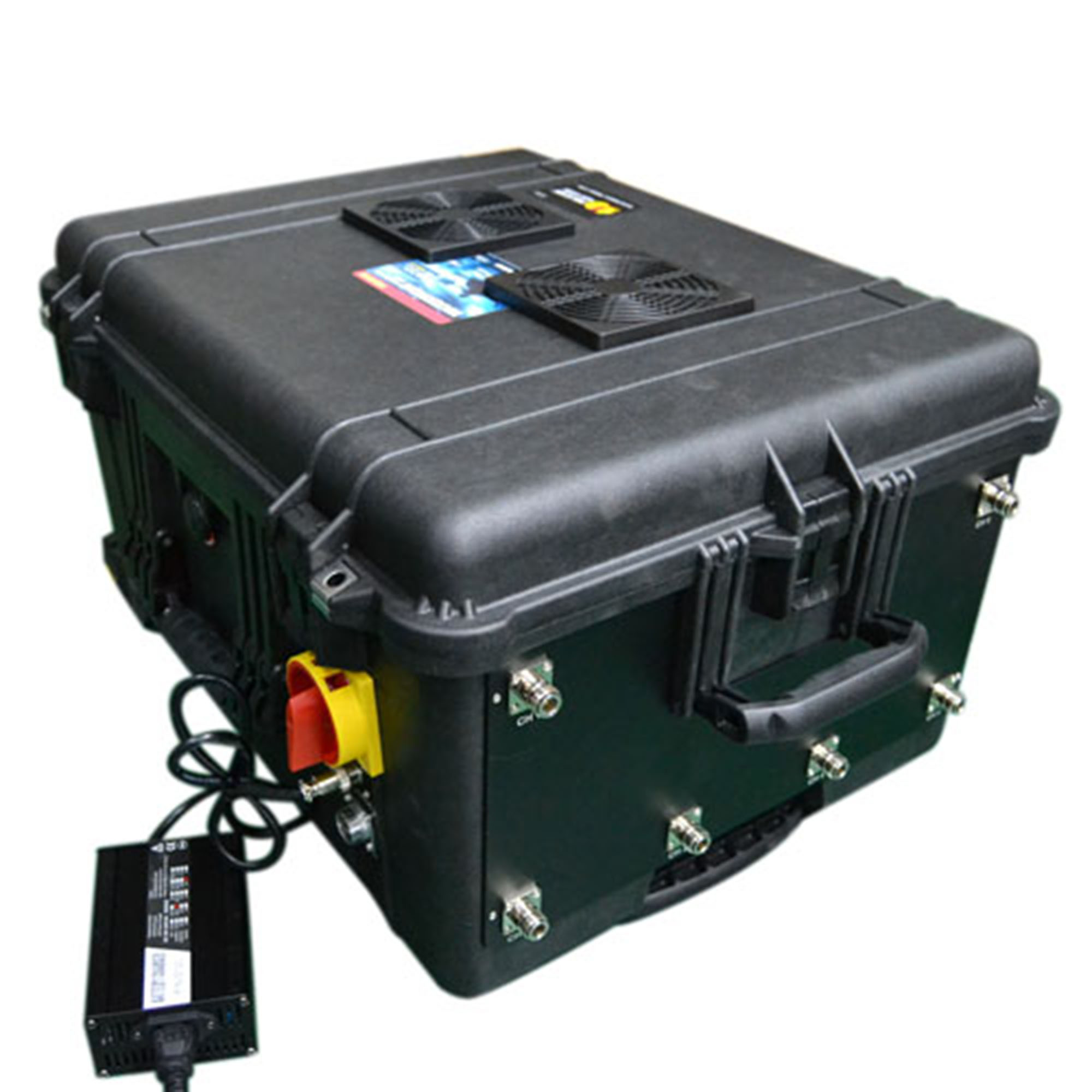

| Power supply: AC adapter 50 to 60Hz, (110 AC or 240-27V DC) Battery: 27V/56Ah |
|||
| Dimensions: (L) 630 * (W) 500 * (H) 350mm (not include antenna) | |||
| Packing size: 800 x 700 x 600mm Net weight: 50kg Gross weight: 50 + 6kg antennas =56kg Working temperature: -30 to 60°C |
|||
| Total power: 400W Shielding radius: (50-350) meters at 75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal |
|||
| Warranty: one year from delivery date | |||
