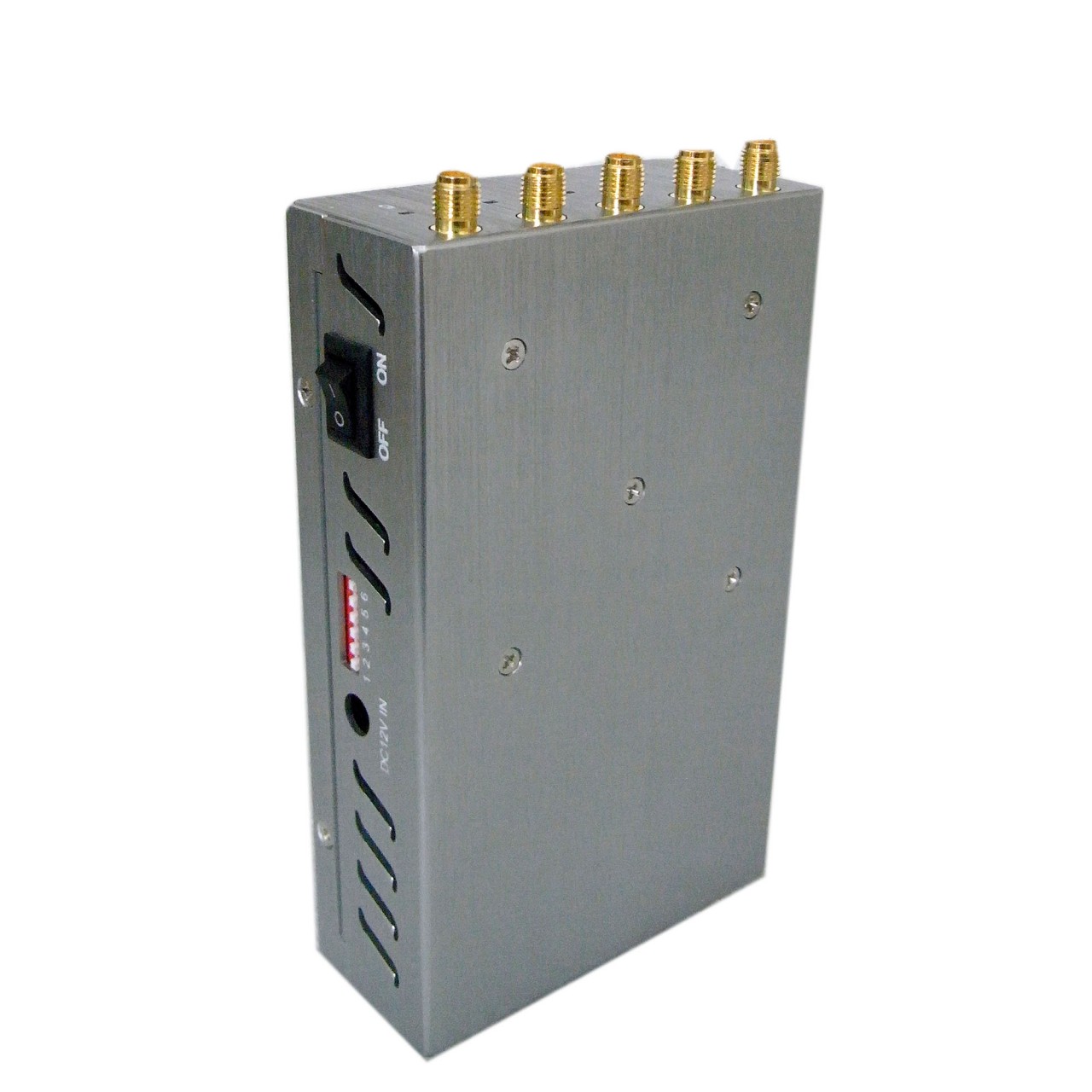

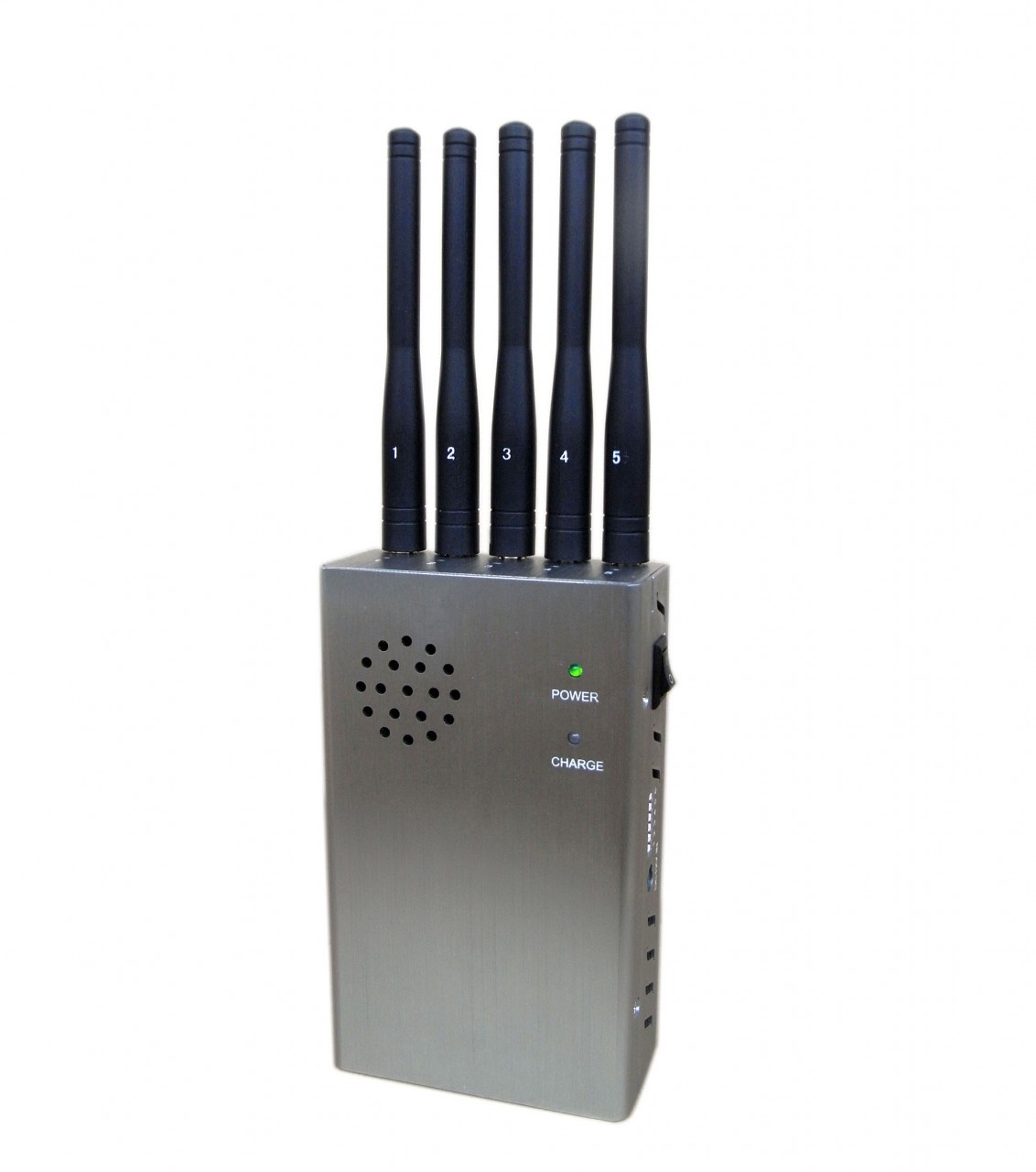

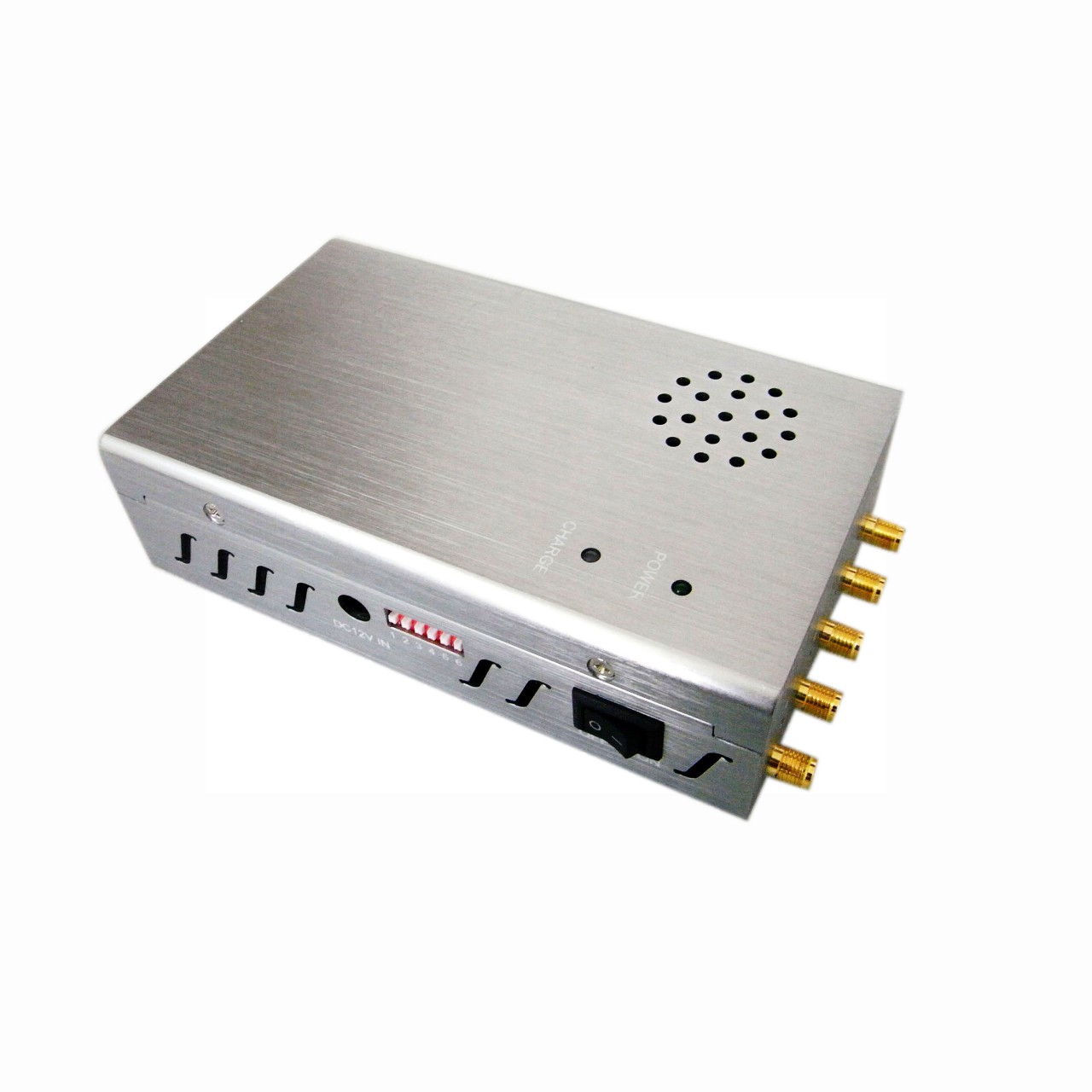

5 Antenna Portable Mobile Phone Jammer ,GPS Jammer and WiFi Jammer

Item No.: JAM-P5A
This 5 Antenna Portable Mobile Phone Jammer ,GPS Jammer and WiFi Jammer designed to work for multiple frequency range including CDMA/GSM 850-960MHz, DCS/PCS 1805-1990MHz, 3G 2110-2170MHz, WiFi 2400-2500MHz, GPSL1 1570-1580MHz.
Description

Product Description:
This 5 Antenna Portable Mobile Phone Jammer ,GPS Jammer and WiFi Jammer designed to work for multiple frequency range including CDMA/GSM 850-960MHz, DCS/PCS 1805-1990MHz, 3G 2110-2170MHz, WiFi 2400-2500MHz, GPSL1 1570-1580MHz.

Basic Specifications:

Output Power:Total 2.5W,0.5W each band

Jam Radius:2-20meters

Power Supply:AC110-240V to DC12V

Cooling System:High efficiency aluminum alloy radiator, Build-in 1 cooling fan

Working Time:Continue working 1.5 Hours

Product Size:126x76x35mm (not include antenna),

Product Weight: appr.0.7kg

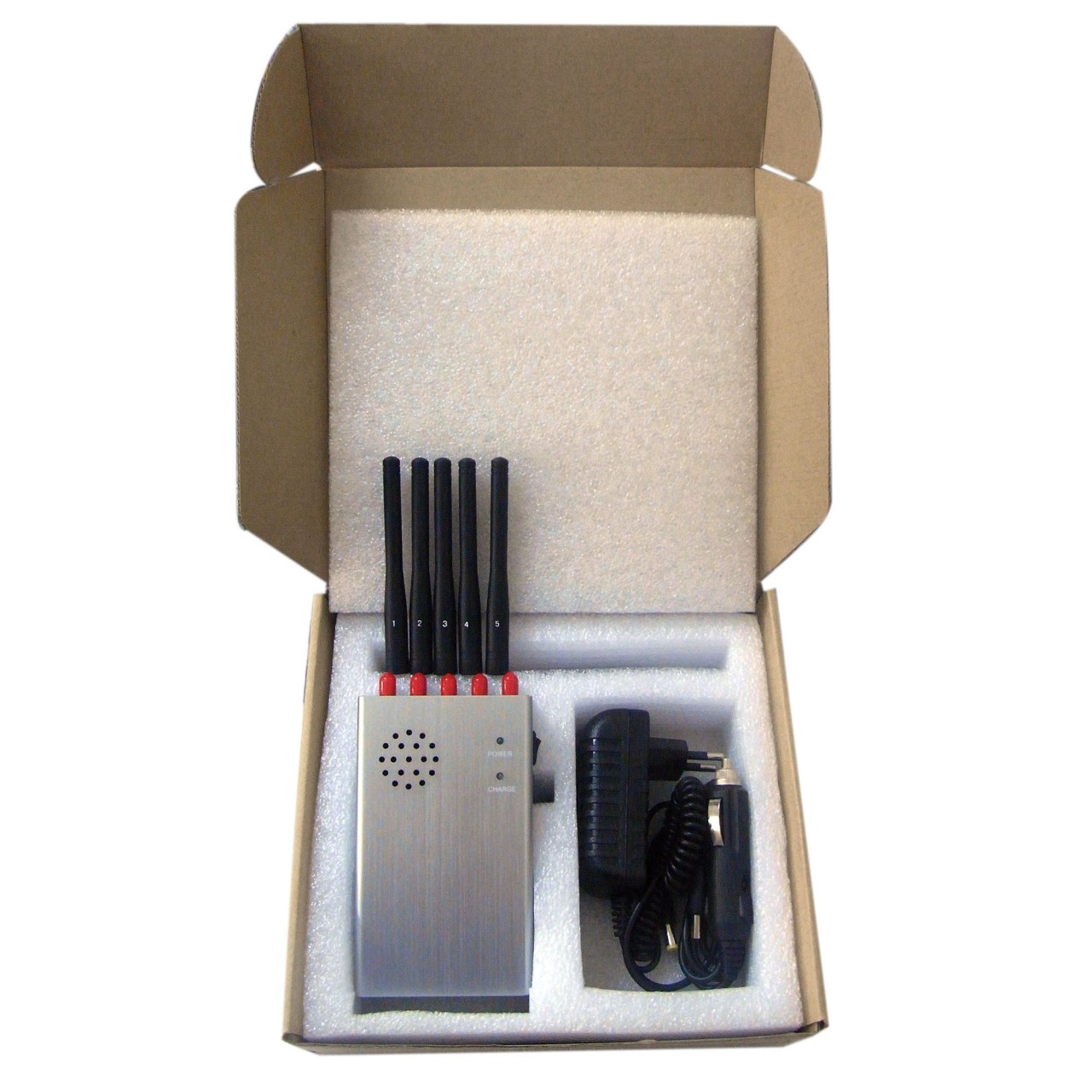

Package Contents:Jammer Host x 1, AC Charger x 1, Omni-antenna x5, DC12V car charger x1


Advantages:

★5 Bands 3.0W with Ni-Mh battery 4700Mah, Working 1.5 Hours Support use while battery charging.

★Shielding radius: (2-20) meters at -75dBm with high gain omni antennas

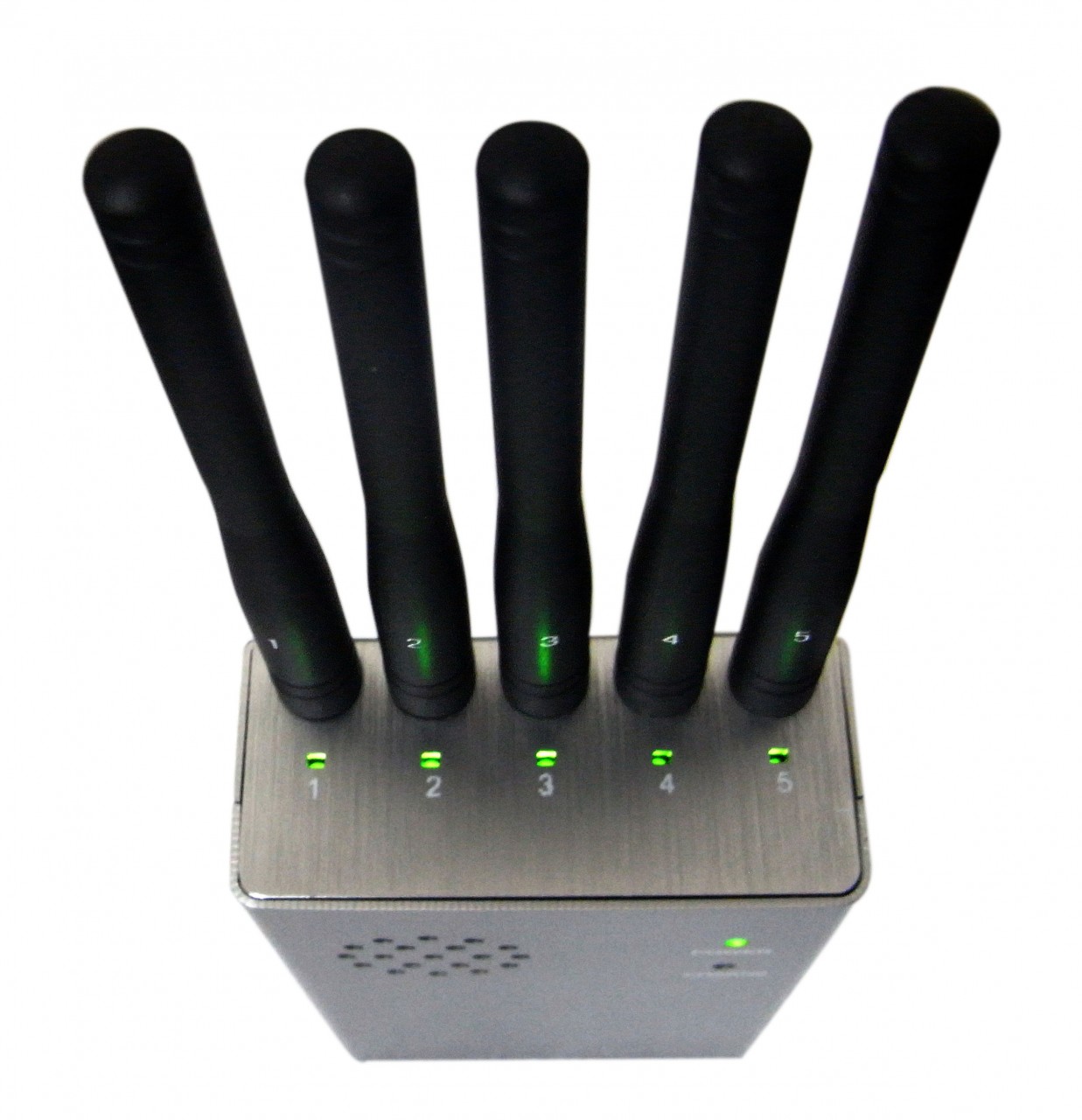

★With DIP switch, separate switch for each band, accompanied with a working LED light

★Could be used in car directly, with car charger and AC charger

★Inside cooling fans and Bigger heatsink design ensure the device to work continuously


Key Technical specifications : JAM-P5A

Channel

Output port

Frequency range

Average out-putting power

1

CDMA Or GSM

851-894 Or 925-960 MHz

27dBm/0.5W

2

DCS or PCS



1805-1880 or 1920-1990MHz

27dBm/0.5W

3

3G

2110-2170MHz

27dBm/0.5W

4

GPSL1

1570-1580MHz

27dBm/0.5W

5



WIFI2.4G

2400-2500MHz

27dBm/0.5W



Power supply: AC adapter 50 to 60Hz, (110-240V AC to 12V DC)     Car Charger DC12V

Dimensions: (length, width, height) 126x76x35mm  (not include antenna)

Packing size: 220x202x65mm          Net weight: 0.5kg        Gross weight: 0.7kg

Total power: 2.5W
Shielding radius: (2-20) meters at -75dBm,Still depends on the strength signal in given area
Built-in battery:7.4V/4700mAh,Continue working: more than 1.5+ hours

Warranty: one year from delivery date


OEM Customized service:
Customized for special frequency band , GPSL2 L3 L4,Wireless Camera 1.2GHz,4G1700MHz, etc
Silkscreen OEM service can be offered

Applications:
o    It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
