Product Description:

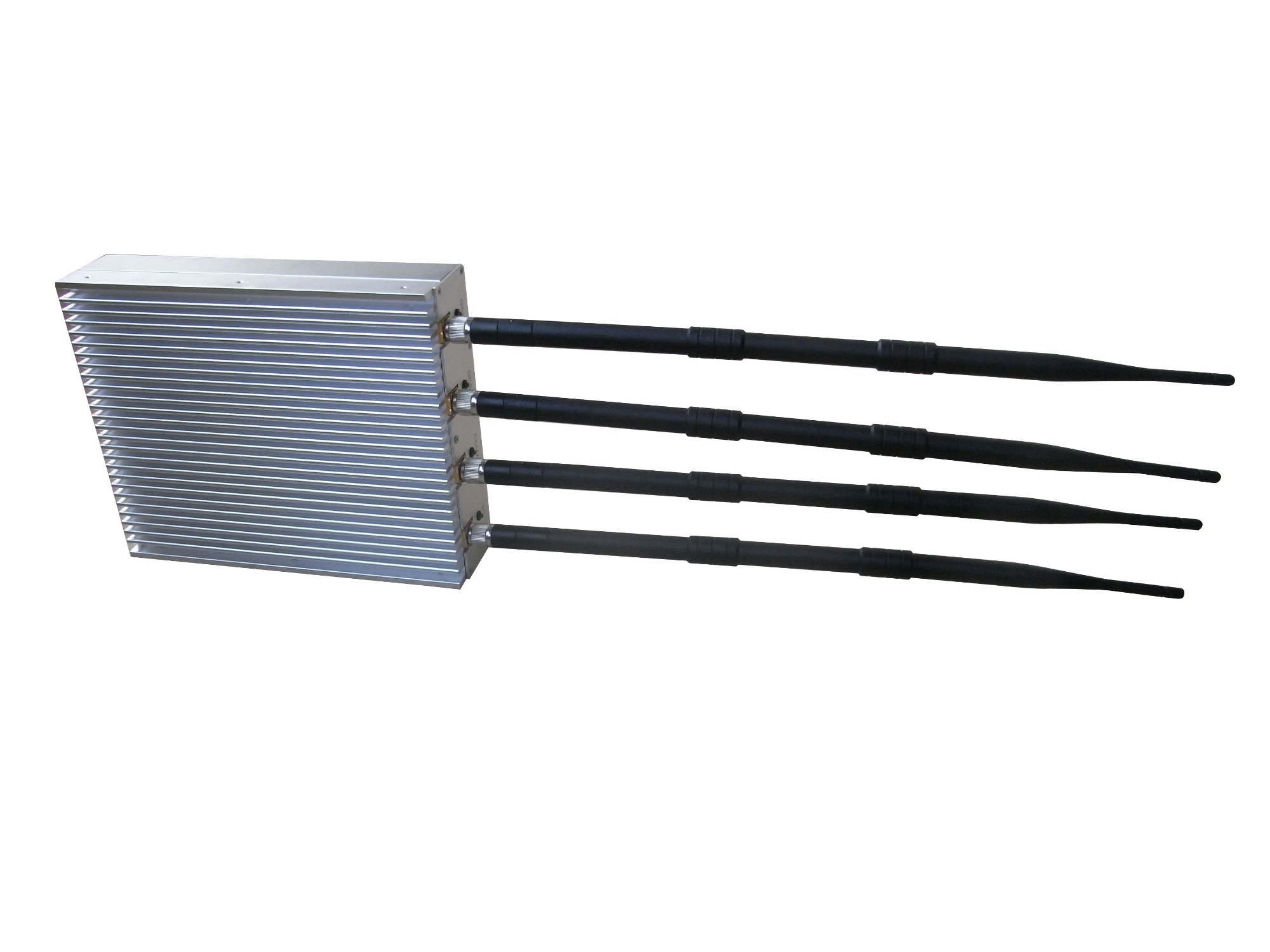

This 4 antenna high power 3G phone & Wi-Fi jammer with outer detachable power supply is designed with 20W high output power, stronger and longer omnidirectional antennas and also the powerful outer detachable power supply so that the jamming distance is up to 50 meters depending on the signal strength in the given area to cut off the signals of CDMA, GSM, DCS, PCS, 3G and Wi-Fi signals at the same time, besides high quality cooling system with good cooling fan inside enables nonstop 24/7 working goal easily as also designed with stable capability.
Advantage:
★High output power, 3-5W each band, jamming up to 50m.
★Longer antenna has higher gain to ensure jammer effect

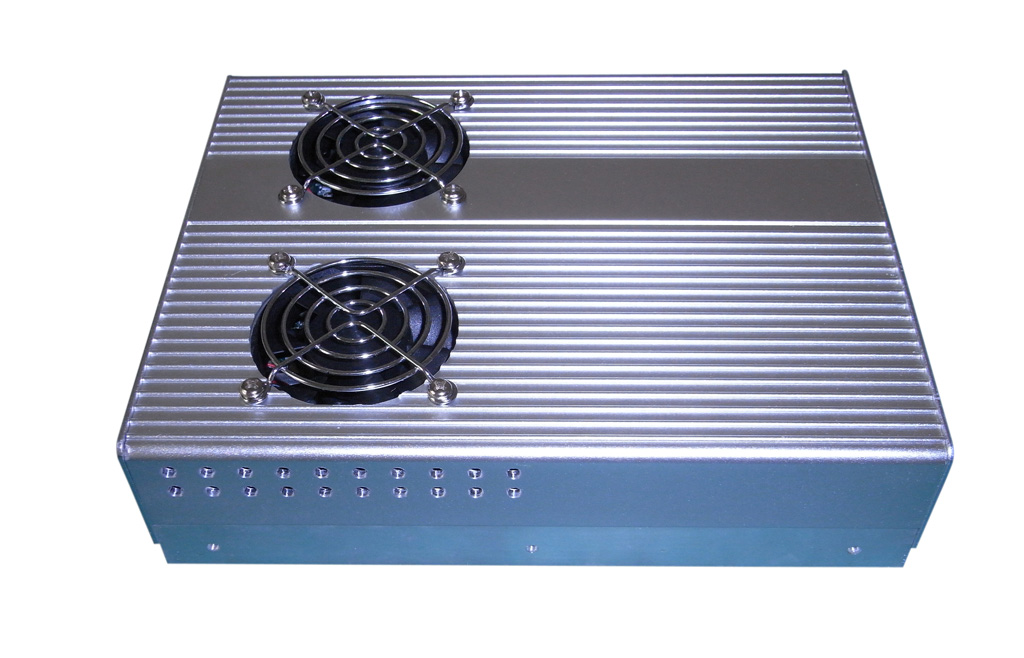

★Build-in two cooling fans, low noise
★Working time: without the time limit, may continue to work
Package contents:
1pc desktop Wi-Fi signal jammer

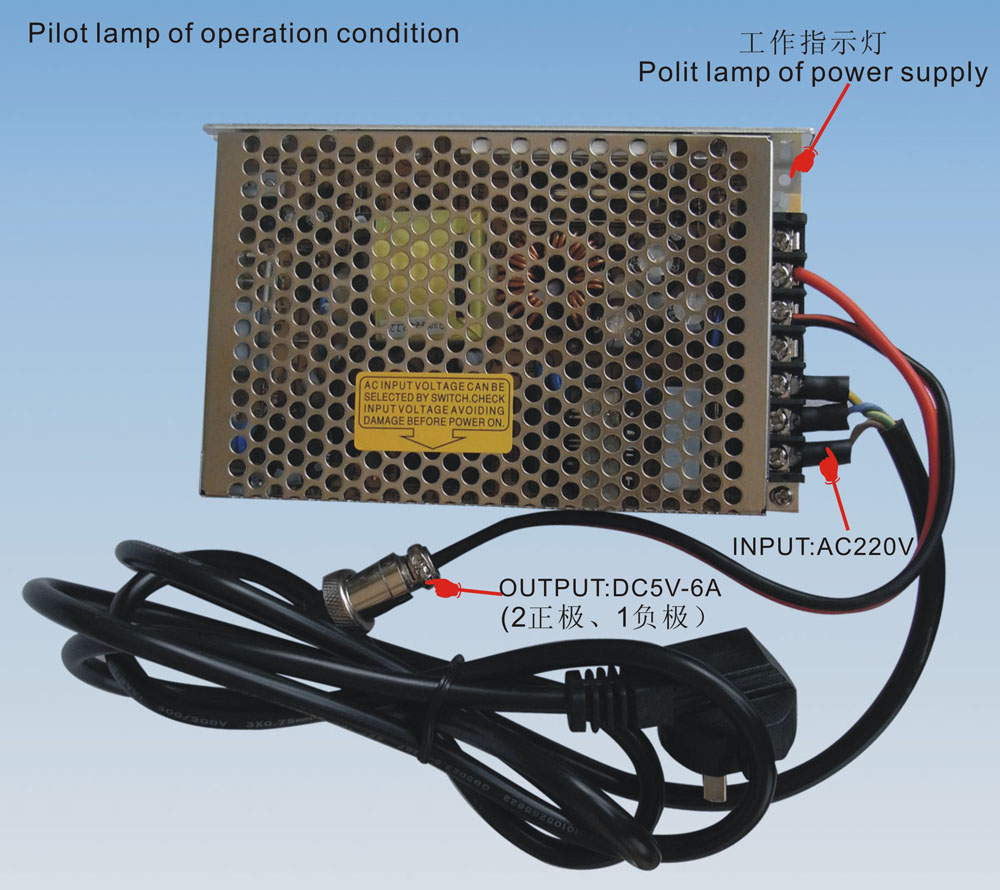

1pc AC outer detachable power supply
1pc antennasx4
| Key Technical specifications : JAM-440S | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | WIFI2.4G1 | 2400-2450MHz | 35dbm / 3W |
| 2 | CDMA/GSM | 851-960MHz | 38dbm / 6W |
| 3 | DCS/PCS | 1805-1990MHz | 37dbm / 5W |
| 4 | 3G | 2110-2170MHz | 37dbm / 5W |
| The below frequencies you can instead of above one to combined 14 bands | |||
| Option | 4G1 LTE | 700-803MHz | 38dbm / 6W |
| 4G WIMAX | 2500-2690 MHz | 35dbm / 3W | |
| GPS | 1575MHz | 37dbm / 5W | |
| UHF | 400-470MHz | 38dbm / 6W | |
| VHF | 135-174MHz | 38dbm / 6W | |
| Power supply: AC adapter 50 to 60Hz, (AC110-240V-DC5V) | |||
| Dimension: (width, height, length) 210 x 50 x 170mm | |||
| Package Size: 49*29*15cm N.W:3.0kg G.W:4.0kg | |||
| Total Power:20W Shielding Radius: (10-50) meters@-75dBm. Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal. |
|||
| Warranty: One year from delivery date. | |||
OEM customized service:
Frequency spreading can be option: cellphone UHF/VHF walkie-talkie signal,GPSL1-L5 and more
Silkscreen OEM service can be offered.
Application:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
