Name: 600 Watt High Power Prison Outdoor Prison Waterproof Wireless signal Jammer Jamming up to 500 M
Brand: Cellphone Jammer, Wireless Signal Jammer, Mobile Phone Jammer,GPS Jammer, Wifi Jammer, Prison Jammer , Military Jammer, Cellphone Jammer manufacturer from China!
SKU: 1507I6
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 1507I6

Top high power waterproof outdoor using wireless signal Jammers for Mobile Phone signals is able to disable all mobile phone frequencies CDMA GSM, 2G, 3G, 4G Lte, 4G Low. Also is high RF power Drone Jammer model, it can defend 100% drones UAVs, like Phant

INQUIRY PDF Format

Description

Product Description:
Top high power waterproof outdoor using wireless signal Jammers for Mobile Phone signals is able to disable all mobile phone frequencies CDMA GSM, 2G, 3G, 4G Lte, 4G Low. Also is high RF power Drone Jammer model, it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series, block remote control signal 2.4GHz, 5.8GHz, GPS L1 L2 L3 L4 L5, 433, RC 868 and 912MHz, Jamming range 300-1500 meters.

Basic Specifications:
Jam Signal Type:
1 :Mobile phone 3G/2G GSM CDMA DCS 4GLTE +WIFI2.4G Signals
2: Mobile phone 3G/2G GSM CDMA DCS 4GLTE +GPSL1 Signals
3: Drones UAVs RC2.4G/5.8GHz/433/868/912+GPSL1/L2/L5 Signals
Output Power:Total 600W ,50-100W each band
Jam Radius:300-500 meters (GPS signal for 1500m)
Power Supply:AC110-240V to DC27V

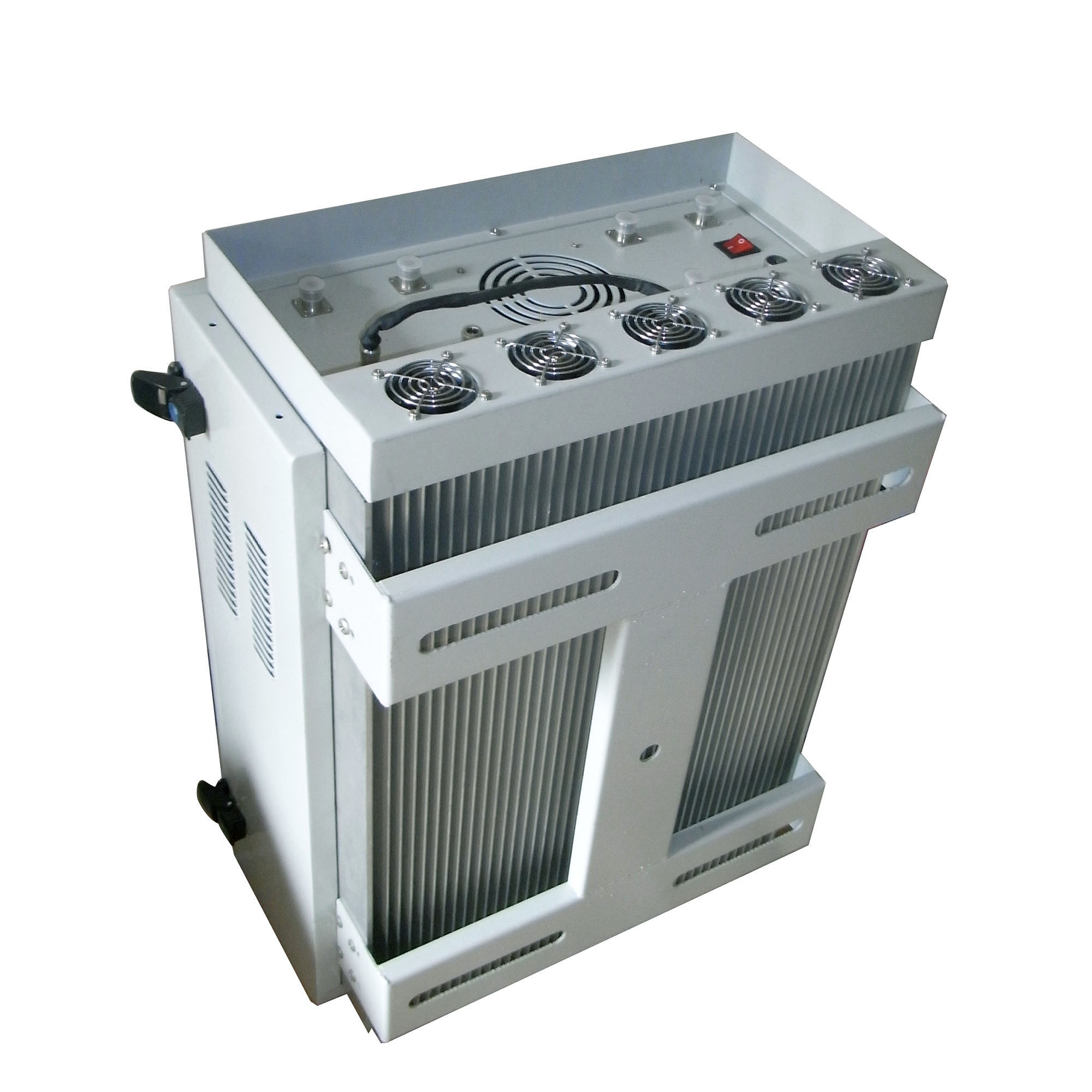

Cooling System:High efficiency aluminum alloy radiator+ 6x cooling fans
Working Time:Not-stop Working
Product Size:740x 510 x 350 mm
Product Weight: appr.65kg (for omni directional antennas)
Package Contents:Jammer Host x 1 , antenna x6, AC Plug x1,6x 2meter 1/2 Cable.

Advantages:
★Output power total 600W, you can choose high gain 5-7dBi Omni or panel directional antennas, shielding 300-500m, still depends on the strength signal in given area
★Each unit can jam up to 6 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0), LED indicator lights display power supply
★100% safe VSWR over protection (isolator) for each modular
★Big aluminum alloy shell and cooling fans, not-stop to work
★Design for outdoor installation, secure design to avoid sabotage

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	CDMA or GSM	851-894 or 925-960MHz	50dBm/100W
2	DCS/PCS	1805-1990MHz	50dBm/100W
3	3G	2110-2170MHz	50dBm/100W
4	4GLTE	700-803 or 790-862MHz	50dBm/100W
5	4G WIMAX	2500-2690 or 2300-2400MHz	50dBm/100W
6	WIFI 2.4G	2345-2500 MHz	50dBm/100W
Power supply: AC adapter 50 to 60Hz, (110 or 240V AC to 27V DC)
Dimensions: 740x510x 350mm
Packing size: 1000700600mm Net weight: 55kg Gross weight: 55kg +10 kg Antennas =65 kg Working temperature: -30 -60 ℃
Total power: 600W Shielding radius: (300-500) meters at -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º
Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	CDMA or GSM	851-894 or 925-960MHz	50dBm/100W
2	DCS/PCS	1805-1990MHz	50dBm/100W
3	3G	2110-2170MHz	50dBm/100W
4	4GLTE	700-803 or 790-862MHz	50dBm/100W
5	4G WIMAX	2500-2690 or 2300-2400MHz	50dBm/100W
6	GPSL1	1570-1610 MHz	47dBm/50W
Power supply: AC adapter 50 to 60Hz, (110 or 240V AC to 27V DC)
Dimensions: 740x510x 350mm
Packing size: 1000700600mm Net weight: 55kg Gross weight: 55kg +10 kg Antennas =65 kg Working temperature: -30 -60 ℃
Total power: 550W Shielding radius: (300-500) meters at -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º
Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	RC2.4G	2400-2500MHz	50dbm /100W
2	RC 868 ,912 and 916	868-916 433MHz	50dbm /100W
3	RC433 434 435 Or 315	430-440 or 433 MHz	47dbm /50W
4	RC5.8G	5725-5850MHz	47dbm /50W
5	GPSL2+L5	1170-1280MHz	47dbm /50W
6	GPSL1 +GlonassL1	1560-1620 MHz	47dbm /50W

Power supply: AC adapter 50 to 60Hz, (110 or 240V AC to 27V DC)
Dimensions: 740x510x 350mm
Packing size: 1000700600mm Net weight: 55kg Gross weight: 55kg +10 kg Antennas =65 kg Working temperature: -30 -60 ℃
Total power: 400W Shielding radius: (300-1500) meters at -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º
Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º

OEM Customized service:
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi 2.4G,5.8G,3.6GHz, GPSL1-L5 and more.
Silkscreen OEM service can be offered.

Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
