Product Description:
The one is One of the High powerful mobile phone jammer which are currently presented on the market With 8 antennas and 150W output power this blocker is able to disable all Europe cell phone frequencies GSM, 2G, 3G, 4G Imax, 4G LTE, Wi-Fi 2.4GHz Professional two-way UHF/VHF radios or GPS or RC in the radius up to 150 meters,With 7 piece Colling fans non-stop working.
Basic Specifications:
Jam Signal Type:JAM-D8-W :Mobile phone 2G+3G+4G +WIFI2.4G +UHF+VHF Signals
Output Power：Total 150W，20-25W each band
Jam Radius：50-150 meters (GPS signal for 500m)
Power Supply：AC110-240V to DC27V
Cooling System：High efficiency aluminum alloy radiator+ 7X cooling fans
Working Time：Not-stop Working
Product Size：550x 238 x 60 mm（not Include Antenna）
Product Weight: appr.10kg ( for normal OMNI antennas)

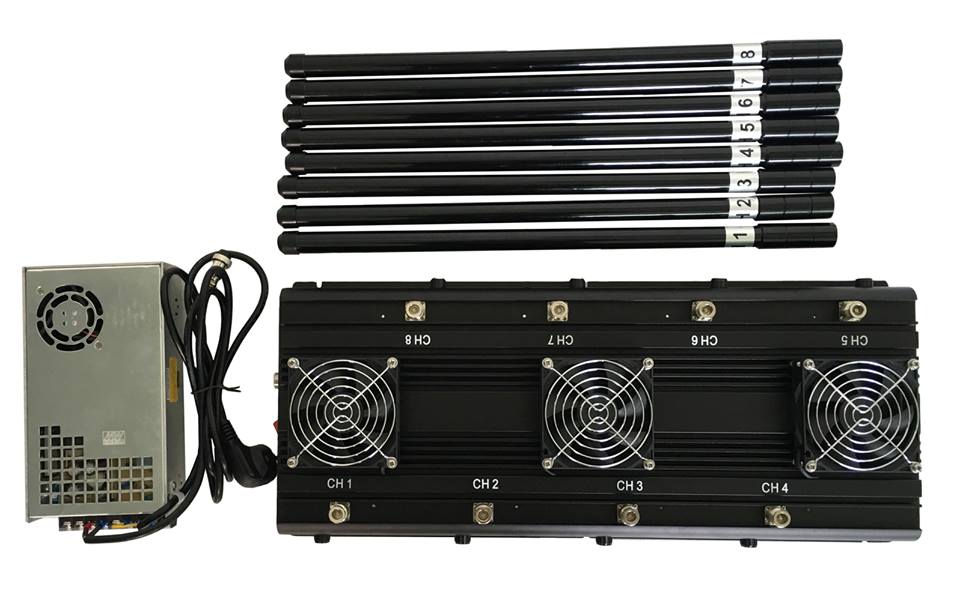

Package Contents：Jammer Host x 1, Adapter x 1, antenna x8,
Advantages:
| Key Technical specifications : JAM-D8-W | |||
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 or 925-960MHz | 44dbm / 25W |
| 2 | DCS/PCS | 1805-1990MHz | 43dbm / 20W |
| 3 | 3G | 2110-2170MHz | 43dbm / 20W |
| 4 | 4GLTE | 700-803 or 790-862MHz | 44dbm / 25W |
| 5 | 4G WIMAX | 2500-2690 or 2300-2400MHz | 43dbm / 20W |
| 6 | WIFI2.4G | 2400-2500MHz | 43dbm / 20W |
| 7 | VHF | 130-174MHz | 44dbm / 25W |
| 8 | UHF | 400-470MHz | 44dbm / 25W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V) | |||
| Dimension: (length, width, height) 550*230*60mm(Not include antenna) | |||
| Package Size: 650 x 440x 200mm N.W:8kg G.W:10kg(Use OMNI antennas) | |||
| Total power:150W Shielding radius: (20-150) meters at -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal |
|||
| Warranty: one year from delivery date | |||
