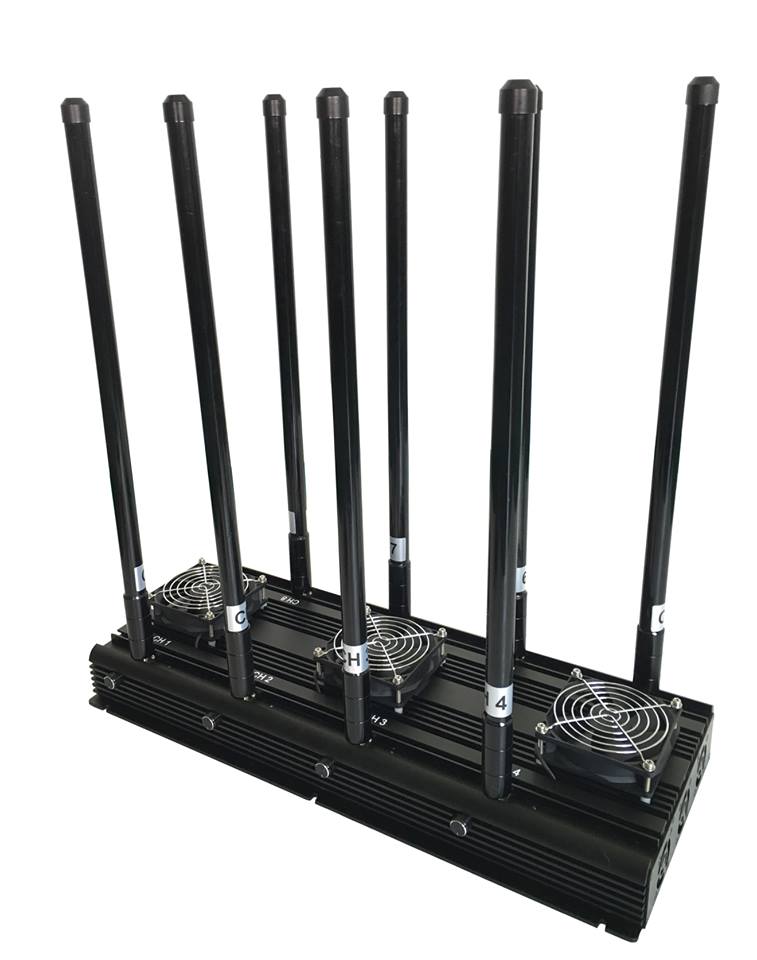

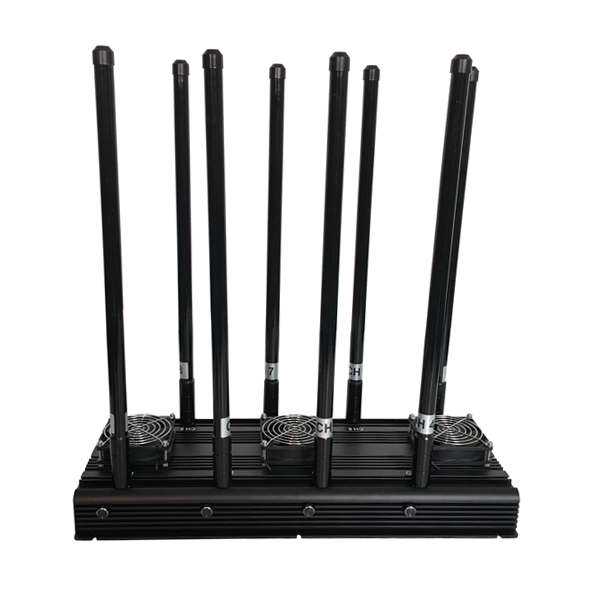

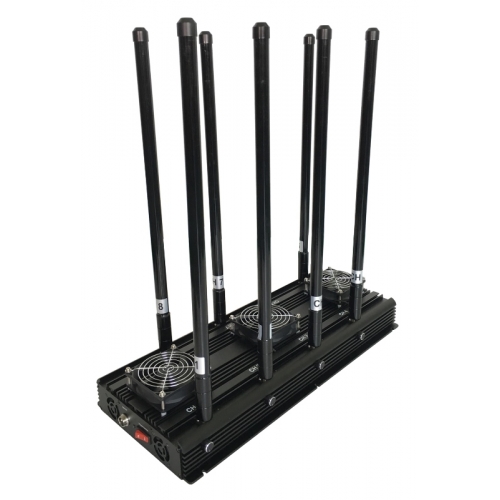

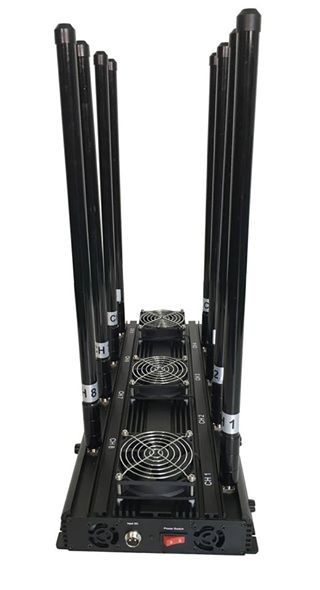

8 Bands UAV Drone Signal Jammer, Block RC2.4G 5.8GHz 433 315 868 916 MHz GPS&GLONASS L1L2 Jammer up to 500m

Item No.: 1701D8-D
One of the hot sell and high powerful UAV Drone jammer which are currently presented on the market. With 8 bands and 135W output power this blocker is able to disable all Cover 100% drones UAVs and Jamming range radius: 100-500 meters.
Description
Product description:
One of the hot sell and high powerful UAV Drone jammer which are currently presented on the market. With 8 bands and 135W output power this blocker is able to disable all Cover 100% drones UAVs and Jamming range radius: 100-500 meters.



Advantages:

★Output power total 135w, You can choose high gain 5-7 dbi OMNI or Panel directional antennas, shielding 10-500m,Still depends on the strength signal in given area.
★Each unit can jam up to 8 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0), LED indicator lights display power supply
★100% safe VSWR over protection (isolator) for each modular
★Good cooling system with Heat sink and 3 big on top fans + 4 x small inside, low noise, not-stop to work.


Key Technical specifications :
Channel Output Port Frequency range Average out-putting power
1 RC2.4G 2400-2500MHz 45dbm/30W
2 RC433 434 435 433 MHz 41dbm/15W
3 RC315 312 315MHz 41dbm/15W
4 GPSL1 and Glonass L1 1560-1620MHz 40dbm/10W
5 GPSL2 1200-1280MHz 44dbm/10W
6 GPSL5 1170-1200MHz 40dbm/10W
7 RC868, 912 and 916 868-916MHz 44dbm/25W
8 RC5.8G 5725-5850MHz 40dbm/10W
The below frequencies you can instead of above one to combined 8 bands

Option
WIFI5.2G 5100-5500MHz 40dbm/10W
Wi-Fi 5.8G 5500-5580MHz 40dbm/10W
WiFi3.6G 3500-3600MHz 40dbm/10W
CDMA&GSM 850-960MHz 44dbm/25W
DCS&PCS 1805-1990MHz 41dbm/15W
3G 2110-2170MHz 41dbm/15W
4G LTE 2600 2500-2690 MHz 40dbm/10W
4G LTE 700 or 800 725-826 MHz 44dbm/25W
Wi-Fi 2.4G+4G2300 2345-2500MHz 40dbm/10W
VHF 130-174MHz 44dbm/25W
UHF 400-470MHz 44dbm/25W
LOJACK& XM radio 167-175MHz 44dbm/25W
UHF2 190-300MHz 44dbm/25W
UHF3 300-400MHz 44dbm/25W
4G1 LTE 1700 1710-1780MHz 41dbm/15W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V)
Dimension: (length, width, height ) 550*230*60mm(Not include antenna)
Package size: 600 x 350 x 95mm
N.W: 6kg G.W:6Kg + 8kg antennas =10kg
Working temperature: -30~60
Total power:135W
Shielding radius: (100-500) meters at -75dBm
Still depends on the strength signal in given area
Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date

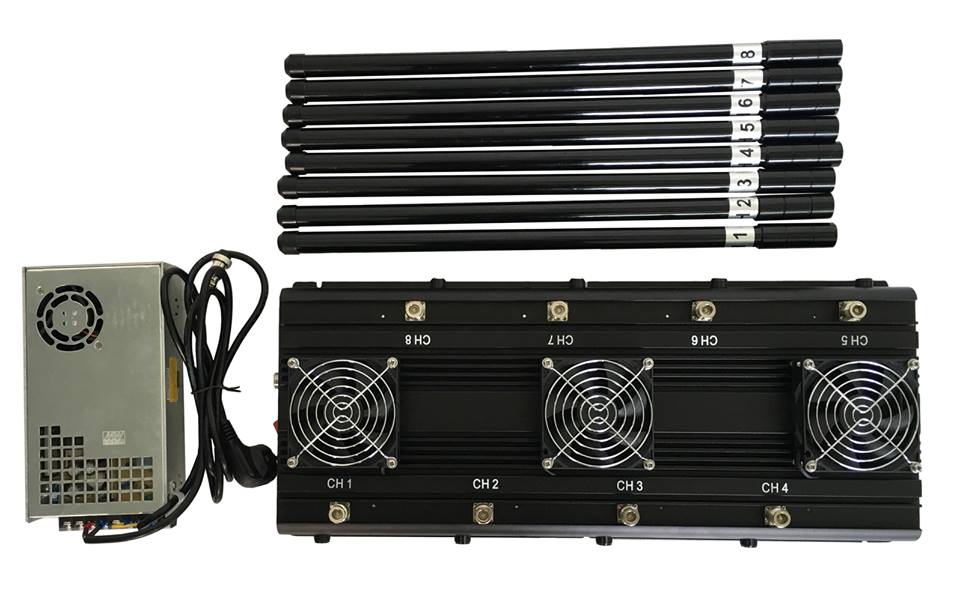

Package contents:
1pc desktop jammer
1pc AC 110 or 220V DC 12V or 27V 20A power supplier
8pcs antennas omni 500mm long

Additional options:
- Directional external patch panel antennas
- Omni car magnetic antenna bases
- External battery that can work 1 hour (24V/20AH LiFePo4) + charger
- DC 12V to AC 220V inverter 2000W, to use normal car battery DC 12/80-100AH

OEM customized service:
All 8 Frequency modules we can mix very flexible
Options: Remote/alarm control 315MHz, 433MHz, 920-965MHz, GPS L1 L2 L3 L4 L5, LoJack 173MHz, 4G 700-800MHz (USA), UHF, VHF, SAT satellite phones 1520-1670MHz and more. Any combinations and customizations are possible, just send us your inquiry and we will give you our recommendation.

Applications:
Device can be used to block the UAV Drone signal in the churches, museums, movie theatres or during the important conference in a meeting room to avoid the leakage of secure information, in classrooms during the exams, courts, hospitals, banks, recording studios or other crowded places where the usage of mobile phone is prohibited.
