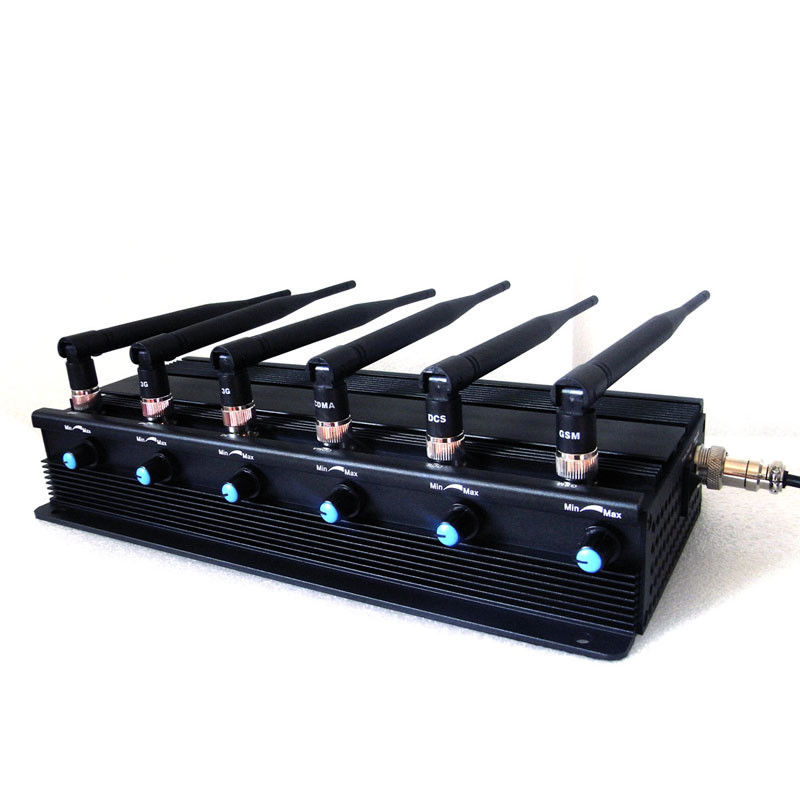

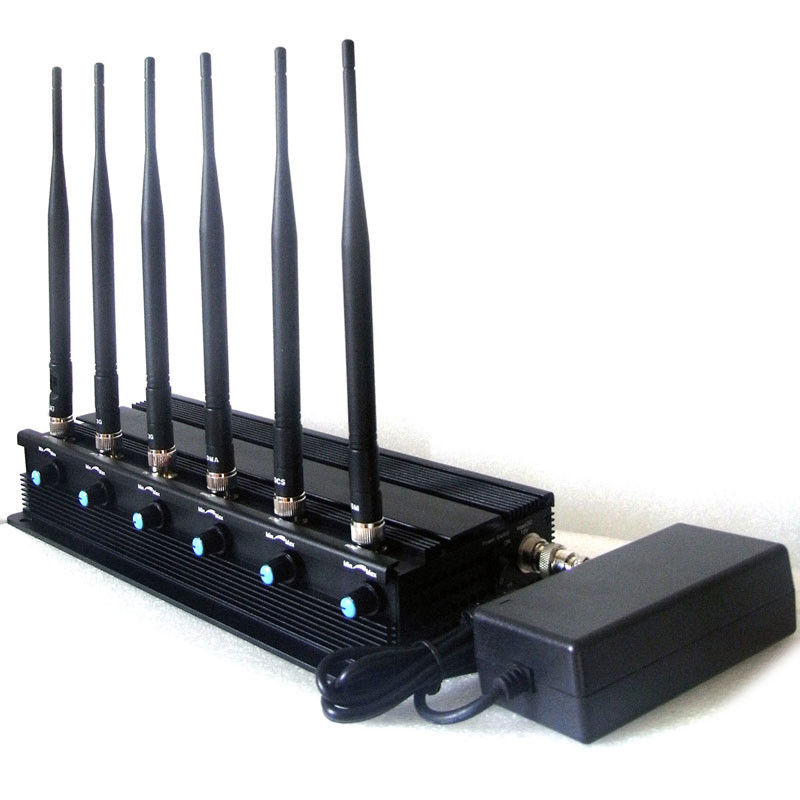

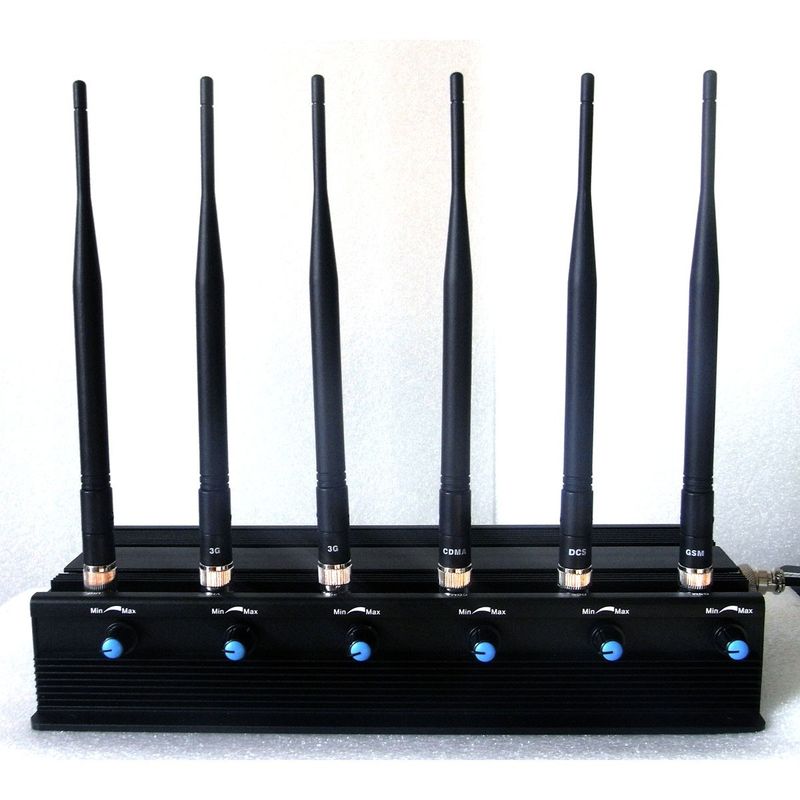

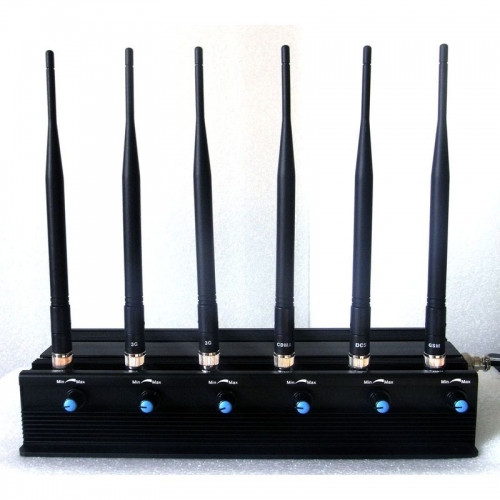

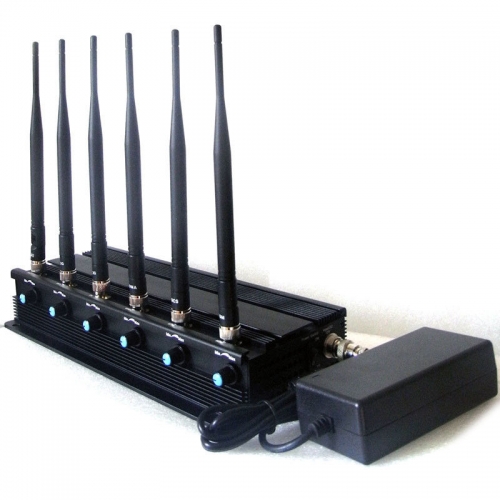

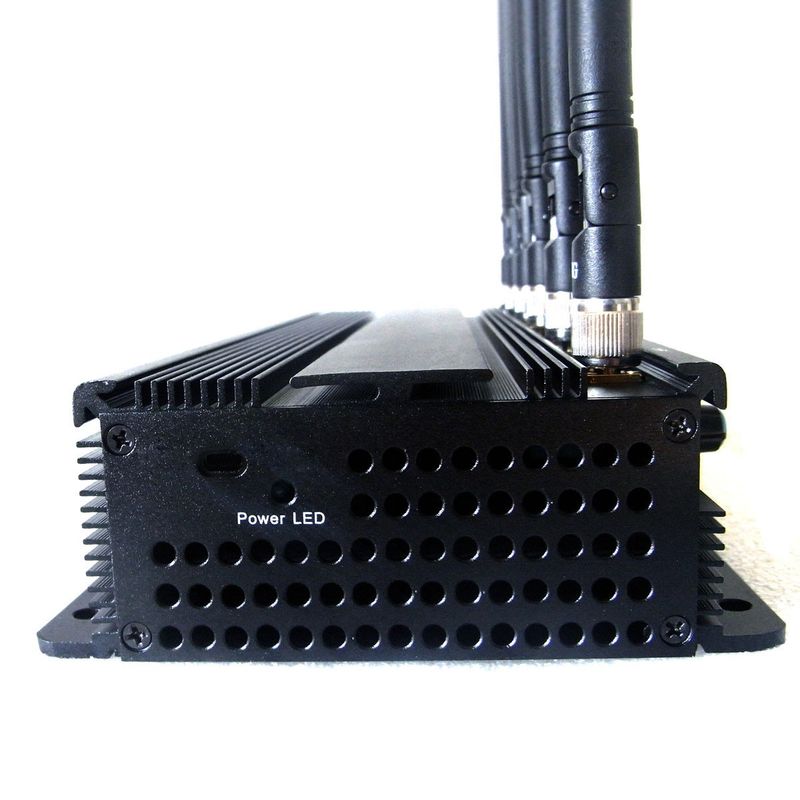

Adjustable 6 Antennas 15W High Power 2G 3G 4G WiFi Or GPS Cellphone Jammer

Item No.: JAM-660
This is high quality GPS and Wi-Fi signal jammer designed with 6-Antenna which bring us a strong jamming ability,Can cut off all GPSL1 Glonass and Wi-Fi signals, but also jam 2, 3, 4G mobile phone signal, VHF UHF Lojack RF 315/433MHz signals can be option
Description

Product Description:
This is high quality GPS and Wi-Fi signal jammer designed with 6-Antenna which bring us a strong jamming ability,Can cut off all GPSL1 Glonass and Wi-Fi signals, but also jam 2, 3, 4G mobile phone signal, VHF UHF Lojack RF 315/433MHz signals can be option.

Basic Specifications:
Jam Signal Type:
1: JAM-660-G: Full Bands Mobile Phone 4G/3G/2G +GPSL1
2: JAM-660-W: Full Bands Mobile Phone 4G/3G/2G +WIFI2.4G
3: JAM-660-4G: Full Bands Mobile Phone 4G/3G/2G +4G1700
Output Power:Total 12W,1-3W each band
Jam Radius:20-40meters
Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 2 cooling fans
Working Time:Not-stop Working
Product Size:305x 45x51 mm(not Include Antenna)
Product Weight: appr.3.0kg

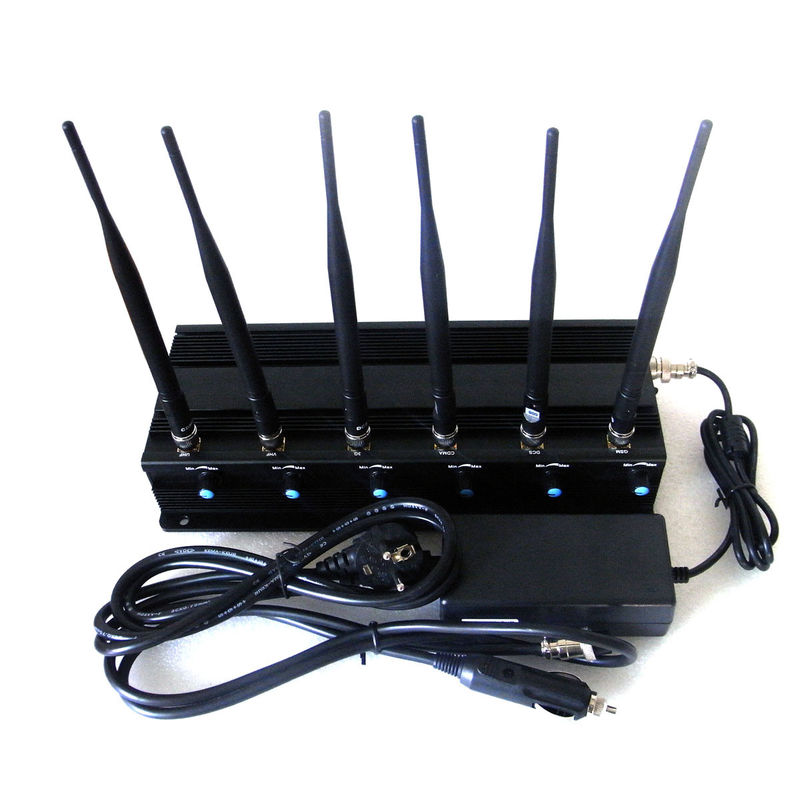

Package Contents:Jammer Host x 1, AC adapter x 1,antenna x6,Car storage battery cable x1

Advantages:

★High-output power, total up to: 12W
★Shielding radius up to 40 meters at 75dBm (still depends on the strength signal in given area)
★Each of 6-frequency module/band is separate and with adjustable power from max to off (0)
★External omni-directional antennas all the TX frequency covered down link only
★With in-car charger 12V DC can be used in car
★Built-in good cooling system inside, working non-stopped


Key Technical specifications : JAM-660-G
Channel Output port Frequency range Average out-putting power
1 CDMA or GSM 851-894 or 925-960MHz 35dBm/3W
2 DCS or PCS 1805-1880 or 1920-1990MHz 33dBm/2W
3 3G 2110-2170MHz 33dBm/2W
4 4G1 LTE 700-803 or 790-862MHz 35dBm/3W
5 4G Wimax 2500-2690 or 2300-2400MHz 30dBm/1W
6 GPSL1 1570-1580 MHz 33dBm/2W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 305x 140x 51mm(not Include Antenna)
Packing size: 47*27*13cm            Net weight: 2.5kg          Gross weight: 3.0kg
Total power:12W
Shielding radius: (20-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date

Key Technical specifications : JAM-660-W
Channel Output port Frequency range Average out-putting power
1 CDMA or GSM 851-894 or 925-960MHz 35dBm/3W
2 DCS or PCS 1805-1880 or 1920-1990MHz 33dBm/2W
3 3G 2110-2170MHz 33dBm/2W
4 4G1 LTE 700-803 or 790-862MHz 35dBm/3W
5 4G Wimax 2500-2690 or 2300-2400MHz 30dBm/1W
6 WIFI  2400-2500 MHz 30dBm/1W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 305x 140x 51mm(not Include Antenna)
Packing size: 47*27*13cm            Net weight: 2.5kg          Gross weight: 3.0kg
Total power:12W
Shielding radius: (20-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date

Key Technical specifications : JAM-660-4G
Channel Output port Frequency range Average out-putting power
1 CDMA or GSM 851-894 or 925-960MHz 35dBm/3W
2 DCS or PCS 1805-1880 or 1920-1990MHz 33dBm/2W
3 3G 2110-2170MHz 33dBm/2W
4 4G1 LTE 700-803 or 790-862MHz 35dBm/3W
5 4G Wimax 2500-2690 or 2300-2400MHz 30dBm/1W
6 4G1700  1710-1800 MHz 33dBm/2W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 305x 140x 51mm(not Include Antenna)
Packing size: 47*27*13cm            Net weight: 2.5kg          Gross weight: 3.0kg
Total power:12W
Shielding radius: (20-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date

OEM Customized service
Customized for special frequency band
, Wi-Fi5.8G 3.6GHz, etc
Silkscreen OEM service can be offered

Applications:
o    It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
