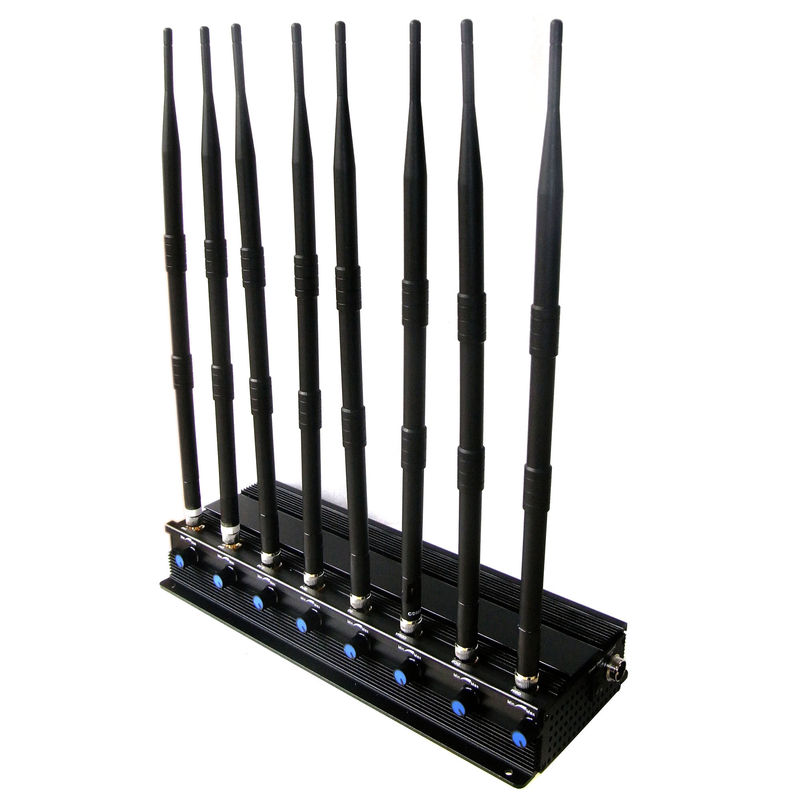

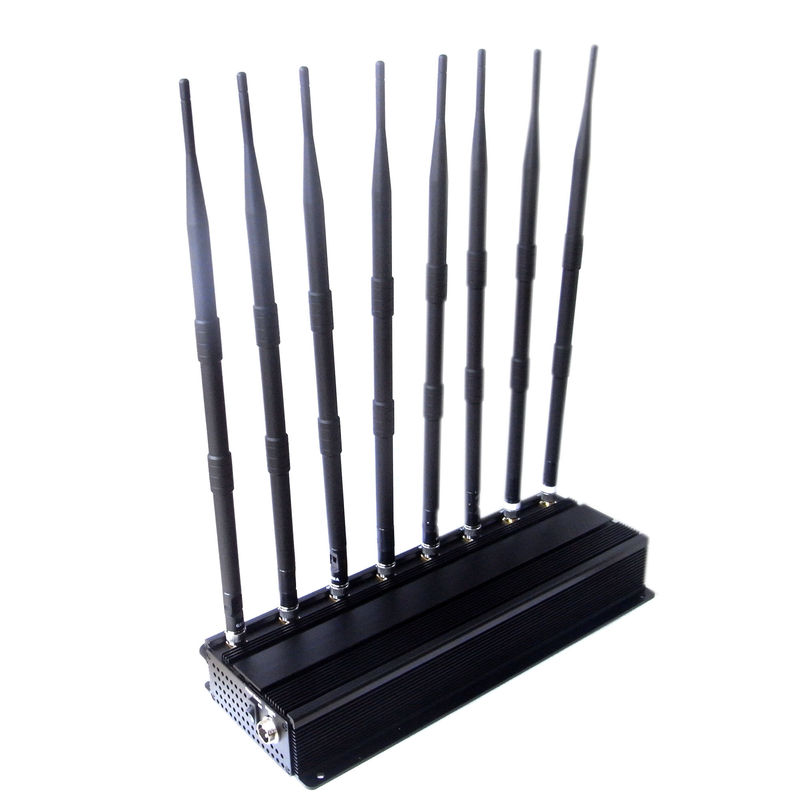

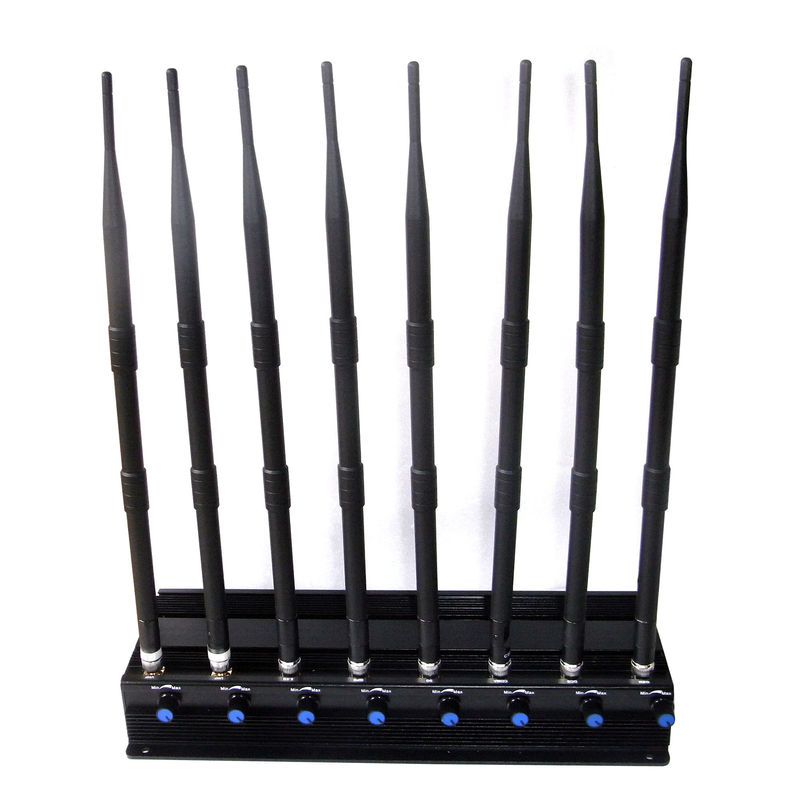

Adjustable 8 Antennas 2G 3G 4G Jammer GPS WIFI VHF UHF Blocker

Item No.: JAM-880
As a Multi-function desktop jammer, this product can block 8 frequency bands. Such as all cell phone signals: GSM/CDMA, 3G, 4G. It can also block GPS,WIFI and other signals Like VHF UHF RF 315 /433/868 MHZ Signals.
Description

Product Description:
As a Multi-function desktop jammer, this Adjustable 8 Antennas 2G 3G 4G Jammer GPS WIFI VHF UHF Blocker can block 8 frequency bands. Such as all cell phone signals: GSM/CDMA, 3G, 4G. It can also block GPS,WIFI and other signals Like VHF UHF RF 315 /433/868 MHZ Signals.

Basic Specifications:
Jam Signal Type:
1: JAM-880-4G: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1
2: JAM-880-LG: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1+LOJACK
3: JAM-880-WG: Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1+GPSL2L5+Spy Cam
4:JAM-880-UV:Full Bands Mobile Phone 4G/3G/2G+WiFi2.4G+ GPSL1 L2 L5+LOJACK+Walkie-Talkie UHF VHF+RC433 315
Output Power:Total 18W,1-3W each band
Jam Radius:20-40meters

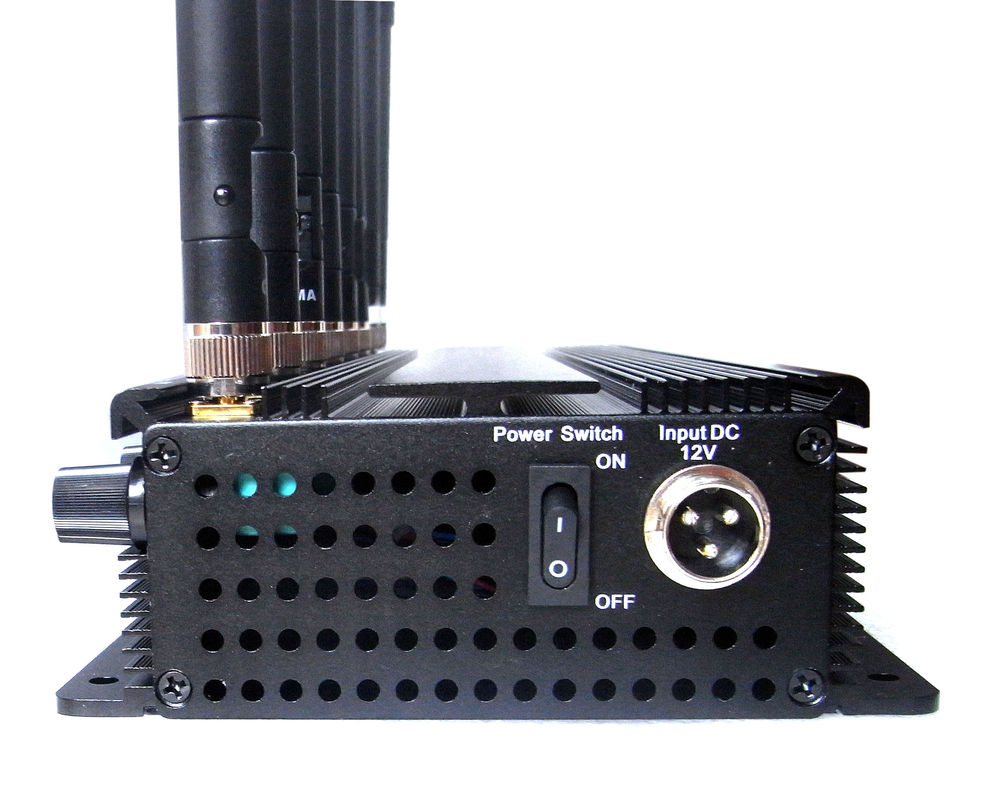

Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 3 cooling fan
Working Time:Not-stop Working
Product Size:370x 140x51 mm(not Include Antenna)
Product Weight: appr.3.5kg

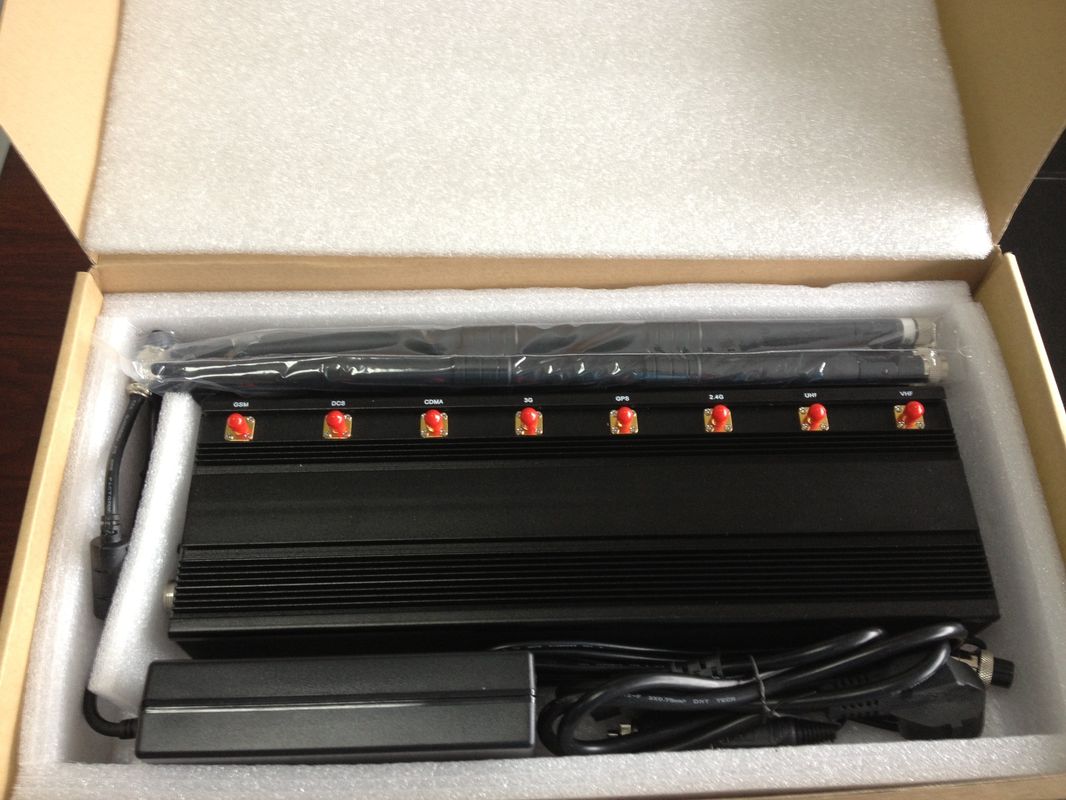

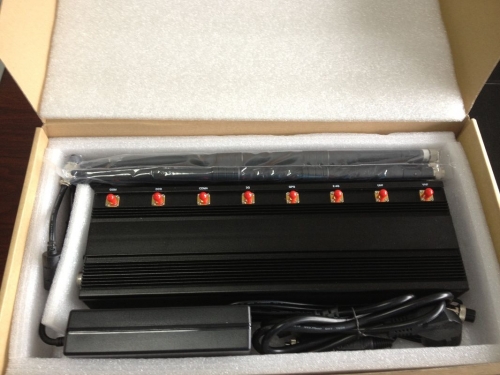

Package Contents:Jammer Host x 1, AC adapter x 1,antenna x8,Car storage battery cable x1

Advantages:

★8 chancel design, Customized for special frequency band.
★High output power, Total up to: 18W , jamming up to 40m (Still depends on the strength signal in given area)
★With Car storage battery Charger DC12V can be used in car
★External Omni-directional antennas all the TX frequency covered down link only
★Built-in good cooling system inside three fans, Working non-stopped
★Can adjust or turn off any single band without influencing the other bands operation


Key Technical specifications : JAM-880-4G
Channel Output port Frequency range Average out-putting power
1 CDMA 850-894 MHz 35dBm/3W
2 GSM 925-960MHz 35dBm/3W
3 DCS & PCS 1805-1990MHz 33dBm/2W
4 3G 2110-2170MHz 33dBm/2W
5 4G1 LTE 700-803 or 790-862MHz 35dBm/3W
6 4G Wimax 2500-2690 or 2300-2400MHz 30dBm/1W
7 GPSL1 1570-1580MHz 33dBm/2W
8 Wi-Fi 2.4G 2400-2500MHz 30dBm/1W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 370x 140x 51mm(not Include Antenna)
Packing size: 47*27*13cm            Net weight: 3kg          Gross weight: 3.5kg
Total power:18W
Shielding radius: (20-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date

Key Technical specifications : JAM-880-LG
Channel Output port Frequency range Average out-putting power
1 LoJack 167-175MHz 35dBm/3W
2 CDMA or GSM 851-894 or 925-960MHz 35dBm/3W
3 DCS or PCS 1805-1880 or 1920-1990MHz 33dBm/2W
4 3G 2110-2170MHz 33dBm/2W
5 4G1 LTE 700-803 or 790-862MHz 35dBm/3W
6 4G Wimax 2500-2690 or 2300-2400MHz 30dBm/1W
7 GPSL1 1570-1580MHz 33dBm/2W
8 Wi-Fi 2.4G 2400-2500MHz 30dBm/1W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 370x 140x 51mm(not Include Antenna)
Packing size: 47*27*13cm            Net weight: 3kg          Gross weight: 3.5kg
Total power:18W
Shielding radius: (20-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date

Key Technical specifications : JAM-880-WG
Channel Output port Frequency range Average out-putting power
1 CDMA or GSM 851-894 or 925-960MHz 35dBm/3W
2 DCS or PCS 1805-1880 or 1920-1990MHz 33dBm/2W
3 3G 2110-2170MHz 33dBm/2W
4 4G1 LTE 700-803 or 790-862MHz 35dBm/3W
5 4G Wimax 2500-2690 or 2300-2400MHz 30dBm/1W
6 WIFI2.4G 2400-2500MHz 35dBm/3W
7 GPSL1 1570-1580MHz 33dBm/2W
8 GPSL2+L5&Spy Camera 1170-1280MHz 33dBm/2W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 370x 140x 51mm(not Include Antenna)
Packing size: 47*27*13cm            Net weight: 3kg          Gross weight: 3.5kg
Total power:18W
Shielding radius: (20-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date

Key Technical specifications : JAM-880-UV
Channel Output port Frequency range Average out-putting power
1 CDMA or GSM 851-894 or 925-960MHz 35dBm/3W
2 DCS or PCS 1805-1880 or 1920-1990MHz 33dBm/2W
3 3G 2110-2170MHz 33dBm/2W
4 4G1 LTE 700-803 or 790-862MHz 35dBm/3W
5 4G Wimax 2500-2690 or 2300-2400MHz 30dBm/1W
6 RC315 315MHz 35dBm/3W
7 VHF&LOJACK 135-174MHz 35dBm/3W
8 UHF&CDMA450&RC433 400-470MHz 35dBm/3W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 370x 140x 51mm(not Include Antenna)
Packing size: 47*27*13cm            Net weight: 3kg          Gross weight: 3.5kg
Total power:18W
Shielding radius: (20-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date

OEM Customized service
Customized for special frequency band
, Wi-Fi5.8G 3.6GHz, etc
Silkscreen OEM service can be offered

Applications:
o    It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
