Product Description:
This is the newest designed with 18 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. All-in-one jammer is powerfull to blocks all the signals, The jamming radius up to 60meters，
Basic Specifications:
Jam Signal Type：
1:JAM-A18-A :Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1-L5 +Walkie-Talkie UHF/VHF+LOJACK+315+433
2:JAM-A18-B:Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G/5GHZ + GPSL1L2L5 +Walkie-Talkie UHF/VHF+315+433
3:JAM-A18-C :Full Bands Cellphone 4G/3G/2G +WiFi2.4G+ GPSL1-L5 + Full Bands Walkie-Talkie 135-500MHZ +315+433
Output Power：Total 42W，1-3W each band
Jam Radius：30-70meters
Power Supply：AC110 or 220V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time：Not-stop Working
Product Size：460x 238x 60 mm（not Include Antenna）
Product Weight: appr.7.5kg

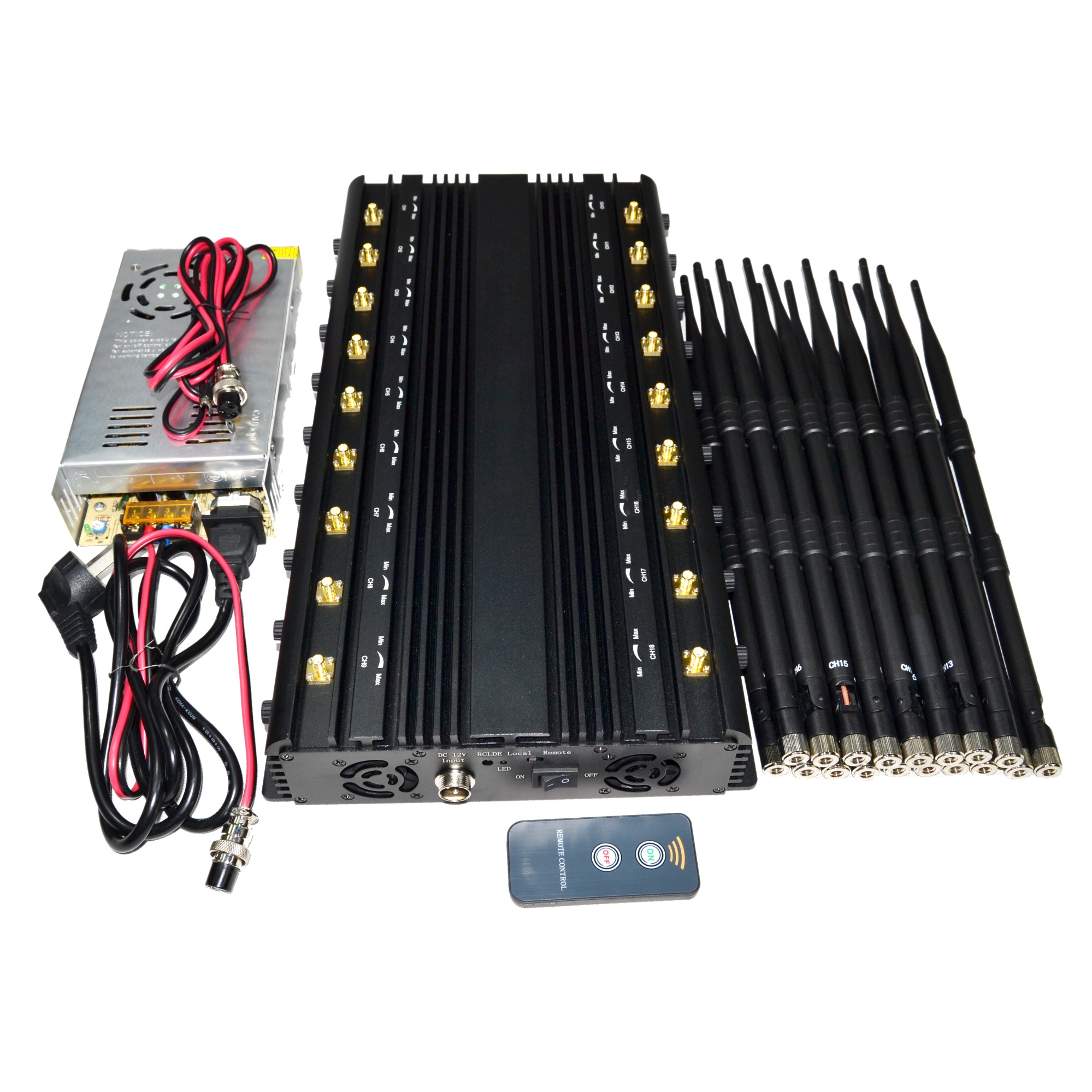

Package Contents：Jammer Host x 1, AC adapter x 1,antenna x18,Car storage battery cable x1, Infrared Remote Control x1
Advantages:
| Key Technical specifications : JAM-A18-A | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA | 850-894MHz | 35dbm / 3W |
| 2 | GSM | 925-960MHZ | 35dbm / 3W |
| 3 | DCS | 1805-1880MHZ | 33dbm / 2W |
| 4 | PCS | 1900-1990MHz | 33dbm / 2W |
| 5 | 3G | 2110-2170MHZ | 33dbm / 2W |
| 6 | WIFI 2.4G | 2400-2500MHZ | 30dbm / 1W |
| 7 | 4G1 LTE | 700-805 or 790-826MHz | 35dbm / 3W |
| 8 | 4G LTE | 2500-2690MHZ | 30dbm / 1W |
| 9 | 4G2 1700 | 1710-1780MHz | 33dbm / 2W |
| 10 | 4GH 2300 | 2300-2400MHZ | 30dbm / 1W |
| 11 | 433 (car remote control) | 433MHZ | 35dbm / 3W |
| 12 | 315 (car remote control) | 315MHZ | 35dbm / 3W |
| 13 | VHF | 135-175Mhz | 35dbm / 3W |
| 14 | UHF | 400-470MHZ | 35dbm / 3W |
| 15 | LOJACK | 167-175MHZ | 35dbm / 3W |
| 16 | GPSL1 | 1570-1580Mhz | 33dbm / 2W |
| 17 | GPSL2+L5 | 1170-1280MHZ | 33dbm / 2W |
| 18 | GPSL3+L4 | 1370-1390MHZ | 33dbm / 2W |
| Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 460x 238x 60mm（not Include Antenna） | |||
| Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg | |||
| Total power:42W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
| Key Technical specifications : JAM-A18-B | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA | 850-894MHz | 35dbm / 3W |
| 2 | GSM | 925-960MHZ | 35dbm / 3W |
| 3 | DCS | 1805-1880MHZ | 33dbm / 2W |
| 4 | PCS | 1900-1990MHz | 33dbm / 2W |
| 5 | 3G | 2110-2170MHZ | 33dbm / 2W |
| 6 | WIFI 2.4G | 2400-2500MHZ | 30dbm / 1W |
| 7 | WIFI5.2G | 5100-5500MHz | 30dbm / 1W |
| 8 | WIFI5.8G | 5500-5900MHz | 30dbm / 1W |
| 9 | 4G1 LTE | 700-805 or 790-826MHz | 33dbm / 2W |
| 10 | 4G LTE | 2500-2690MHZ | 30dbm / 1W |
| 11 | 4G2 1700 | 1710-1780MHz | 35dbm / 3W |
| 12 | 433 (car remote control) | 433MHZ | 35dbm / 3W |
| 13 | 315 (car remote control) | 315MHZ | 35dbm / 3W |
| 14 | VHF | 135-175Mhz | 35dbm / 3W |
| 15 | UHF | 400-470MHZ | 35dbm / 3W |
| 16 | LOJACK | 167-175MHZ | 33dbm / 2W |
| 17 | GPSL1 | 1570-1580Mhz | 33dbm / 2W |
| 18 | GPSL2+L5 | 1170-1280MHZ | 33dbm / 2W |
| Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 460x 238x 60mm（not Include Antenna） | |||
| Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg | |||
| Total power:40W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
| Key Technical specifications : JAM-A18-C | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA | 850-894MHz | 35dbm / 3W |
| 2 | GSM | 925-960MHZ | 35dbm / 3W |
| 3 | DCS | 1805-1880MHZ | 33dbm / 2W |
| 4 | PCS | 1900-1990MHz | 33dbm / 2W |
| 5 | 3G | 2110-2170MHZ | 33dbm / 2W |
| 6 | WIFI 2.4G | 2400-2500MHZ | 30dbm / 1W |
| 7 | 4G1 LTE | 700-805 or 790-826MHz | 30dbm / 1W |
| 8 | 4G LTE | 2500-2690MHZ | 30dbm / 1W |
| 9 | 4G2 1700 | 1710-1780MHz | 33dbm / 2W |
| 10 | 4GH 2300 | 2300-2400MHZ | 30dbm / 1W |
| 11 | Walkie-Talkie VHF1 | 135-200MHZ | 35dbm / 3W |
| 12 | Walkie-Talkie UHF2 | 200-300MHZ | 35dbm / 3W |
| 13 | UHF3+RC315 | 300-400Mhz | 35dbm / 3W |
| 14 | UHF4+RC433 | 400-500MHZ | 35dbm / 3W |
| 15 | LOJACK | 167-175MHZ | 35dbm / 3W |
| 16 | GPSL1 | 1570-1580Mhz | 33dbm / 2W |
| 17 | GPSL2+L5 | 1170-1280MHZ | 33dbm / 2W |
| 18 | GPSL3+L4 | 1370-1390MHZ | 33dbm / 2W |
| Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 460x 238x 60mm（not Include Antenna） | |||
| Packing size: 55*44*15cm Net weight: 7kg Gross weight: 8.0kg | |||
| Total power:42W Shielding radius: (2-40) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
