Backpack Cellphone Jammer for 2G 3G 4GLTE with Output Power 80W GPS WiFi Blocker Jamming up to 100m

Backpack Cellphone Jammer for 2G 3G 4GLTE with Output Power 80W GPS WiFi Blocker Jamming up to 100m

Name: Backpack Cellphone Jammer for 2G 3G 4GLTE with Output Power 80W GPS WiFi Blocker Jamming up to 100m
Brand: Cellphone Jammer, Wireless Signal Jammer, Mobile Phone Jammer,GPS Jammer, Wifi Jammer, Prison Jammer , Military Jammer, Cellphone Jammer manufacturer from China!
SKU: 1704P6-W
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 1704P6-W

Manpack /backpack middle power drone or mobile phone jammer for 4G cellular phones, Cellphone 3G 4GLTE/WIMAX Wi-Fi UHF VHF Signal Jammer which are currently presented on the market. Also is middle RF power Drone Jammer model with 6 antennas 2 cooling fan

INQUIRY PDF Format

Description

Product description:
Manpack /backpack middle power drone or mobile phone jammer for 4G cellular phones, Cellphone 3G 4GLTE/WIMAX Wi-Fi UHF VHF Signal Jammer which are currently presented on the market. Also is middle RF power Drone Jammer model with 6 antennas 2 cooling fans which bring us a strong jamming ability. Build-in battery can works 1.5 hours. And it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series.

Basic specifications:
Jam signal type：
1: Mobile phone 3G/2G GSM CDMA DCS 4GLTE +WiFi2.4G signals
2:Mobile phone 3G/2G GSM CDMA DCS 4GLTE +GPSL1 signals
3: Drone UAVS RC2.4G+RC5.8G+GPSL1L2L5+RC433 868 912 MHz
Output power：Total 80W, 10-20W each band
Jam radius：20-100 meters (GPS signal for 200m)
Power supply：AC110-240V to DC27V
Cooling system：High efficiency aluminum alloy radiator+ 2X cooling fans
Working time：Not-stop Working(Build-in AC power DC27V and Battery 27V20Ah working 1.5hours)
Product size： 400 x 290 x 135mm (not Include Antenna)
Product weight: appr.20kg (for OMNI antennas)
Package contents：Jammer Host x 1, Battery Charge x 1, antenna x6, Manpack bag x1

Advantage:
★Output power total 80w, You can choose high gain 5-7 dbi OMNI or Panel directional antennas, shielding 20-100m,Still depends on the strength signal in given area.

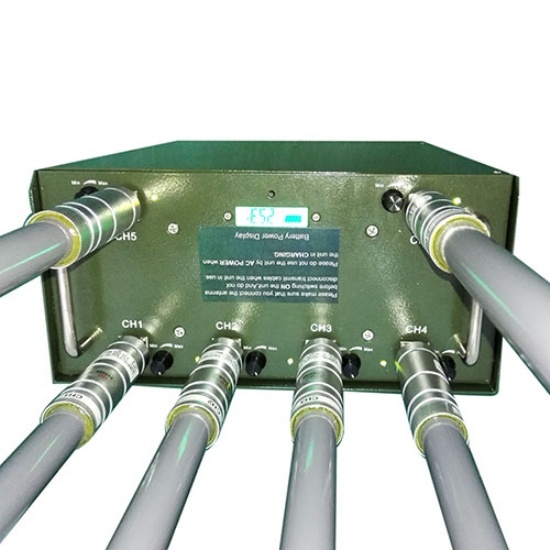

★Each unit can jam up to 6 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0)
★100% safe VSWR over protection for each modular
★Big aluminum alloy shell and 2 pieces cooling fans, not-stop to work
★Build-in AC power DC27V and Battery 27V20Ah continue working 1.5hours, Battery Power and charger stative display via LED screen
★Professional manpack design, army use to jam the RC bomb or drone.

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	CDMA or GSM	851-894 or 925-960MHz	43dbm / 20W
2	DCS/PCS	1805-1990MHz	40dbm /10W
3	3G	2110-2170MHz	40dbm /10W
4	4GLTE	700-803 or 790-862MHz	43dbm / 20W
5	4G WIMAX	2500-2690 or 2300-2400MHz	40dbm /10W
6	WIFI2.4G	2400-2500MHz	40dbm /10W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V) Battery:27V20Ah
Dimension: (length, width, height ) 400 x 290 x 135 mm(Not include antenna)
Package Size: 550 x450 x 300mm N.W:16kg G.W:16Kg + 3kg antennas =20kg Working temperature: -30~60℃
Total power:80W Shielding radius: (50--100) meters At -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP Antenna： Dimension: (length, width, height,): 500x 30 x 30mm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:180º V:20 º
Panel Directional Antenna： Dimension: (length, width, height,): 21x 18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:60-90º V:20-30º

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	CDMA or GSM	851-894 or 925-960MHz	43dbm / 20W
2	DCS/PCS	1805-1990MHz	40dbm /10W
3	3G	2110-2170MHz	40dbm /10W
4	4GLTE	700-803 or 790-862MHz	43dbm / 20W
5	4G WIMAX	2500-2690 or 2300-2400MHz	40dbm /10W
6	GPSL1	1570-1610 MHz	40dbm /10W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V) Battery:27V20Ah
Dimension: (length, width, height ) 400 x 290 x 135 mm(Not include antenna)
Package Size: 550 x450 x 300mm N.W:16kg G.W:16Kg + 3kg antennas =20kg Working temperature: -30~60℃
Total power:80W Shielding radius: (50--100) meters At -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP Antenna： Dimension: (length, width, height,): 500x 30 x 30mm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:180º V:20 º
Panel Directional Antenna： Dimension: (length, width, height,): 21x 18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:60-90º V:20-30º

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	RC2.4G	2400-2500MHz	40dbm /10W
2	RC 868 ,912 and 916 Or 433	868-916 or 433MHz	43dbm /20W
3	RC433	433 MHz	43dbm /20W
4	RC5.8G	5725-5850MHz	39dbm /8W
5	GPSL2+L5	1170-1280MHz	40dbm /10W
6	GPSL1 +GlonassL1	1560-1620 MHz	40dbm /10W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V) Battery:27V20Ah
Dimension: (length, width, height ) 400 x 290 x 135 mm(Not include antenna)
Package Size: 550 x450 x 300mm N.W:16kg G.W:16Kg + 3kg antennas =20kg Working temperature: -30~60℃
Total power:78W Shielding radius: (20--100) meters At -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
OMNI FRP Antenna： Dimension: (length, width, height,): 500x 30 x 30mm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:180º V:20 º
Panel Directional Antenna： Dimension: (length, width, height,): 21x 18 x 5cm N.W:0.5Kg Gains:5-10dbi VSWR》1.5 H:60-90º V:20-30º

OEM customized service:
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi 2.4G,5.8G,3.6GHz, GPSL1-L5 and more
Silkscreen OEM service can be offered.

Application：
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more
