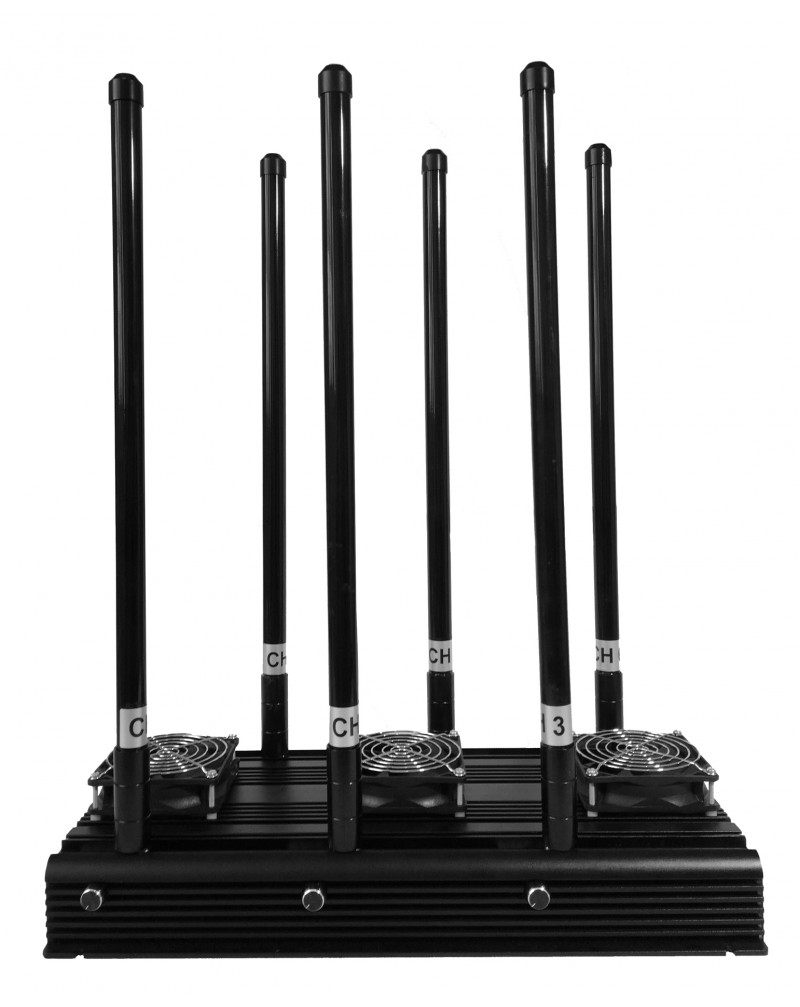

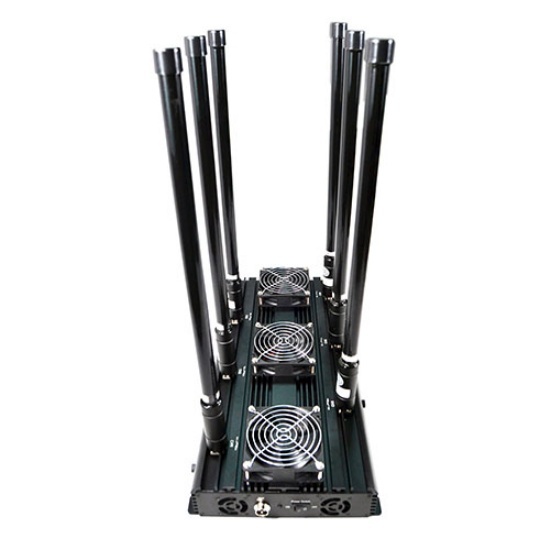

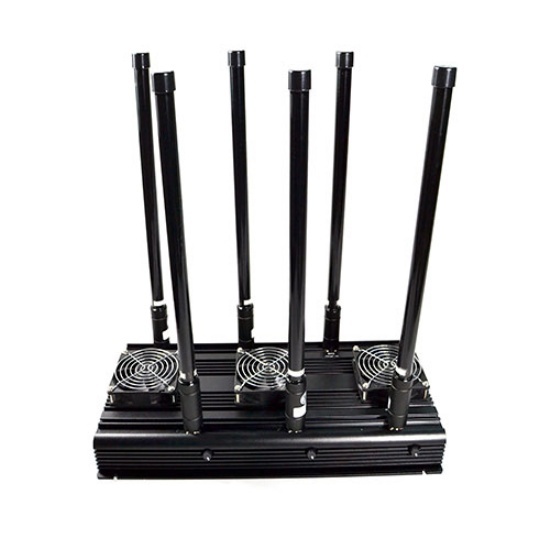

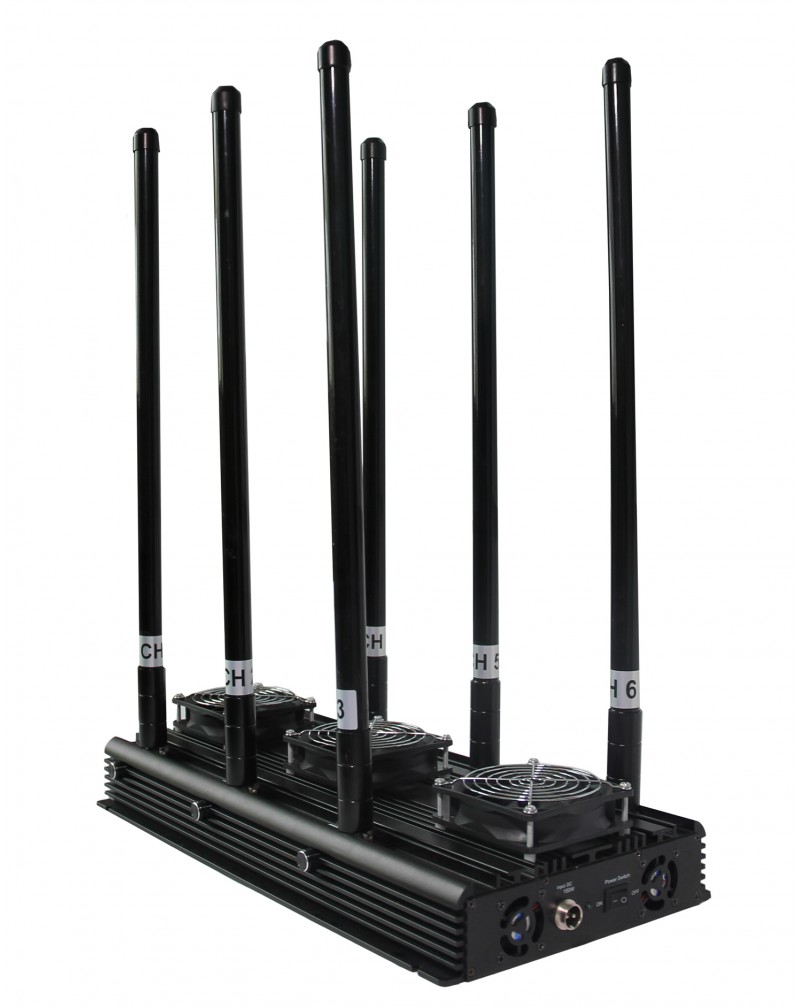

Drone signal jammer up to 500m, 6-band RC2.4G 5.8GHz 433/315/868/916MHz/GPS/GLONASS L1L2 jammer

Item No.: JAM-D6-UAV
One of the hotselling and high powerful UAV drone jammer which are currently presented on the market. With 6-band and 88W output power, this blocker is able to disable all cover 100% drones UAVs, jamming range radius: 100-500 meters.
Description

Product Description:
This is One of the hotselling and high powerful UAV drone jammer which are currently presented on the market. With 6-band and 88W output power, this blocker is able to disable all cover 100% drones UAVs, jamming range radius: 100-500 meters.

Basic Specifications:
Jam Signal Type:JAM-D6-UAV:Drone UAVS RC2.4G+RC5.8G+GPSL1L2L5+RC433 868 912 MHz
Output Power:Total 88W,10-15W each band
Jam Radius:100-500 meters (GPS signal for 500m)
Power Supply:AC110-240V to DC27V
Cooling System:High efficiency aluminum alloy radiator+ 7X cooling fans
Working Time:Not-stop Working
Product Size:500x 238x 60mm(not Include Antenna)
Product Weight: appr.8kg ( for OMNI antennas)

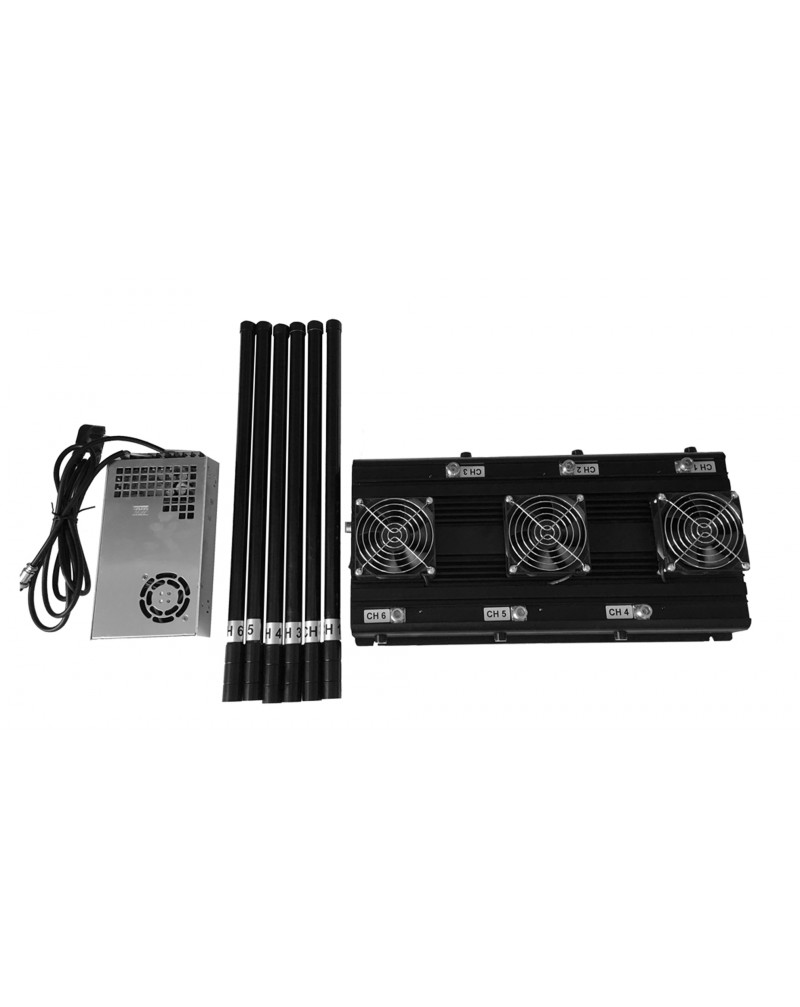

Package Contents:Jammer Host x 1, Adapter x 1, antenna x6, or 6x 2meter 1/2 Cable for OMNI antennas

Advantages:

★Each unit can jam up to 6 frequency bands, each frequency band is separate and with adjustable power from Max to OFF (0)
★100% safe VSWR over protection (isolator) for each modular
★Good cooling system with heat-sink and 3 big on top fans + 4 x small inside, low noise.

Key Technical specifications : JAM-D6-UAV
Channel Output port Frequency range Average out-putting power
1 RC2.4 G  2400-2500 MHz 40dBm/10W
2 RC 5.8G  5725-5850MHz 40dBm/10W
3 RC 433  433 MHz 41.7dBm/15W
4 RC 868 ,912 and 916 Or 433 868-916 or 433MHz 41.7dBm/15W
5 GPSL1+Glonassl1 1560-1620 MHz 40dBm/10W
6 GPSL2 +L5+Glonassl2 1170-1280 MHz 40dBm/10W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V)
Dimension: (length, width, height) 500x 238x 60mm
Package Size: 60*44.5*20cm      N.W:6kg       G.W:8kg(Use normal OMNI antennas)
Total Power:70W      Shielding Radius: (50-150) meters@-75dBm.
Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal.
Warranty:  One year from delivery date.
OMNI FRP Antenna:   Dimension: (length, width, height,): 500x 30 x 30mm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:180º      V:20 º
Panel Directional Antenna:   Dimension: (length, width, height,): 21x 18 x 5cm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:60-90º      V:20-30º
Basic station Directional Antenna:   Dimension: (length, width, height,): 125x 25 x 8.5cm
N.W:10Kg    Gains:12-20dbi      VSWR》1.5         H:60-90º      V:20-30º

Additional options:
- Directional external patch panel antennas
- Omni car magnetic antenna bases
- External battery that can work 1 hour (24V/20Ah LiFePo4) + charger
- 12V DC to 220V AC inverter 2000W, to use normal car battery 12V DC/80-100Ah

OEM Customized service:
All 6 frequency modules we can mix very flexible
Options: remote/alarm control 315, 433, 920-965MHz, GPS L1 L2 L3 L4 L5, LoJack 173MHz, 4G 700-800MHz (USA), UHF, VHF, SAT satellite phones 1520-1670MHz,Any combinations and customized are possible, just send us your inquiry and we will give you our recommendation.

Applications:
Device can be used to block the UAV drone signal in the churches, museums, movie theatres or during the important conference in meeting room to avoid the leakage of secure information, in classrooms during the exams, courts, hospitals, banks, recording studios or other crowded places where the usage of mobile phone is prohibited.
