Product Description:
Good quality12 Antennas Full Bands mobile phone GSM 3G 4GLTE signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi GPS LOJACK,RF 315 MHz 433MHz , VHF UHFWalkie-Talkie & Wireless Headset/Microphone signals. All-in-one jammer is power full to blocks all the signals,Jamming frequencies the jamming radius up to 60meters.
Basic Specifications:
Jam Signal Type：
1:JAM-A12-A:Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1 +Walkie-Talkie UHF/VHF+LOJACK/RC433/RC315
2:JAM-A12-B: Full Bands Cellphone 4G/3G/2G +WiFi2.4G5.8G+ GPSL1L2 L3L4L5+LOJACK
Output Power：Total 30W，1-3W each band
Jam Radius：30-60meters
Power Supply：AC110-240V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 4 cooling fan
Working Time：Not-stop Working
Product Size：330x 238x 60mm（not Include Antenna）
Product Weight: appr.6kg

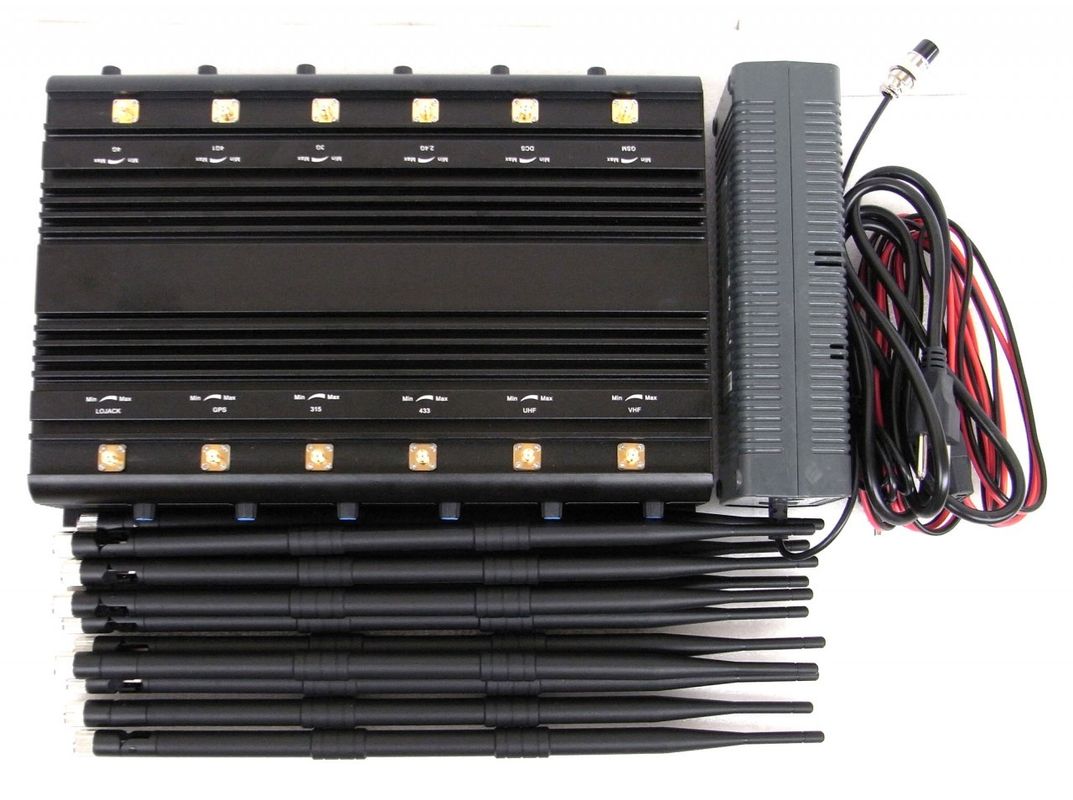

Package Contents：Jammer Host x 1,AC adapter x 1,antenna x12,Car storage battery cable x1
Advantages:
| Key Technical specifications : JAM-A12-A | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | VHF | 130-190MHz | 35dbm / 3W |
| 2 | UHF or CDMA450 | 400-470 or 450-470MHz | 35dbm / 3W |
| 3 | RC315 | 315MHz | 35dbm / 3W |
| 4 | RC433 | 433MHz | 35dbm / 3W |
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 6 | LOJACK&XM radio | 167-175MHz | 35dbm / 3W |
| 7 | GSM or CDMA | 925-960 or 850-894MHz | 35dbm / 3W |
| 8 | DCS or PCS | 1805-1880-1920-1990MHz | 33dbm / 2W |
| 9 | 3G | 2110-2170MHz | 33dbm / 2W |
| 10 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 11 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W |
| 12 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 330x 238x 60mm（not Include Antenna） | |||
| Packing size: 49*44*15cm Net weight: 5.5kg Gross weight: 6.0kg | |||
| Total power:30W Shielding radius: (30-60) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
| Key Technical specifications : JAM-A12-B | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | WIFI5.2G | 5100-5500MHz | 30dbm / 1W |
| 2 | WIFI5.8G | 5500-5900MHz | 30dbm / 1W |
| 3 | GPSL2+L5 | 1170-1280MHz | 33dbm / 2W |
| 4 | GPSL3+L4 | 1280-1390MHz | 33dbm / 2W |
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 6 | LOJACK&XM radio | 167-175MHz | 35dbm / 3W |
| 7 | GSM or CDMA | 925-960 or 850-894MHz | 35dbm / 3W |
| 8 | DCS or PCS | 1805-1880-1920-1990MHz | 33dbm / 2W |
| 9 | 3G | 2110-2170MHz | 33dbm / 2W |
| 10 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 11 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W |
| 12 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 330x 238x 60mm（not Include Antenna） | |||
| Packing size: 49*44*15cm Net weight: 5.5kg Gross weight: 6.0kg | |||
| Total power:30W Shielding radius: (30-60) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
