High Power DDS Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System 20-6000MHz

Item No.: 1711V12-D
This is a high-power DDS convoy jamming system, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system, designed for the protection of VIP’s and groups of people from radio controll
Description
Product description:
This is a high-power DDS convoy jamming system, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system, designed for the protection of VIP’s and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks, briefcase Jammer transmits RF interference and creates a radio frequency protected zone around the object that prevents remote controlled bomb activation byvarious RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries, case Jammers are also deployed to guard forces in the field, dignitaries and VIP’s,checkpoint and border crossings, roadblocks, embassies, police and government offices, case.

Basic specifications:
Jam signal type: Broadband frequency bands, 20MHz-2700MHz (or 20-6000MHz)
Output power: total 1100W/50-100W each band
Jam radius: 100-500 meters (GPS signal for 1500m)
Power supply: 110-240V AC to 27V DC
Cooling system: high-efficiency aluminum alloy radiator+ 30X cooling fans
Working time: not-stop working
Product size: pelican case box 750*602*460mm (not include antenna)
Product weight: 90kg
Package contents: jammer host x 1, antenna x 12, AC plug x 1, wired remote console unit x 1

Advantages:
★Output power total 1100W, designed with ultra broadband frequency bands, customize to 20MHz-6000MHz

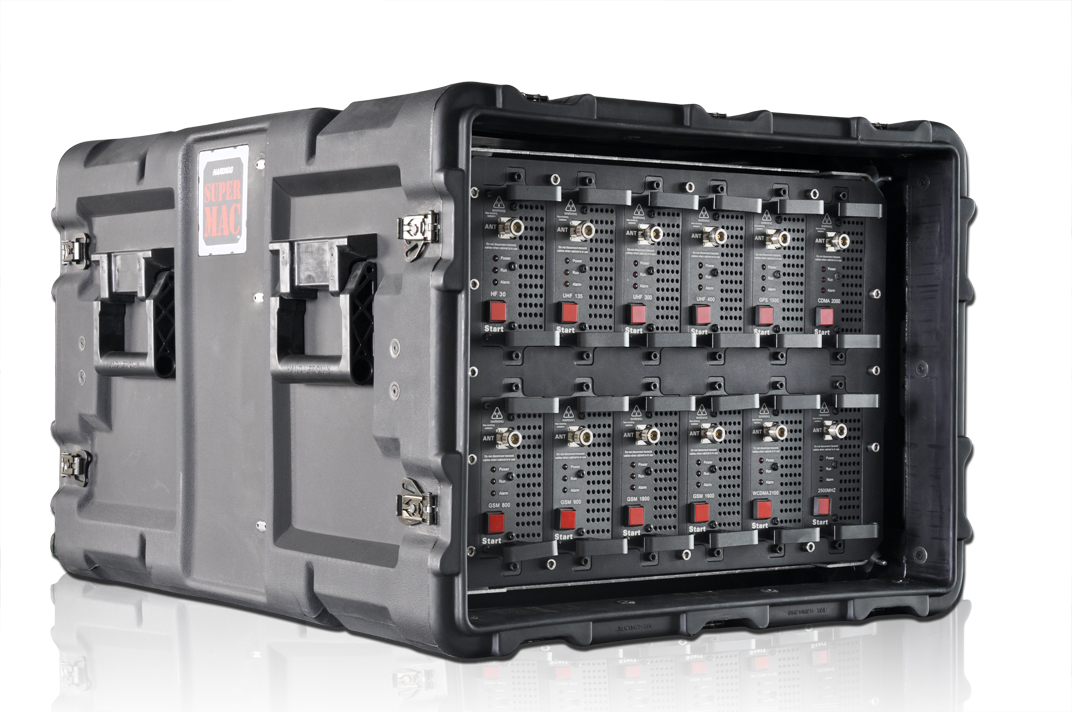

★12 modules plug and play design, facilitate for future power upgrading, change and maintenance, any ruin on the modules never interfere the normal operating of other modules
★Adjustable output power each band, VSWR/temperature over protection

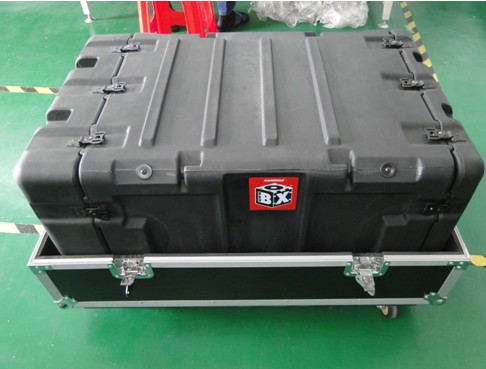

★American Mil-spec standard case, shockproof and drop-resistance, available for the vehicle running in a worse field environment

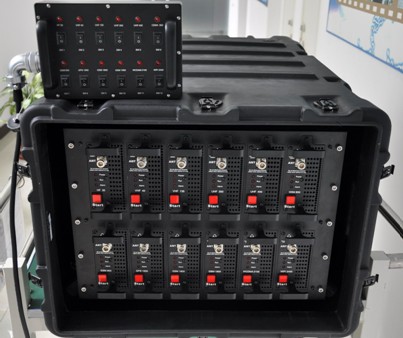

★Up to 20 frequency bands, all jamming modules designed by DDS technology System operation can be performed in the driver’s wired remote console unit,  each module can be on/off, backup battery or generator system can be optional
★Device body is no more than 90kg
★Continuously and simultaneously interference to the common used RF signals

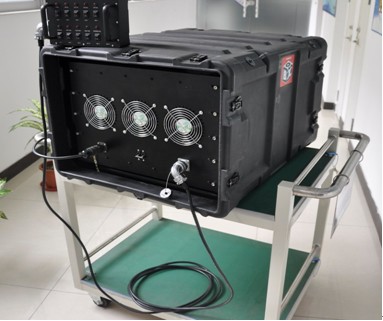

★Integrated smart active cooling system to make sure the device working continuously.


Key Technical specifications :
Channel Output Port Frequency range Average out-putting power
1 Radio control toys, analog phones/alarms 20-50MHz 47dBm/50W
2 Walky-talky (VHF) 130-174MHz 50dBm/100W
3 Walky-talky (UHF300) 310-350MHz 50dBm/100W
4 Walky-talky (UHF300) 400-480MHz 50dBm/100W
5 Walky-talky (UHF700/800), tetra, 4GLTE700 700-803MHz 50dBm/100W
6 Cellular CDMA/TDMA, alky-talky (UHF800/900) 800-894MHz 50dBm/100W
7 Cellular GSM900 925-960MHz 50dBm/100W
8 Cellular DCS/PCS 1805-1990MHz 50dBm/100W
9 Cellular UMTS/WCDMA (3G) 2110-2170MHz 50dBm/100W
10 GPS/Glonass L1 1520-1610MHz 47dBm/50W
11 WLAN/Bluetooth and Wi-Fi 2.4G 2400-2500MHz 50dBm/100W
12 Cellular 4G LTE 2600 or 2300 2500-2690 or 2300-2400MHz 50dBm/100W
Below frequencies you can instead of above one to combined 12 bands

Option





Wi-Fi 5.2G 5100-5500MHz 47dBm/50W
Wi-Fi 5.8G 5500-5580MHz 47dBm/50W
Wi-Fi 3.6G 3500-3600MHz 47dBm/50W
GPS L2+L5 1170-1280MHz 47dBm/50W
Lojack and XM radio 167-175MHz 50dBm/100W
4G1 LTE 1700 1710-1780MHz 50dBm/100W
Power supply: AC adapter 50 to 60Hz, (110 or 240V AC, 27V DC)
Dimensions: 750*602*460mm (not include antenna)
Package size: 1100 x900x700m mm
Net weight: 88kg
Gross weight: 88kg + 30kg antennas =120kg
Working temperature: -30 to 60C
Total power: 1100W
Shielding radius: (100-500) meters at 75dBm
Still depends on the strength signal in given area
Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date
NATO flange base with spring antenna
Length: 80-180cm
Net weight: 2.5-3.5kg
Gains: 5-10dBi
VSWR: 2.0
H: 180º
V: 20 º
Basic station directional antenna
Dimensions: 125x 25 x 8.5cm
Net weight: 10kg
Gains: 12-20dBi
VSWR: 1.5
H: 60-90º
V: 20-30º

Application:
For the protection of VIP’s and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks, briefcase Jammer transmits RF interference and creates
a radio frequency protected zone around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries, case Jammers are also deployed to guard forces in the field, dignitaries and VIP’s,
checkpoint and border crossings, roadblocks, embassies, police and government offices, case
