Key Technical specifications : | |||
Channel | Output Port | Frequency range | Average out-putting power |
1 | RC 2.4GHz Wi-Fi | 2400-2500MHz | 44dBm/50W |
2 | RC 868 and 912Mhz | 868-916MHz | 44dBm/25W |
3 | RC 433/434Mhz | 433MHz | 44dBm/25W |
4 | GPS L1 Glonass L1 BD B1 | 1560-1616MHz | 40dBm /10W |
5 | GPS L2 Glonass L2 BD B2 L5 BD B3 | 1176-1270MHz | 40dBm /10W |
6 | RC 5.8GHz | 5725-5850MHz | 40dBm/10W |
Below frequencies you can instead of above one to combined 6 bands | |||
Option | Wi-Fi5.2G | 5100-5500MHz | 40dBm/10W |
Wi-Fi 5.8G | 5500-5580MHz | 40dBm/10W | |
WiFi3.6G | 3500-3600MHz | 40dBm/10W | |
Power supply: AC adapter 50 to 60Hz, (110 or 240V AC-27V DC) | |||

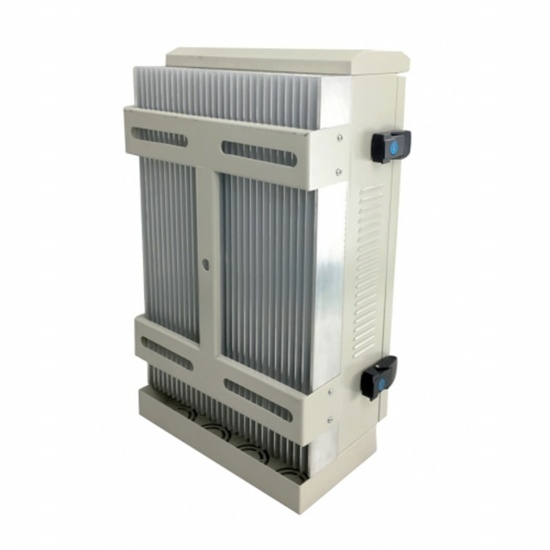

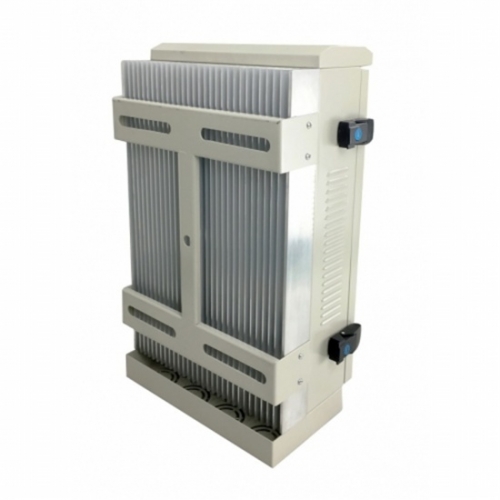

Dimensions: 520*230*200mm (not include antenna) | |||
Packing size: 47*60*28cm Net weight: 20kg Gross weight : 22kg + 20kg antennas = 42kg Working temperature: -30 to 60ºC |
|||
Total power: 130W Shielding radius: (100-500) meters at -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal |
|||
Warranty: one year from delivery date |
