High Power Indoor Use 6 Bands 4GLTE Jammer with Output Power 130W CDMA GSM 3G 4G WIFI2.4Ghz Jamming up to 150m

Item No.: JAM-D6
The one is good quality High power mobile phone Jammer for GSM CDMA DCS PCS 3G 4G cellular phones, Cellphone 3G 4GLTE/WIMAX Wi-Fi UHF VHF Signal jammer which are currently presented on the market. Also is Medium RF power Drone jammer model with 6 antennas
Description

Product Description:
The one is good quality High power mobile phone Jammer for GSM CDMA DCS PCS 3G 4G cellular phones, Cellphone 3G 4GLTE/WIMAX Wi-Fi UHF VHF Signal Isolator which are currently presented on the market. Also is Middle RF power Drone jammer model with 6 antennas 7 cooling fan which bring us a strong jamming ability. 24/7 continuously working. And it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series.

Basic Specifications:
Jam Signal Type
1: JAM-D6-W :Mobile phone 3G/2G GSM CDMA DCS 4GLTE +WIFI2.4G Signals
2: JAM-D6-G :Mobile phone 3G/2G GSM CDMA DCS 4GLTE +GPSL1 Signals
3.JAM-D6-UAV:Drone UAVS RC2.4G+RC5.8G+GPSL1L2L5+RC433 868 912 MHz
Output Power:Total 130W,20-25W each band
Jam Radius:50-150 meters (GPS signal for 500m)
Power Supply:AC110-240V to DC27V
Cooling System:High efficiency aluminum alloy radiator+ 7X cooling fans
Working Time:Not-stop Working
Product Size:500x 238x 60mm(not Include Antenna)
Product Weight: appr.8kg ( for OMNI antennas)

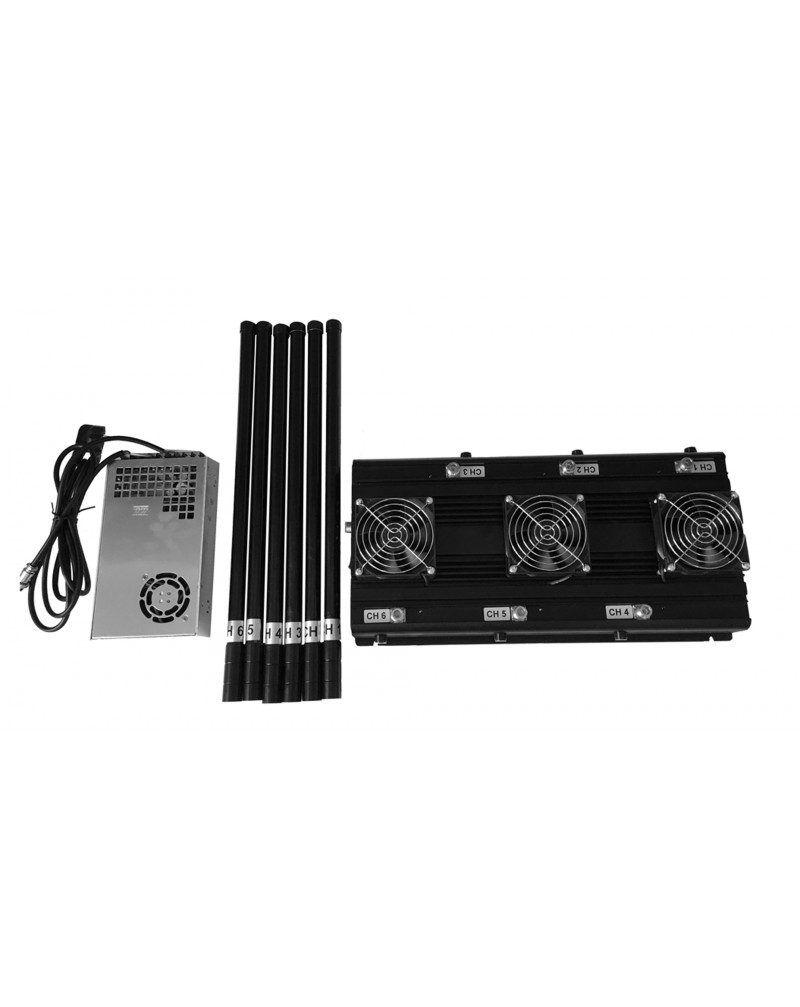

Package Contents:Jammer Host x 1, Adapter x 1, antenna x6, or 6x 2meter 1/2 Cable for OMNI antennas

Advantages:

★Output power total 130w, You can choose high gain 5-7 dbi OMNI or Panel directional antennas, shielding 50-150m,Still depends on the strength signal in given area.
★Each unit can jam up to 6 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0), LED indicator lights display power supply
★100% safe VSWR over protection (isolator) for each modular
★Big aluminum alloy shell and cooling fans, not-stop to work
★Selection of antennas to provide more flexibility regarding jamming coverage.


Key Technical specifications : JAM-D6-W
Channel Output Port Frequency range Average out-putting power
1 CDMA or GSM 851-894 or 925-960MHz 44dbm / 25W
2 DCS/PCS 1805-1990MHz 43dbm / 20W
3 3G 2110-2170MHz 43dbm / 20W
4 4GLTE 700-803 or 790-862MHz 44dbm / 25W
5 4G WIMAX 2500-2690 or 2300-2400MHz 43dbm / 20W
6 WIFI2.4G 2400-2500MHz 43dbm / 20W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V)
Dimension: (length, width, height) 500x 238x 60mm
Package Size: 60*44.5*20cm      N.W:6kg       G.W:8kg(Use normal OMNI antennas)
Total Power:130W      Shielding Radius: (50-150) meters@-75dBm.
Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal.
Warranty:  One year from delivery date.
OMNI FRP Antenna:   Dimension: (length, width, height,): 500x 30 x 30mm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:180º      V:20 º
Panel Directional Antenna:   Dimension: (length, width, height,): 21x 18 x 5cm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:60-90º      V:20-30º
Basic station Directional Antenna:   Dimension: (length, width, height,): 125x 25 x 8.5cm
N.W:10Kg    Gains:12-20dbi      VSWR》1.5         H:60-90º      V:20-30º

Key Technical specifications : JAM-D6-G
Channel Output Port Frequency range Average out-putting power
1 CDMA or GSM 851-894 or 925-960MHz 44dbm / 25W
2 DCS/PCS 1805-1990MHz 43dbm / 20W
3 3G 2110-2170MHz 43dbm / 20W
4 4GLTE 700-803 or 790-862MHz 44dbm / 25W
5 4G WIMAX 2500-2690 or 2300-2400MHz 43dbm / 20W
6 GPSL1 1570-1610MHz 43dbm / 20W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V)
Dimension: (length, width, height) 500x 238x 60mm
Package Size: 60*44.5*20cm      N.W:6kg       G.W:8kg(Use normal OMNI antennas)
Total Power:130W      Shielding Radius: (50-150) meters@-75dBm.
Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal.
Warranty:  One year from delivery date.
OMNI FRP Antenna:   Dimension: (length, width, height,): 500x 30 x 30mm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:180º      V:20 º
Panel Directional Antenna:   Dimension: (length, width, height,): 21x 18 x 5cm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:60-90º      V:20-30º
Basic station Directional Antenna:   Dimension: (length, width, height,): 125x 25 x 8.5cm
N.W:10Kg    Gains:12-20dbi      VSWR》1.5         H:60-90º      V:20-30º

Key Technical specifications : JAM-D6-UAV
Channel Output port Frequency range Average out-putting power
1 RC2.4 G  2400-2500 MHz 40dBm/10W
2 RC 5.8G  5725-5850MHz 40dBm/10W
3 RC 433  433 MHz 41.7dBm/15W
4 RC 868 ,912 and 916 Or 433 868-916 or 433MHz 41.7dBm/15W
5 GPSL1+Glonassl1 1560-1620 MHz 40dBm/10W
6 GPSL2 +L5+Glonassl2 1170-1280 MHz 40dBm/10W
Power supply: AC adapter 50 to 60Hz, (AC110 or 240V to DC27V)
Dimension: (length, width, height) 500x 238x 60mm
Package Size: 60*44.5*20cm      N.W:6kg       G.W:8kg(Use normal OMNI antennas)
Total Power:70W      Shielding Radius: (50-150) meters@-75dBm.
Still depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal.
Warranty:  One year from delivery date.
OMNI FRP Antenna:   Dimension: (length, width, height,): 500x 30 x 30mm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:180º      V:20 º
Panel Directional Antenna:   Dimension: (length, width, height,): 21x 18 x 5cm
N.W:0.5Kg    Gains:5-10dbi      VSWR》1.5         H:60-90º      V:20-30º
Basic station Directional Antenna:   Dimension: (length, width, height,): 125x 25 x 8.5cm
N.W:10Kg    Gains:12-20dbi      VSWR》1.5         H:60-90º      V:20-30º

OEM Customized service:
Frequency Range can be customized: 4GLTE Wimax, Wi-Fi 2.4G,5.8G,3.6GHz, GPSL1-L5 and more.
Silkscreen OEM service can be offered.

Applications:
o    It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
