Mini Drone UAV Jammer,with 6 Bands/GPS L1 L2 Remote Controls/868 315/433MHz Signal Blocker

Item No.: JAM-660-UAV
This is mini Indoor using Drone Signal Jammer, Block GPS and Wi-Fi signals designed with 6 antennas which bring us a strong jamming ability and it can cut off all GPSL1 Glonass and Wi-Fi signals, but also jam 2/3/4G mobile phone signal, VHF UHF Lojack RF
Description

Product Description:
This is mini Indoor using Drone Signal Jammer, Block GPS and Wi-Fi signals designed with 6 antennas which bring us a strong jamming ability and it can cut off all GPSL1 Glonass and Wi-Fi signals, but also jam 2/3/4G mobile phone signal, VHF UHF Lojack RF 315/433MHz signals can be option, jamming radius 40 meters with car charger that used in car directly.

Basic Specifications:
Jam Signal Type:
1: JAM-660-UAV: RC2.4G+RC5.8G+GPSL1L2L5+RC315 433 868 912 MHz

Output Power:Total 12W,1-3W each band
Jam Radius:20-40meters
Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 2 cooling fans
Working Time:Not-stop Working
Product Size:305x 45x51 mm(not Include Antenna)
Product Weight: appr.3.0kg

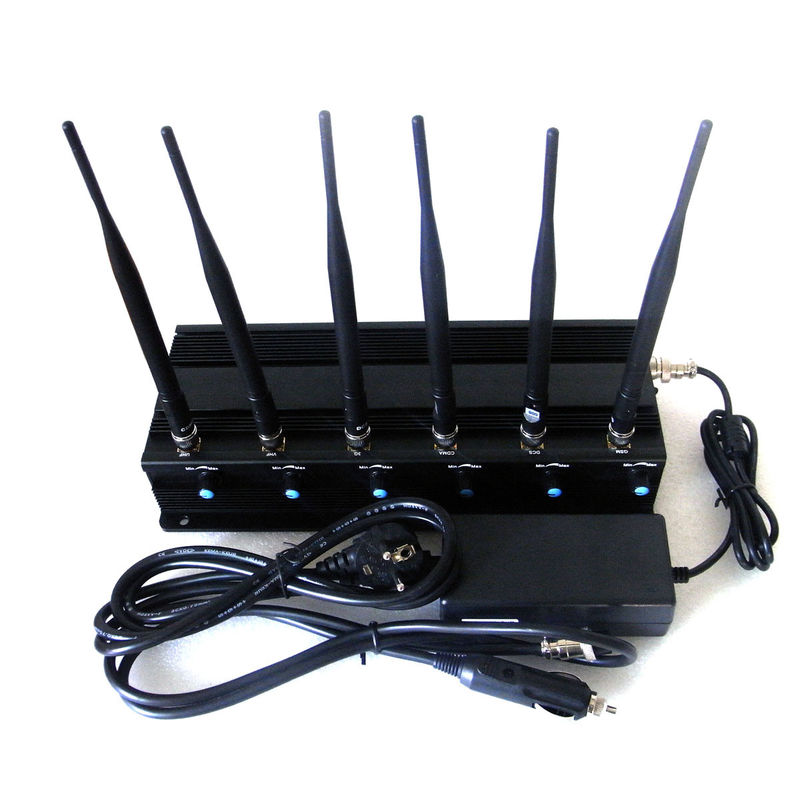

Package Contents:Jammer Host x 1, AC adapter x 1,antenna x6,Car storage battery cable x1

Advantages:

★High-output power, total up to: 12W
★Shielding radius up to 40 meters at 75dBm (still depends on the strength signal in given area)
★Each of 6-frequency module/band is separate and with adjustable power from max to off (0)
★External omni-directional antennas all the TX frequency covered down link only
★With in-car charger 12V DC can be used in car
★Built-in good cooling system inside, working non-stopped


Key Technical specifications : JAM-660-UAV
Channel Output port Frequency range Average out-putting power
1 RC2.4 G  2400-2500 MHz 30dBm/1W
2 RC 5.8G  5725-5850MHz 30dBm/1W
3 RC 433 Or 315  433 Or 315 MHz 33dBm/2W
4 RC 868+ 912  868-916 MHz 35dBm/3W
5 GPSL1+Glonassl1+BD B1 1560-1620 MHz 30dBm/1W
6 GPSL2 +L5+Glonassl2+BD B2 1170-1280 MHz 33dBm/2W
Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 305x 140x 51mm(not Include Antenna)
Packing size: 47*27*13cm            Net weight: 2.5kg          Gross weight: 3.0kg
Total power:12W
Shielding radius: (20-40) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date

OEM Customized service
Customized for special frequency band GPSL1-LG, Lojack, 433 315MHz, Wi-Fi 5.8G 3.6GHz, VHF UHF100-500MHz
Silkscreen OEM service can be offered

Applications:
o    It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
