Outdoor High Power Prison Jammer System ,Output Power 250 watt Jamming up to 300 M

Outdoor High Power Prison Jammer System ,Output Power 250 watt Jamming up to 300 M

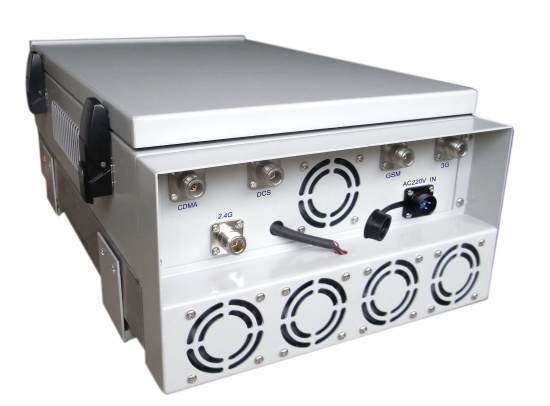

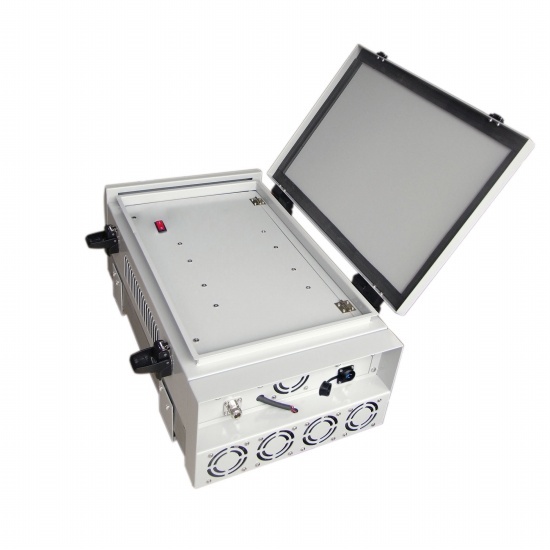

Name: Outdoor High Power Prison Jammer System ,Output Power 250 watt Jamming up to 300 M
Brand: Cellphone Jammer, Wireless Signal Jammer, Mobile Phone Jammer,GPS Jammer, Wifi Jammer, Prison Jammer , Military Jammer, Cellphone Jammer manufacturer from China!
SKU: 1505DW
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 1505DW

High power wireless signal Jammers for Mobile Phone signals is able to disable all mobile phone frequencies CDMA GSM, 2G, 3G, 4G Lte, 4G Low. Also is high RF power Drone Jammer model, it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional,

INQUIRY PDF Format

Description

Product Description:
High power wireless signal Jammers for Mobile Phone signals is able to disable all mobile phone frequencies CDMA GSM, 2G, 3G, 4G Lte, 4G Low. Also is high RF power Drone Jammer model, it can defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series, block remote control signal 2.4GHz, 5.8GHz, GPS L1 L2 L3 L4 L5, 433, RC 868 and 912MHz, Jamming range 300-1000 meters.

Basic Specifications:
Jam Signal Type:
1: Mobile phone 3G/2G GSM CDMA DCS 4GLTE Signals
2: Drones UAVs RC2.4G/5.8GHz/433/868/912+GPSL1/L2/L5 Signals
Output Power:Total 250W30-50W each band
Jam Radius:100-300 meters (GPS signal for 1000m)
Power Supply:AC110-240V to DC27V
Cooling System:High efficiency aluminum alloy radiator+ 5x cooling fans
Working Time:Not-stop Working
Product Size:520x 340 x200 mm
Product Weight: appr.25kg (for panel directional antennas)
Package Contents:Jammer Host x 1 , antenna x5, or 5x 2meter 1/2 Cable for OMNI antennas

Advantages:

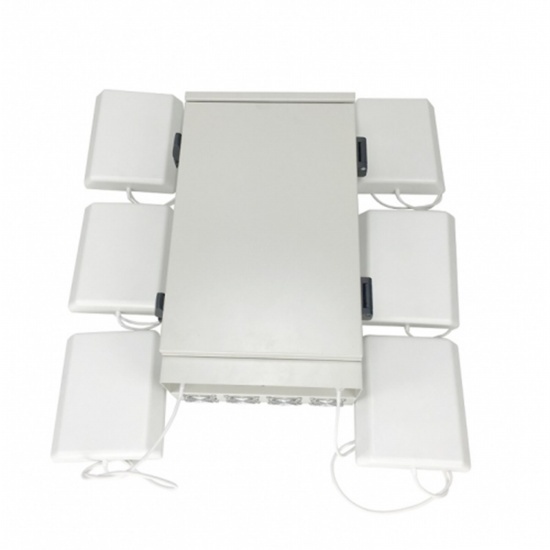

★Output power total 250W, you can choose high gain 5-7dBi Omni or panel directional antennas, shielding 100-300m, still depends on the strength signal in given area
★Each unit can jam up to 5 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0), LED indicator lights display power supply
★100% safe VSWR over protection (isolator) for each modular

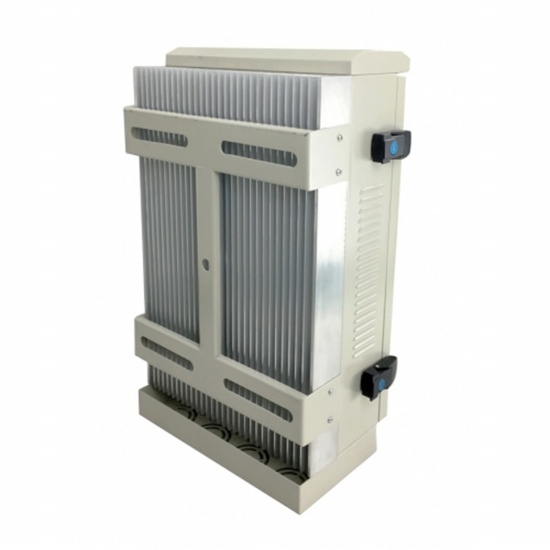

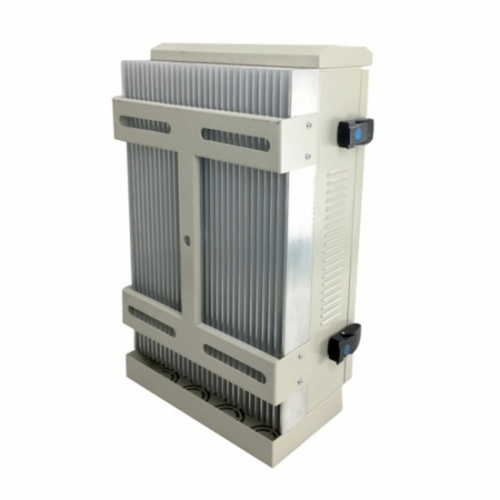

★Big aluminum alloy shell and cooling fans, not-stop to work
★Design for outdoor installation, secure design to avoid sabotage

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	CDMA or GSM	851-894 or 925-960MHz	47dBm/50W
2	DCS/PCS	1805-1990MHz	47dBm/50W
3	3G	2110-2170MHz	47dBm/50W
4	4GLTE	700-803 or 790-862MHz	47dBm/50W
5	4G WIMAX	2500-2690 or 2300-2400MHz	47dBm/50W
Power supply: AC adapter 50 to 60Hz, (110 or 240V AC to 27V DC)
Dimensions: 520x340x 200mm
Packing size: 705050cm Net weight: 22kg Gross weight: 25kg (use panel directional antennas)
Total power: 250W Shielding radius: (100-300) meters at -75dBm,Still depends on the strength signal in given area.Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date

OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º
Panel directional antenna: Dimensions: 21x18x5cm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 60-90º V: 20-30º

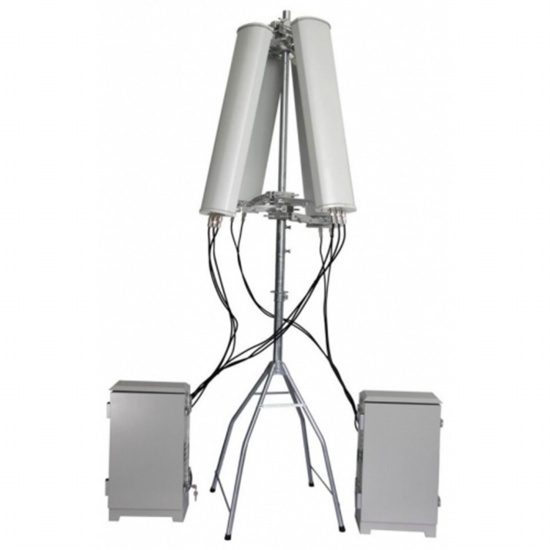

Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º

Key Technical specifications :
Channel	Output Port	Frequency range	Average out-putting power
1	RC2.4G	2400-2500MHz	47dBm/50W
2	RC 868 ,912 and 916 Or 433	868-916 or 433MHz	47dBm/50W
3	RC5.8G	5725-5850MHz	44.7dBm/30W
4	GPSL2+L5	1170-1280MHz	47dBm/50W
5	GPSL1 +GlonassL1	1560-1620 MHz	47dBm/50W
Power supply: AC adapter 50 to 60Hz, (110 or 240V AC to 27V DC)
Dimensions: 520x340x 200mm
Packing size: 705050cm Net weight: 22kg Gross weight: 25kg (use panel directional antennas)
Total power: 230W Shielding radius: (300-1000) meters at -75dBm,Still depends on the strength signal in given area.Shielding radius of VHF/UHF signal should be lesser than cell phone signal
Warranty: one year from delivery date

OMNI FRP antenna: Dimensions: 500x 30x30mm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 180º V: 20 º
Panel directional antenna: Dimensions: 21x18x5cm Net weight: 0.5kg Gains: 5-10dBi VSWR >1.5 H: 60-90º V: 20-30º
Basic station directional antenna: Dimensions: 125x25x8.5cm Net weight: 10kg Gains: 12-20dBi VSWR >1.5 H: 60-90º V: 20-30º

OEM customized service:
Frequency range can be customized: 4GLTE Wimax, Wi-Fi 2.4G, 5.8G, 3.6GHz, GPSL1-L5
Silkscreen OEM service can be offered

Applications:
o Can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus, places that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations, do field test first to make sure no interference happened to the normal operation of their equipment and instrumen
