Product Description:

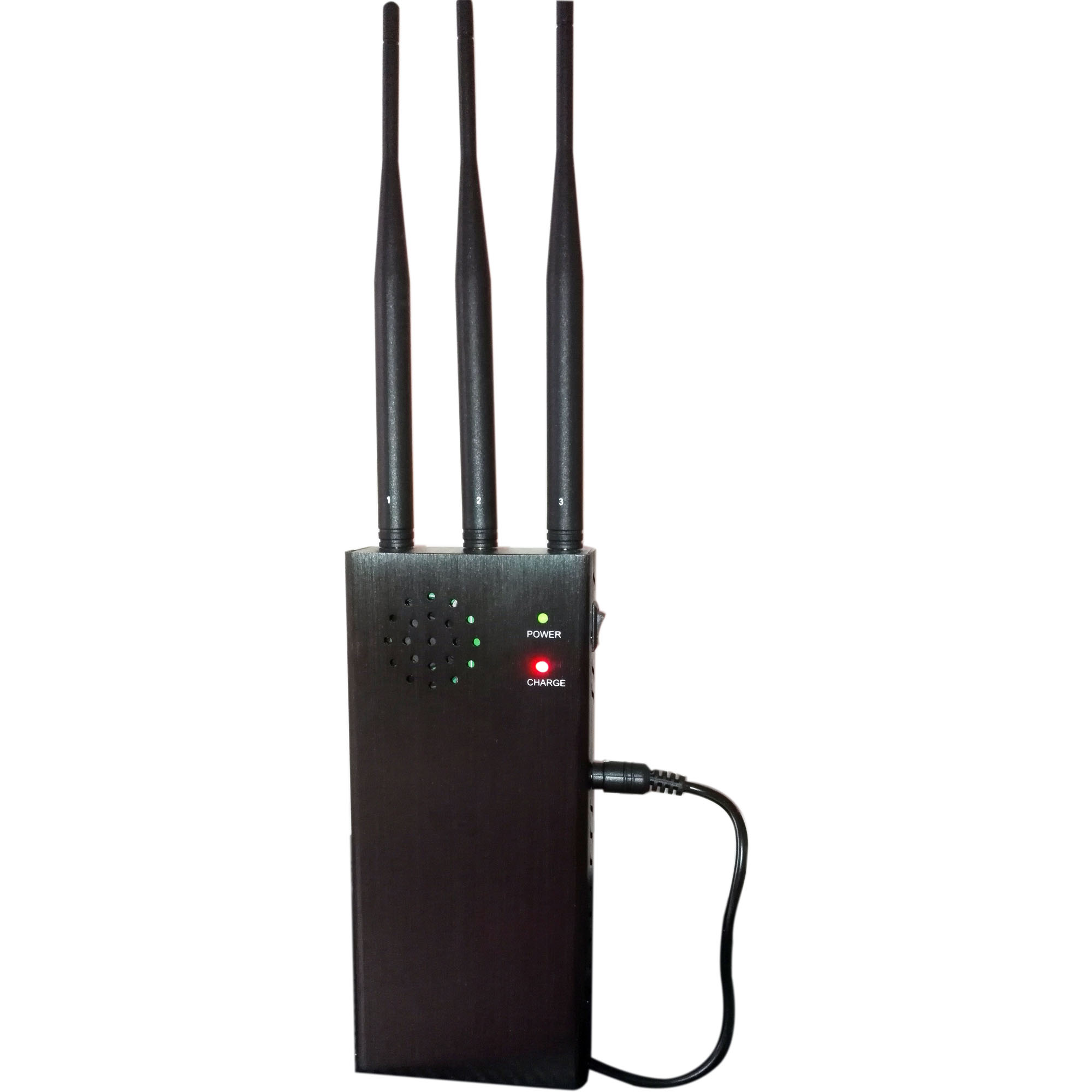

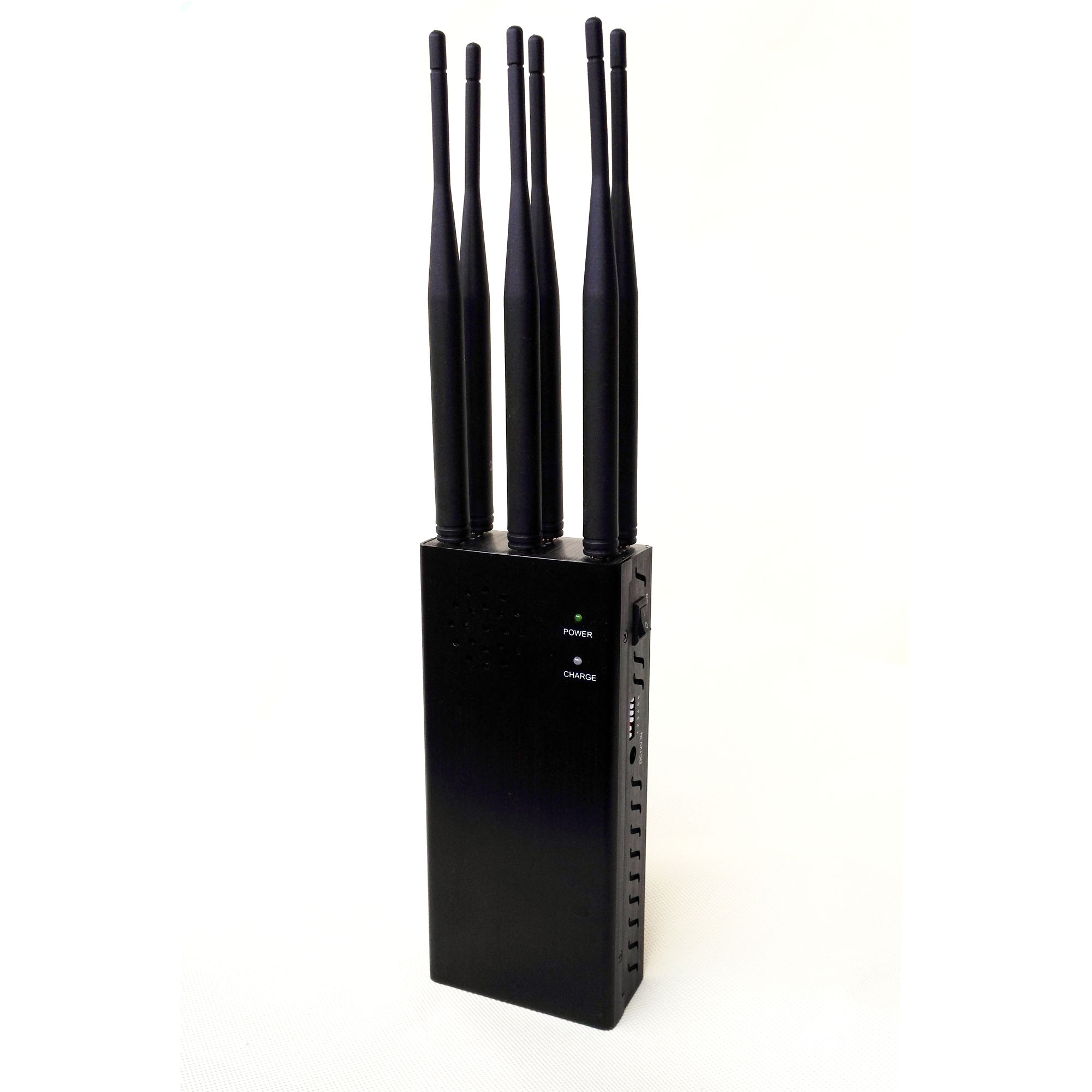

This Portable Wireless Camera Signal Jammer,GPS Glonass L1-L5 LoJack Wi-Fi Jammer block all GPS Glonass L1-L5 LoJack Wi-Fi and wireless spy camera signals, NiMH battery 8000mAh work 3.0 hours more.
Basic Specifications:
Output Power：Total 4.2W，0.7W each band
Jam Radius：5-20meters
Power Supply：AC110-240V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 1 cooling fan
Working Time：Continue working 3 Hours
Product Size：177.5x76.5x36.5mm (not include antenna),
Product Weight: appr.1.2 kg

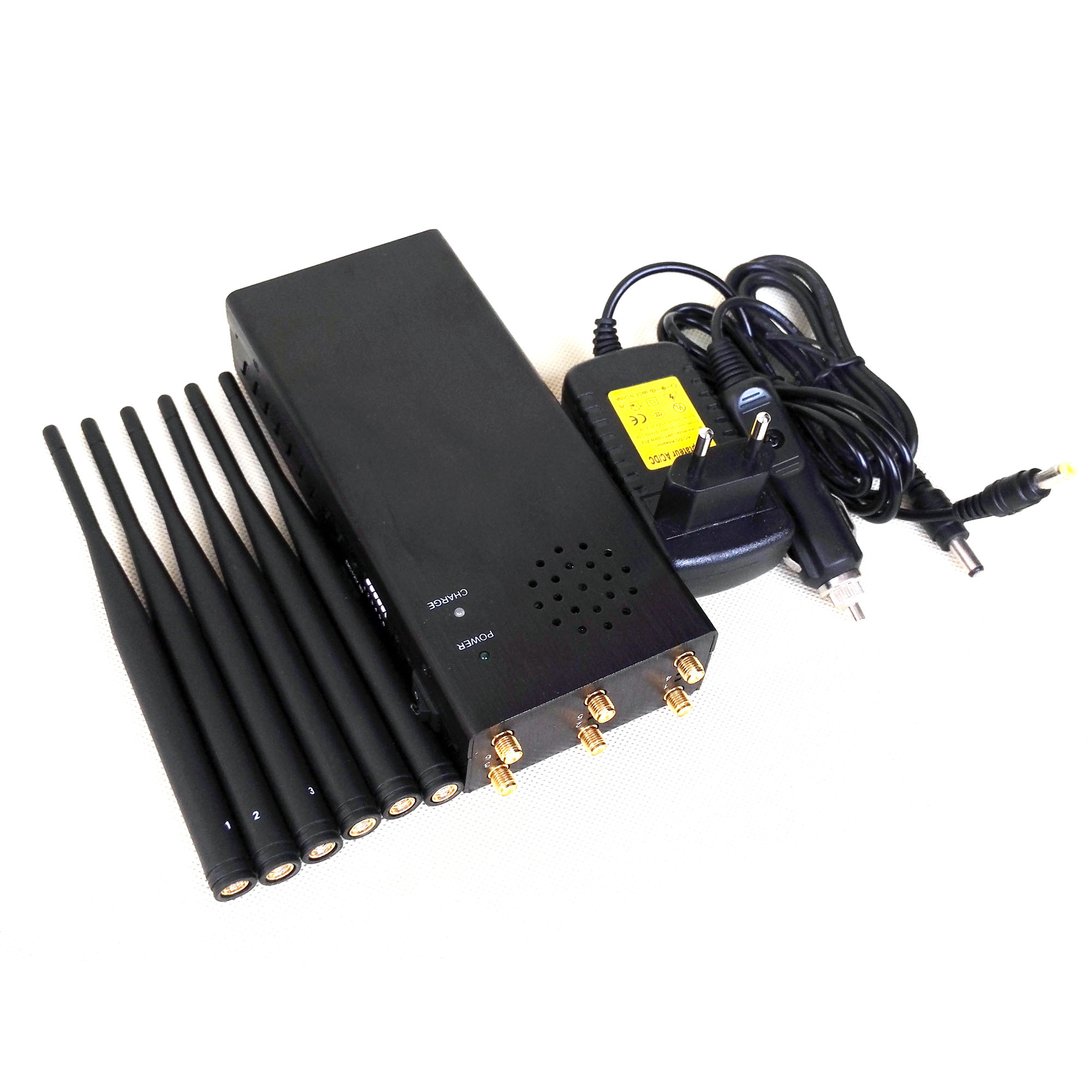

Package Contents：Jammer Host x 1, AC Charger x 1, Omni-antenna x6, DC12V car charger x1
Advantages:
★6-band 4.2W with NiMH battery 8000mAh work 3 hours + support use while battery charging (but do not suggest always use like that)
★High gain omni-antennas, jamming range up to 30m
★Each band can turn on/off, configured to block six different frequency bands continuously or simultaneously

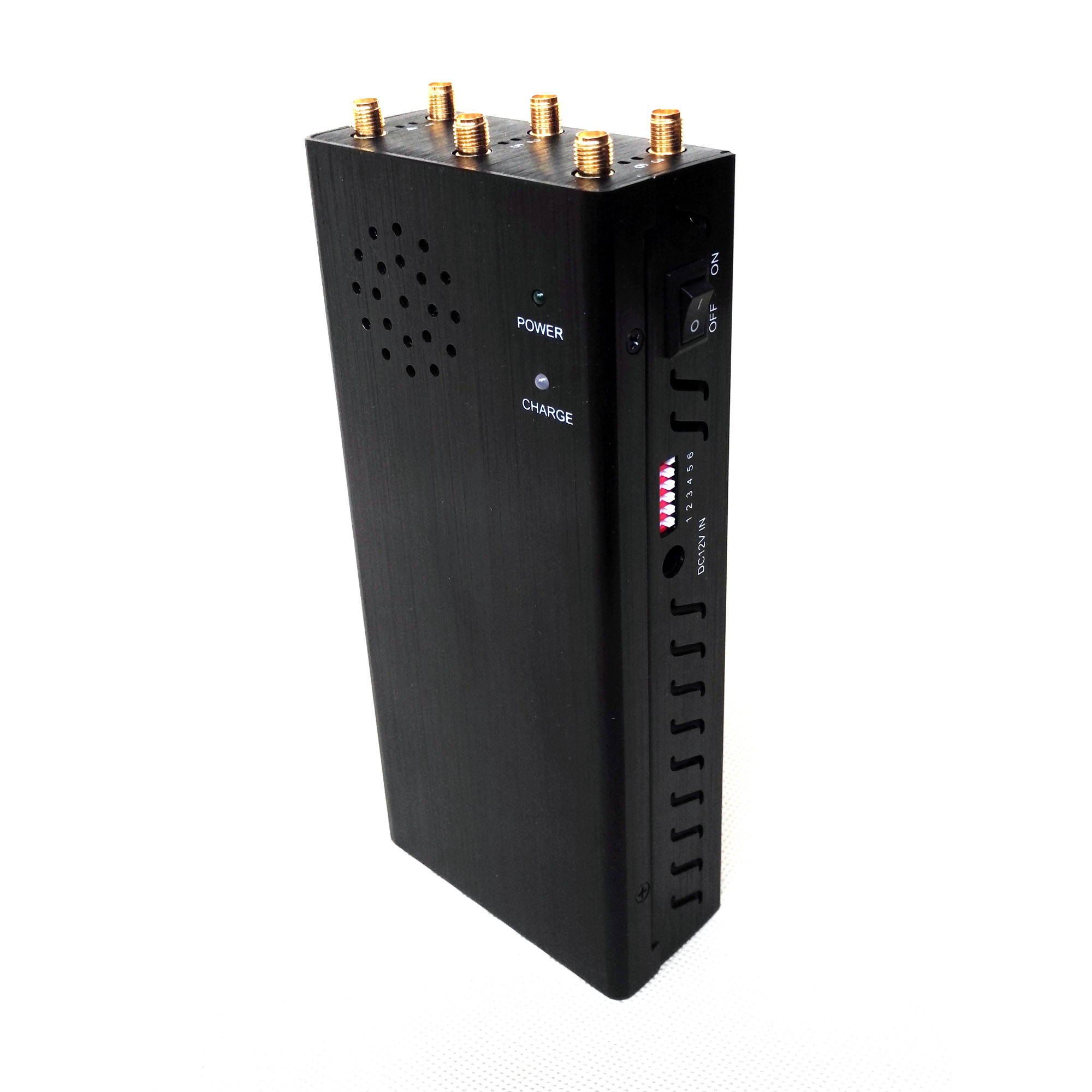

★With DIP switch, separate switch for each band, accompanied with working LED light
★Can be used in car directly, with car charger and AC charger
★Inside cooling fans and heatsink design ensure the device to work continuously
| Key Technical specifications : JAM-N6S |
|
Channel
|
Output port
|
Frequency range
|
Average out-putting power
|
|
1
|
LOJACK
|
167-175 MHz
|
28.5dBm/0.7W
|
|
2
|
GSM2G SIM for GPS
|
925-1000 MHz
|
28.5dBm/0.7W
|
|
3
|
Wi-Fi 2.4G+Spy camera
|
2400-2500MHz
|
28.5dBm/0.7W
|
|
4
|
GPS/Glonass L1
|
1570-1610MHz
|
28.5dBm/0.7W
|
|
5
|
GPSL3+L4+Spy camera
|
1280-1390MHz
|
28.5dBm/0.7W
|
|
6
|
GPSL2+L5+Spy camera
|
1170-1280MHz
|
28.5dBm/0.7W
|
|
Power supply: AC adapter 50 to 60Hz, (110-240V AC to 12V DC) Car Charger DC12V
|
|
Dimensions: (length, width, height) 177.5x76.5x36.5mm (not include antenna)
|
|
Packing size: 250x240x70mm Net weight: 1.2kg Gross weight: 1.5 kg
|
|
Total power: 4.2W
Shielding radius: (5-20) meters at -75dBm,Still depends on the strength signal in given area

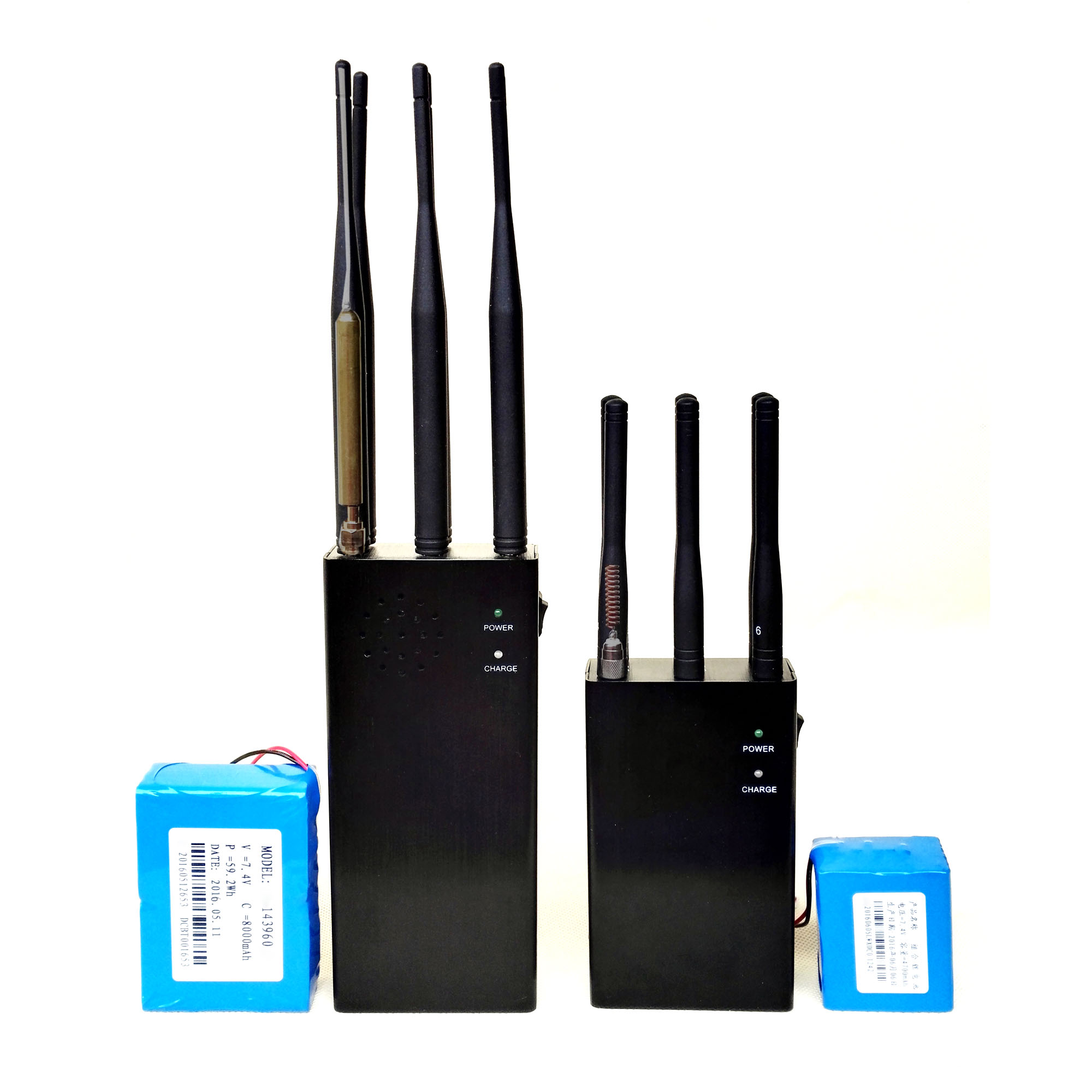

Built-in battery:7.4V/8000mAh,Continue working: more than 3+ hours
|
|
Warranty: one year from delivery date
|
|
|
OEM Customized service:
Customized for special frequency band , GPSL2 L3 L4,Wireless Camera 1.2GHz,4G1700MHz, etc
Silkscreen OEM service can be offered
Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
