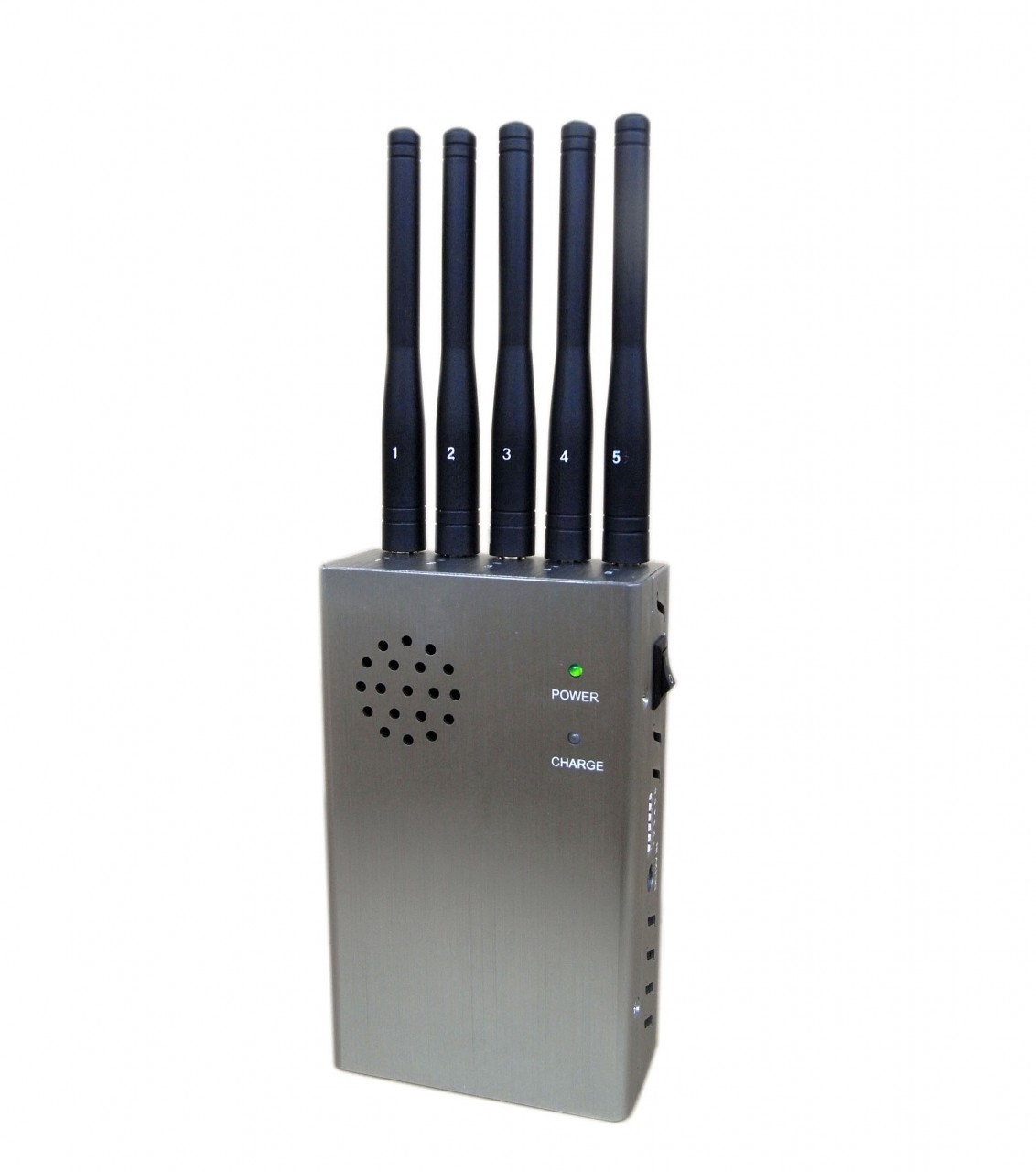

Product Description:
This selectable GPS LoJack 3G cell phone jammer designs with the ability to cut off the signals of the CDMA/GSM, DCS/PCS, 3G, GPSL1 and LoJack at the same time with 3W total output power so that the jamming distance is up to 20 meters to cut off the signals.
Basic Specifications:
Output Power：Total 2.5W，0.5W each band
Jam Radius：2-20meters
Power Supply：AC110-240V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 1 cooling fan
Working Time：Continue working 1.5 Hours
Product Size：126x76x35mm (not include antenna),
Product Weight: appr.0.7kg

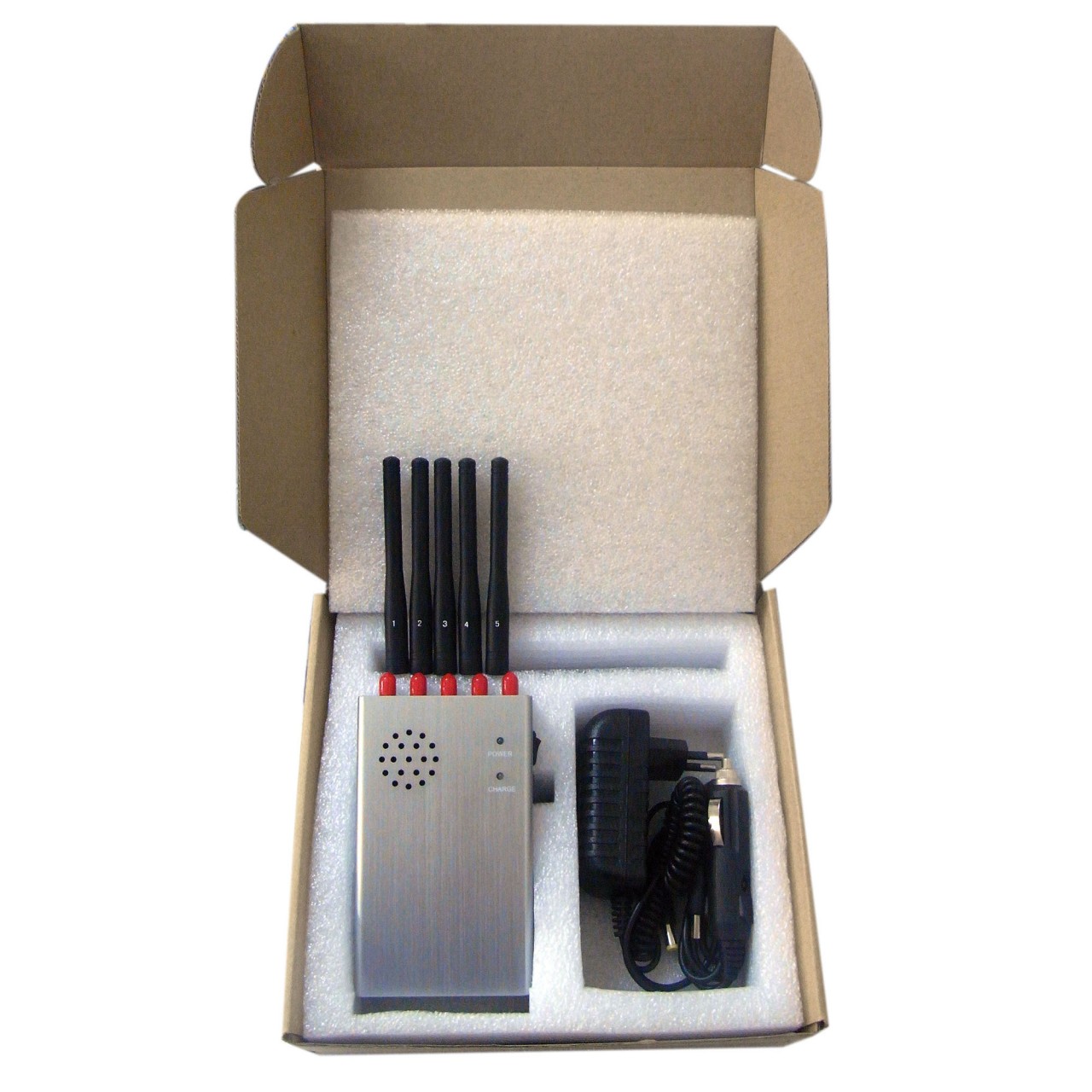

Package Contents：Jammer Host x 1, AC Charger x 1, Omni-antenna x5, DC12V car charger x1
Advantages:
★5 Bands 3.0W with Ni-Mh battery 4700Mah, Working 1.5 Hours Support use while battery charging.
★Shielding radius: (2-20) meters at -75dBm with high gain omni antennas

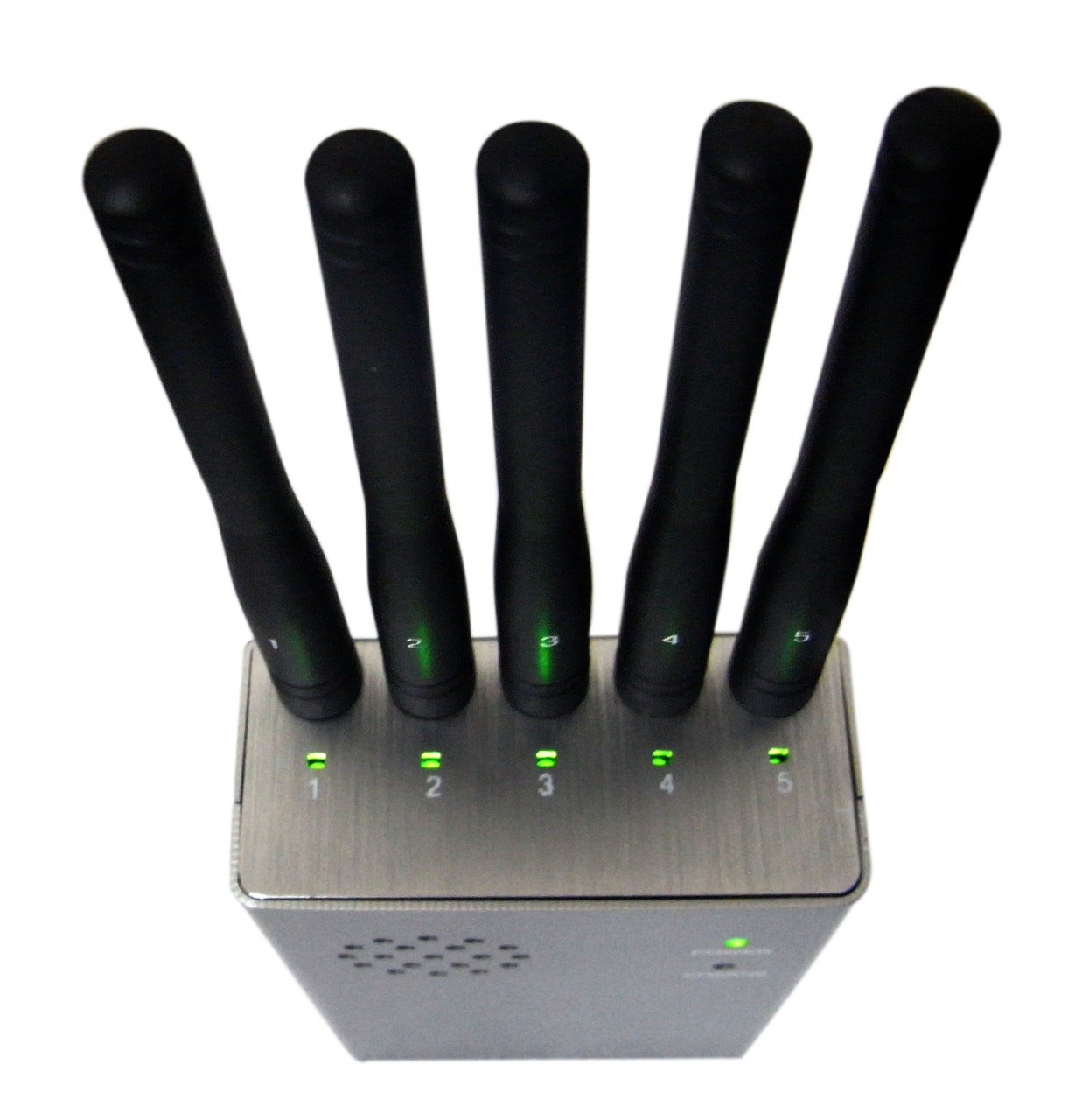

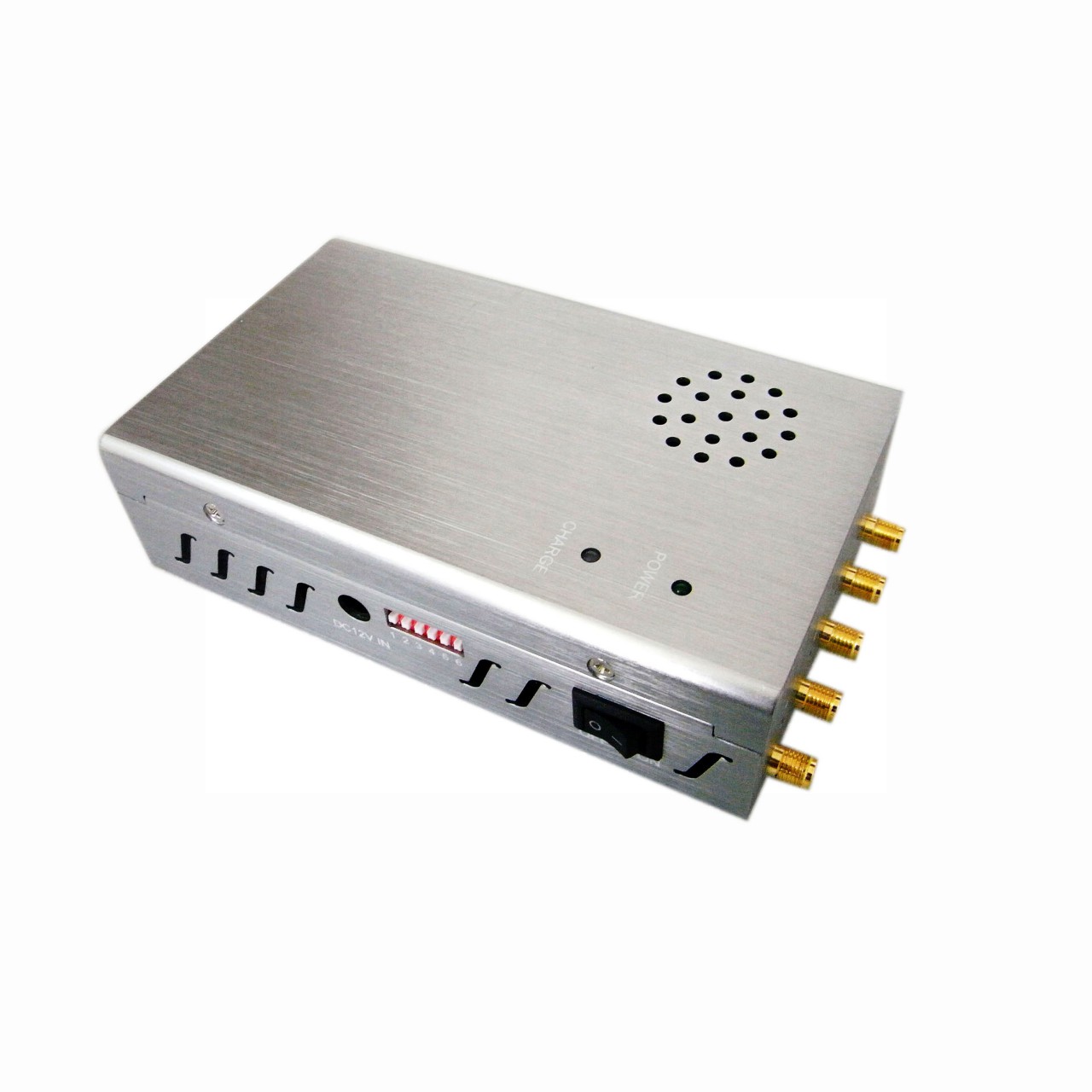

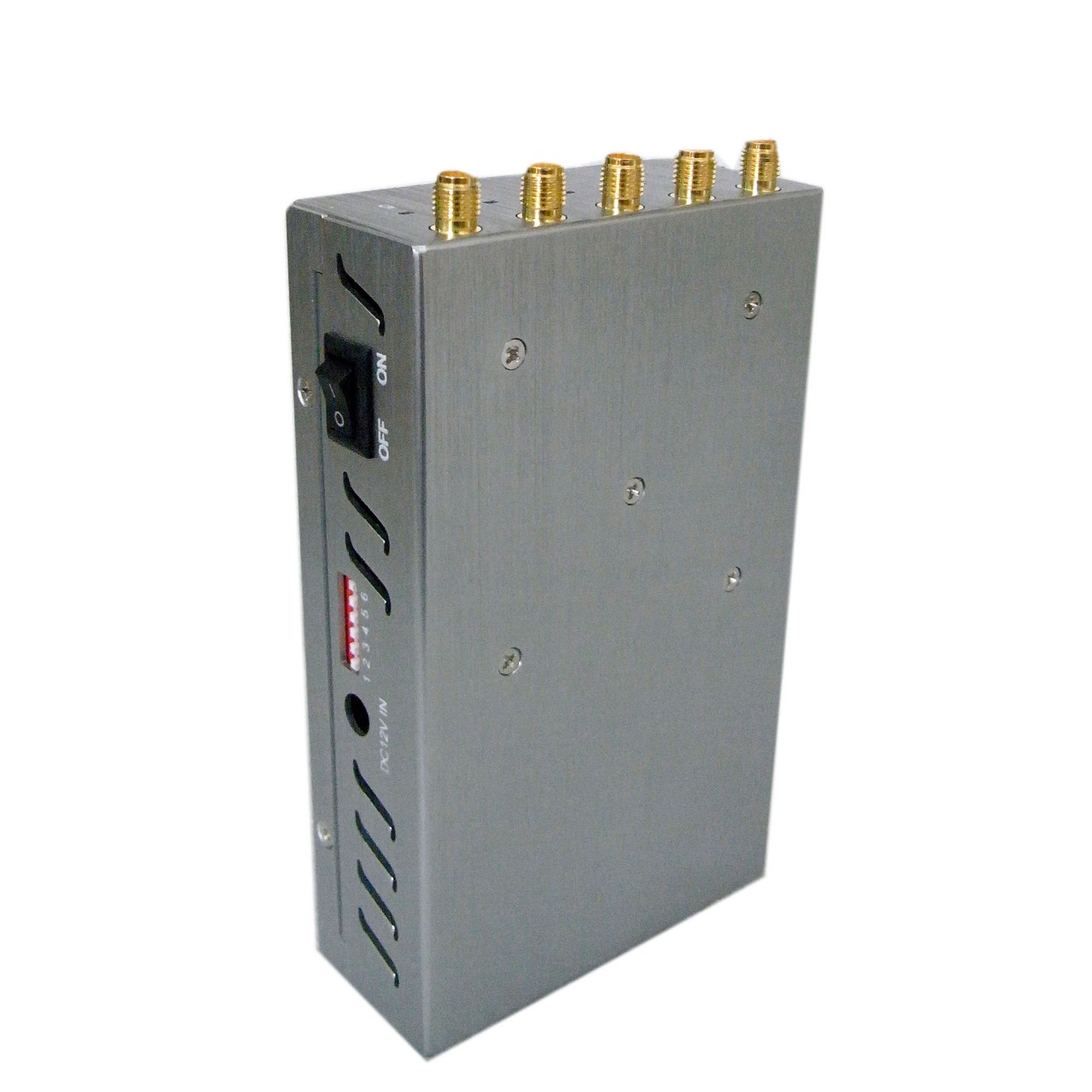

★With DIP switch, separate switch for each band, accompanied with a working LED light
★Could be used in car directly, with car charger and AC charger
★Inside cooling fans and Bigger heatsink design ensure the device to work continuously
| Key Technical specifications : JAM-P5L |
|
Channel
|
Output port
|
Frequency range
|
Average out-putting power
|
|
1
|
CDMA Or GSM
|
851-894 Or 925-960 MHz
|
27dBm/0.5W
|
|
2
|
DCS or PCS
|
| |
1805-1880 or 1920-1990MHz
|
|
27dBm/0.5W
|
|
3
|
3G
|
2110-2170MHz
|
27dBm/0.5W
|
|
4
|
GPSL1
|
1570-1580MHz
|
27dBm/0.5W
|
|
5
|
|
167-175 MHz
|
27dBm/0.5W
|
|
|
|
Power supply: AC adapter 50 to 60Hz, (110-240V AC to 12V DC) Car Charger DC12V
|
|
Dimensions: (length, width, height) 126x76x35mm (not include antenna)
|
|
Packing size: 220x202x65mm Net weight: 0.5kg Gross weight: 0.7kg
|
|
Total power: 2.5W
Shielding radius: (2-20) meters at -75dBm,Still depends on the strength signal in given area
Built-in battery:7.4V/4700mAh,Continue working: more than 1.5+ hours
|
|
Warranty: one year from delivery date
|
|
|
|
OEM Customized service:
Customized for special frequency band , GPSL2 L3 L4,Wireless Camera 1.2GHz,4G1700MHz, etc
Silkscreen OEM service can be offered
Applications:
o It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
