Product Description:

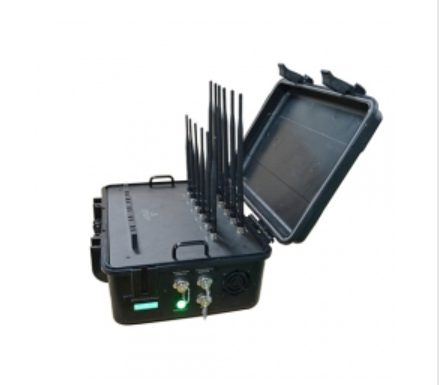

The one is professional suitcase portable High power mobile phone jammer for Cellphone 5G 3G 4GLTE/WIMAX Wi-Fi2.4G/5G GPS LOJACK UHF VHF Signal Jammer which are currently presented on the market. Build-in battery can works 1.5 hours. Also can customize for High power drone jammer model with 4-6 antennas which bring us a strong jamming ability to defend 100% drones UAVs, like Phantom 4, Phantom 3 Professional, advanced, standard series, inspire series.
Basic Specifications:
Output Power:Total 78W,3-10W each band
Jam Radius:10-80 meters,Still depends on the strength signal in given area
Power Supply:Battery DC24V and AC110-220V to DC24V adapter
Cooling System:High efficiency aluminum alloy radiator+ 5x cooling fans
Working Time:Build-in DC24V Battery working 1 hours
Product Size: 470 x 357 x 176 mm(not Include Antenna)
Product Weight: appr.12kg (for OMNI antennas)
Package Contents:Jammer Host x 1, Battery Charge x 1, antenna x 12,AC Plug x 1
Advantages:
★Output power total 78w, shielding 10-80m,Still depends on the strength signal in given area.
★Each unit can jam up to 12 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0)
★5 pieces cooling fans, not-stop to work with build-in AC adapter
★Build-in Battery 24V10Ah or more, continue working more 1.5 hour, Battery Power and charger stative display via LED screen
★Suitcase portable design, option to external battery using also.
| Key Technical specifications : JAM-S12 | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | CDMA or GSM | 851-894 Or 925-960 MHz | 39dBm/8W |
| 2 | DCS or PCS | 1805-1880 or 1920-1990MHz | 37.8dBm/6W |
| 3 | 3G | 2110-2170MHz | 37.8dBm/6W |
| 4 | 4G1 LTE | 700-803 or 790-862MHz | 39dBm/8W |
| 5 | 4G Wimax | 2500-2690 or 2300-2400MHz | 37dBm/5W |
| 6 | WIFI2.4G | 2400-2500MHz | 37dBm/5W |
| 7 | VHF/LOJACK | 135-175MHz | 37dBm/5W |
| 8 | GPSL1 | 1570-1610MHz | 37dBm/5W |
| 9 | GPSL2L5 | 1170-1280 MHz | 37dBm/5W |
| 10 | GPSL3L4 | 1370-1390 MHz | 37dBm/5W |
| 11 | WIFI 5.2G | 5100-5500 MHz | 35dBm/3W |
| 12 | WIFI 5.8G | 500-5900 MHz | 35dBm/3W |
| Power supply: AC adapter 50 to 60Hz, (AC110 Or 240V -DC12V ) | |||
| Dimensions: (length ,width, height) 465x 365x 185mm | |||
| Packing size: 540X500X270mm Net weight:14 kg Gross weight: 15 kg | |||
| Build -in Battery :24 V 10Ah , Working time : 1.5 hours | |||
| Total power:78W Shielding radius: (10-80) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
