Product Description:

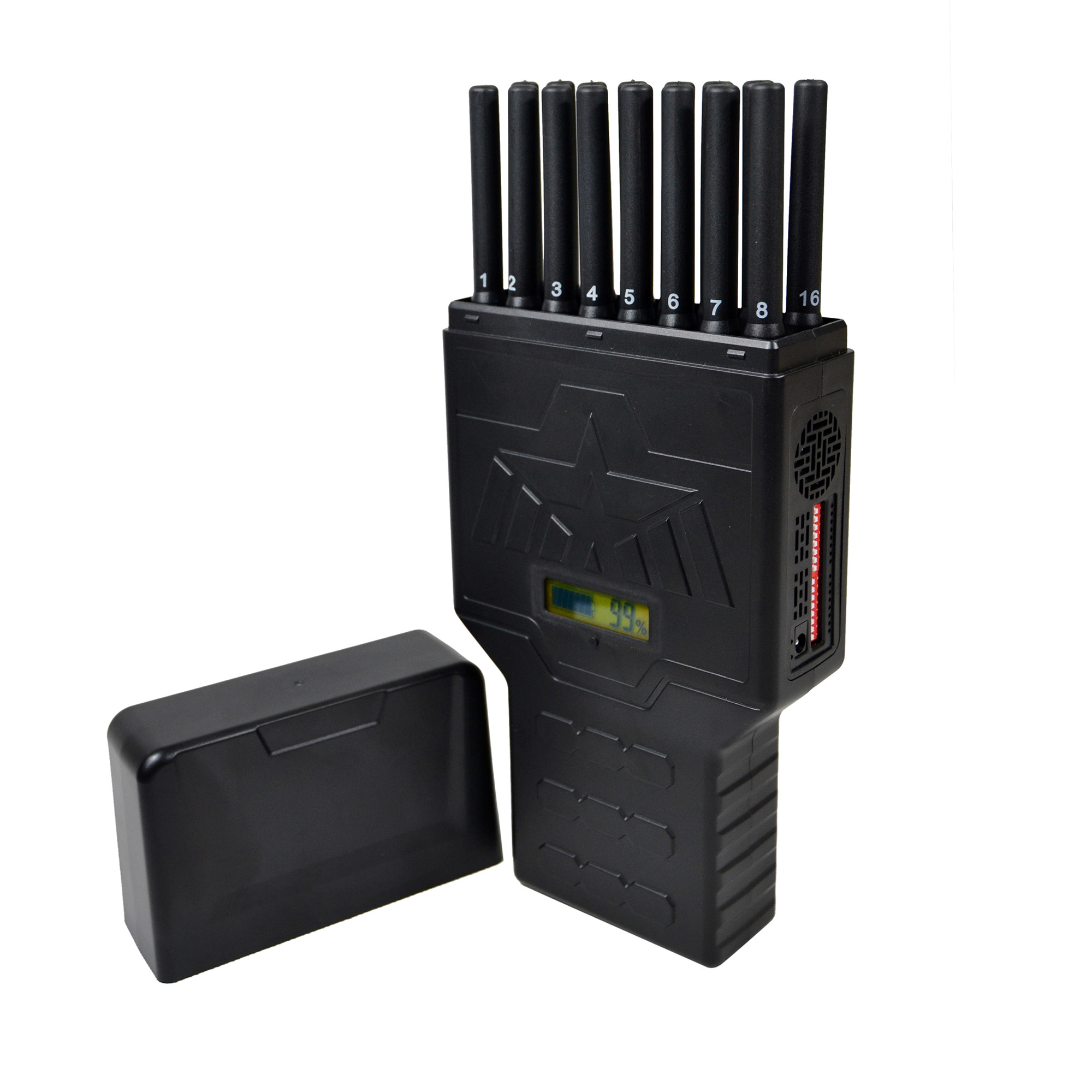

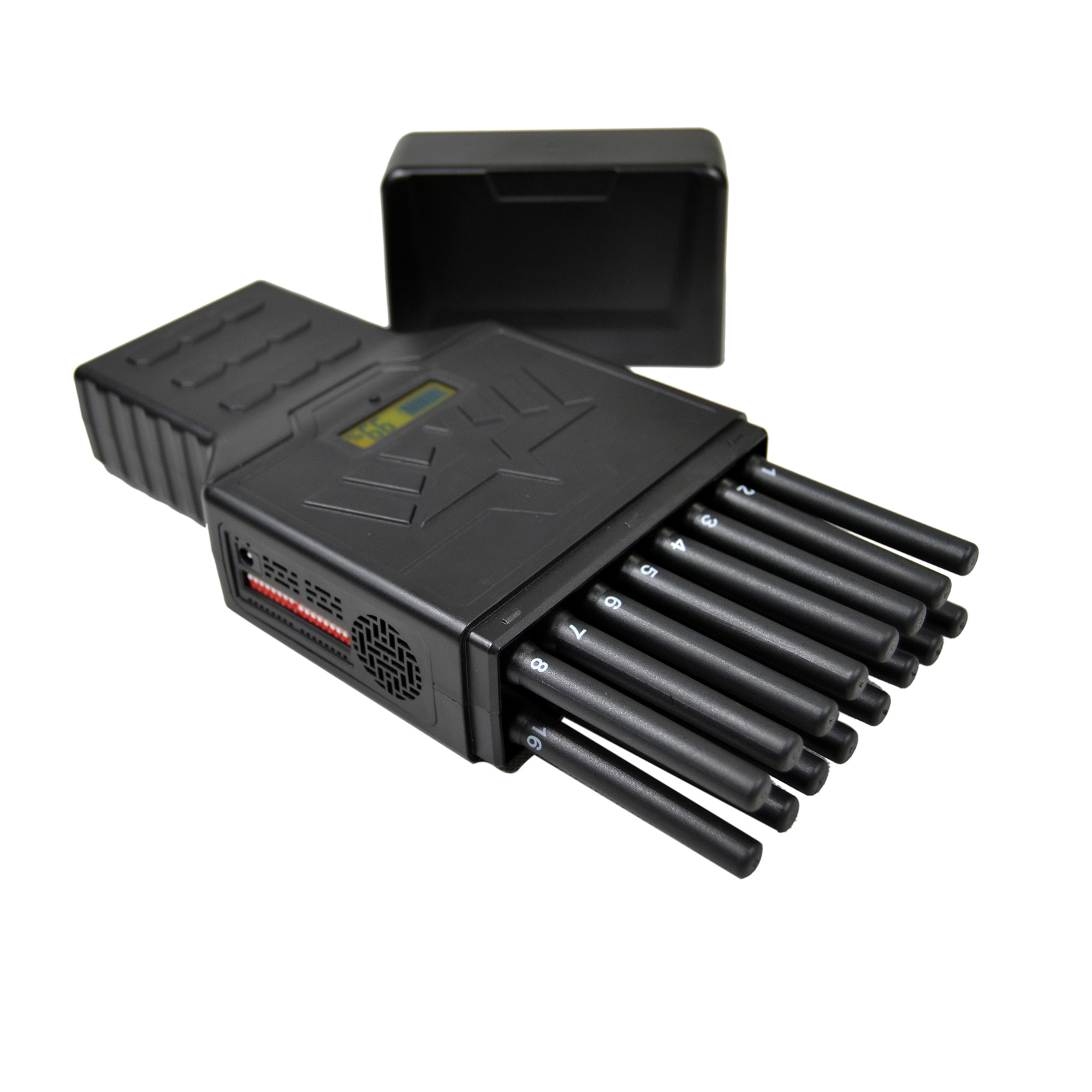

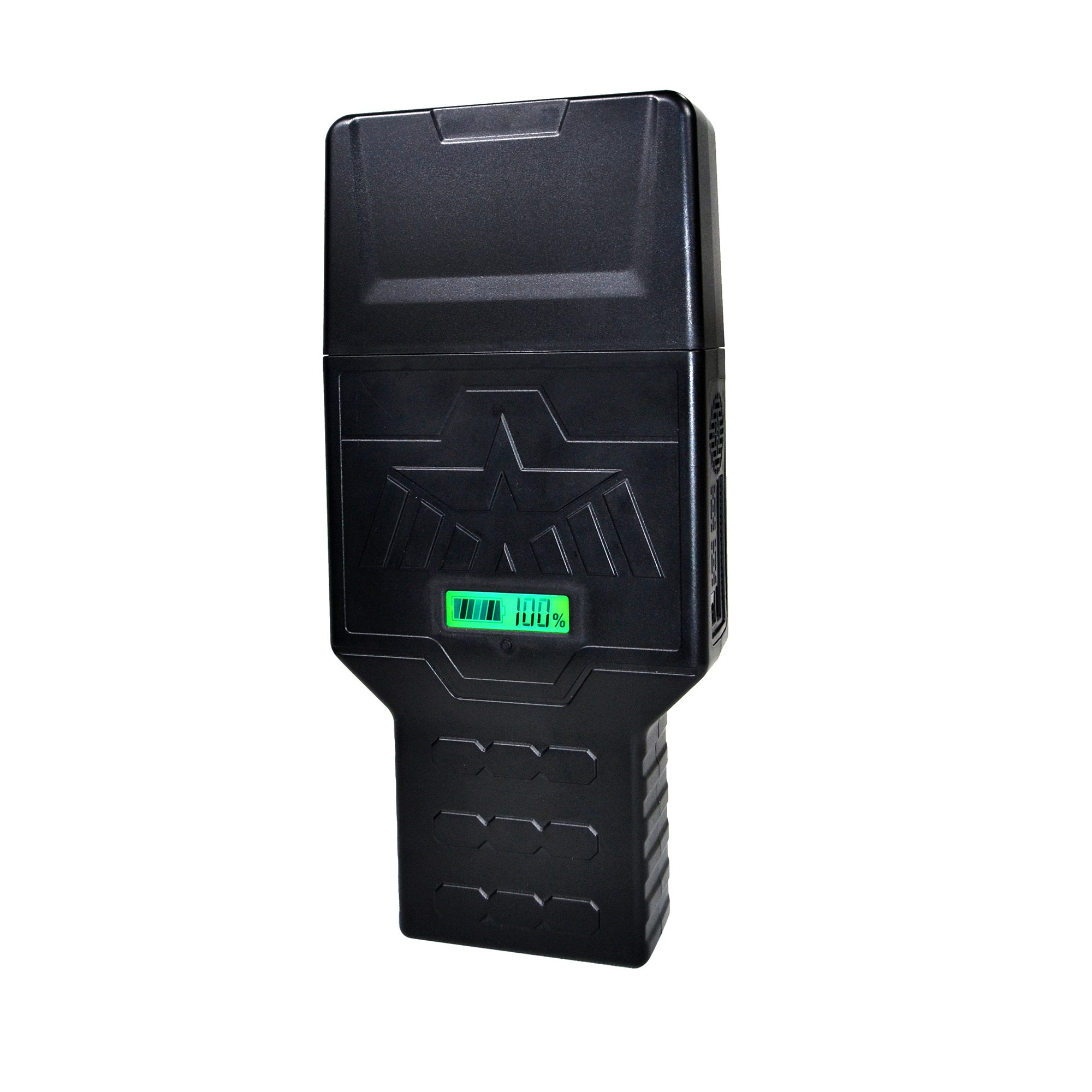

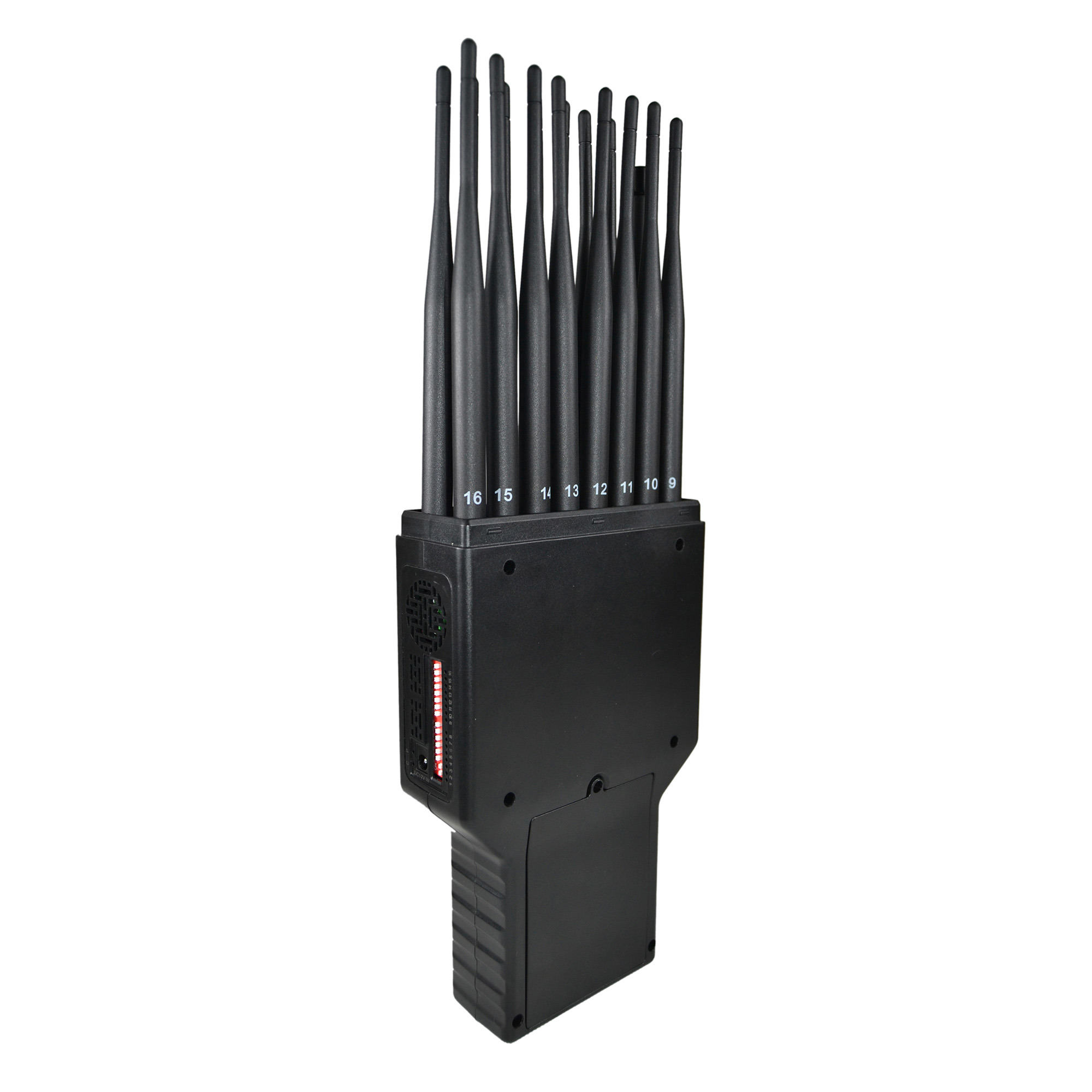

The latest unique design portable wireless signal Jammer with 16 antnnas to block all mobile phone 2G, 3G, 4G 5GLTE, Jamming LOJACK GPS, Wi-Fi 5G UHF/VHF signals too, Built-in big battery working 2+hours, Capacity and Woking Current &Volts LCD display.
Basic Specifications:
Jam Signal Type:Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G/5GLTE+ GPSL1-L5 +UHF/VHF Walkie-Talkie+LOJACK+RC433 315 868
Output Power：Total 16W，1W each band
Jam Radius：10-20meters
Power Supply：AC110-240V to DC12V
Cooling System：High efficiency aluminum alloy radiator, Build-in 3x cooling fan
Working Time：Built-in battery:7.4V/12000mAh Continue working: more than 2.0+ hours
Product Size：280x130x46 mm（with hidden omni Antenna）
Product Weight: appr.2.0kg

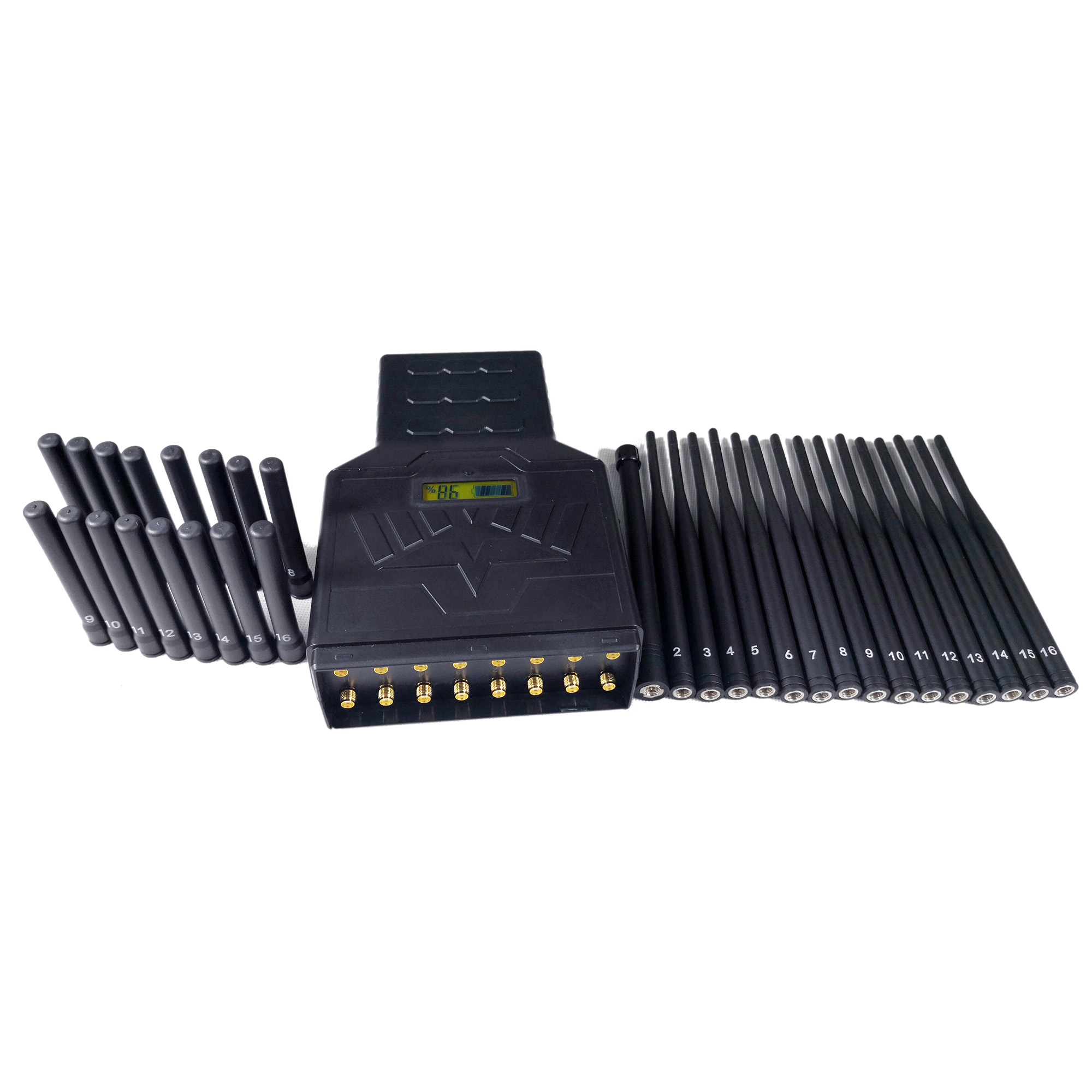

Package Contents：Jammer Host x 1, AC Charger x1, omni antenna x16, Car Charger x1, External high gain antenna x16(option)
Advantages:
| Key Technical specifications : JAM-N16-5G-US | |||
| Channel | Output port | Frequency range | Average out-putting power |
| Band 1 | CDMA&RC868&GSM | 851-960MHz | 1 W |
| Band 2 | DCS&PCS | 1805-1990 MHz | 1 W |
| Band 3 | 3G | 2100-2170 MHz | 1 W |
| Band 4 | 4G 700 | 700-803 MHZ | 1 W |
| Band 5 | 4G 2600 | 2496-2690MHz | 1 W |
| Band 6 | 4GLTE 600 Or RC 315 | 617-652 Or 315 MHz | 1 W |
| Band 7 | 4GLTE 1700 Or GPSL3L4 | 1700-1800 Or 1370-1390MHz | 1 W |
| Band 8 | 5GLTE | 3700-3600 MHZ | 1 W |
| Band 9 | 5GLTE2 | 3600-4200 MHz | 1 W |
| Band 10 | WIFI2.4G&4G2300 | 2345-2500 MHz | 1 W |
| Band 11 | WIFI5.2G | 5100-5500MHz | 1 W |
| Band 12 | WIFI5.8G | 5500-5900MHz | 1 W |
| Band 13 | GPSL1 | 1570-1580MHz | 1 W |
| Band 14 | GPSL2+L5 | 1170-1280MHz | 1 W |
| Band 15 | VHF & LOJACK | 135-174MHz | 1 W |
| Band 16 | UHF & RC 433 | 400-470 MHz | 1 W |
| Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger: DC12V IN | |||
| Dimensions: (length ,width, height) 280x130x46mm (include hidden antenna) Lenth gof antenna :166mm Gain:2.0dbi |
|||
| Packing size: 330*250*80m Net weight: 1.5kg Gross weight: 2.0kg |
|||
| Total power: 16W Shielding radius: (10-20) meters at -75dBm Still depends on the strength signal in given area Built-in battery:7.4V/12000mAh Continue working: more than 2.0+ hours |
|||
| Warranty: one year from delivery date | |||
