Product Description:
This is designed with 16 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G mobile phone signals, but also jam Wi-Fi GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. all-in-one jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 60meters
Basic Specifications:
Jam Signal Type：
1:JAM-A16-A:Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1L2L3L4L5 +Walkie-Talkie UHF/VHF+ Wireless Camera 1.2GHz+LOJACK+315+433
2:JAM-A16-B: Full Bands Cellphone 4G/3G/2G +WiFi2.4G5.8G+ GPSL1L2L5 + Romote control 315 +433+868+LOJACK
Output Power：Total 40W，1-3W each band
Jam Radius：30-60 meters
Power Supply：AC110-240V to DC12V

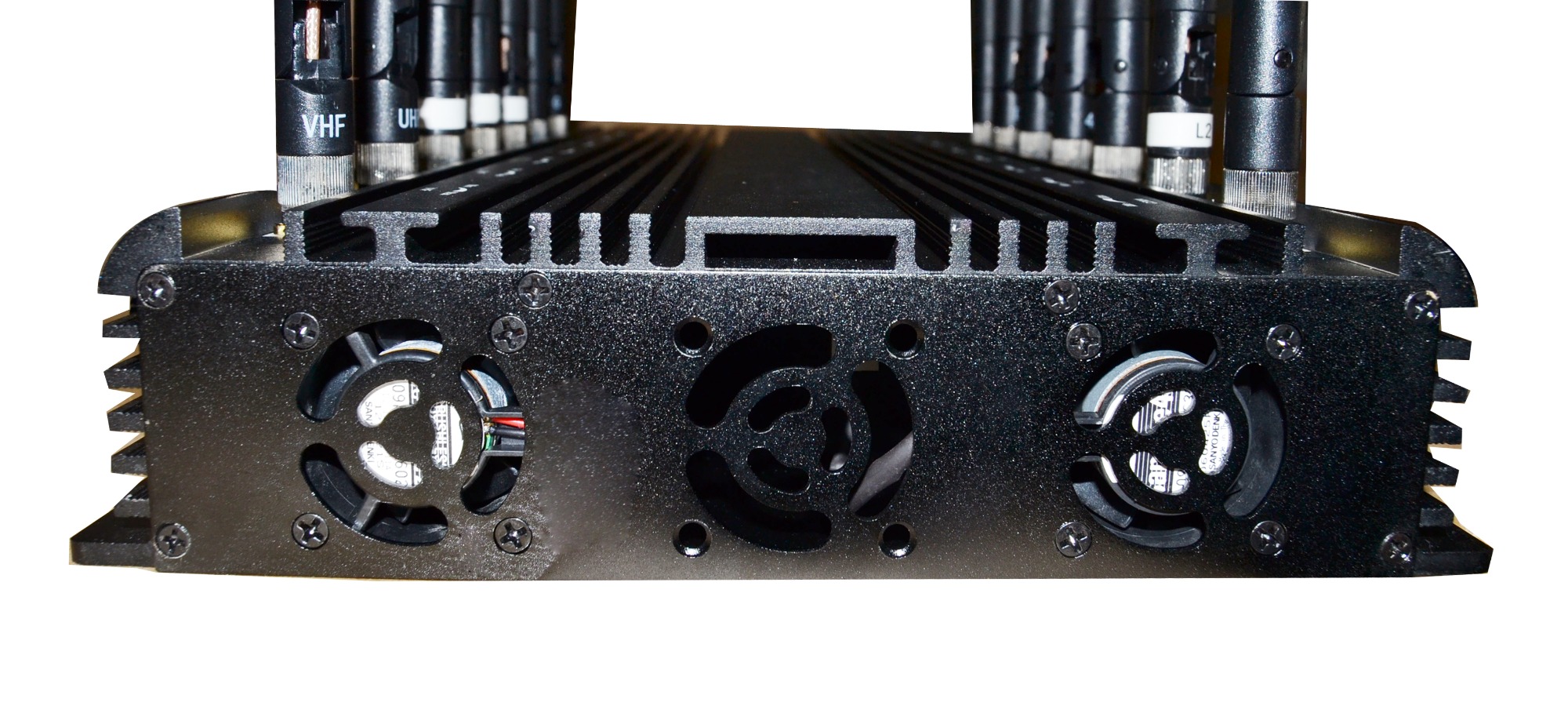

Cooling System：High efficiency aluminum alloy radiator, Build-in 4 cooling fan
Working Time：Not-stop Working
Product Size：410x 238x 60 mm（not Include Antenna）
Product Weight: appr.6.5kg

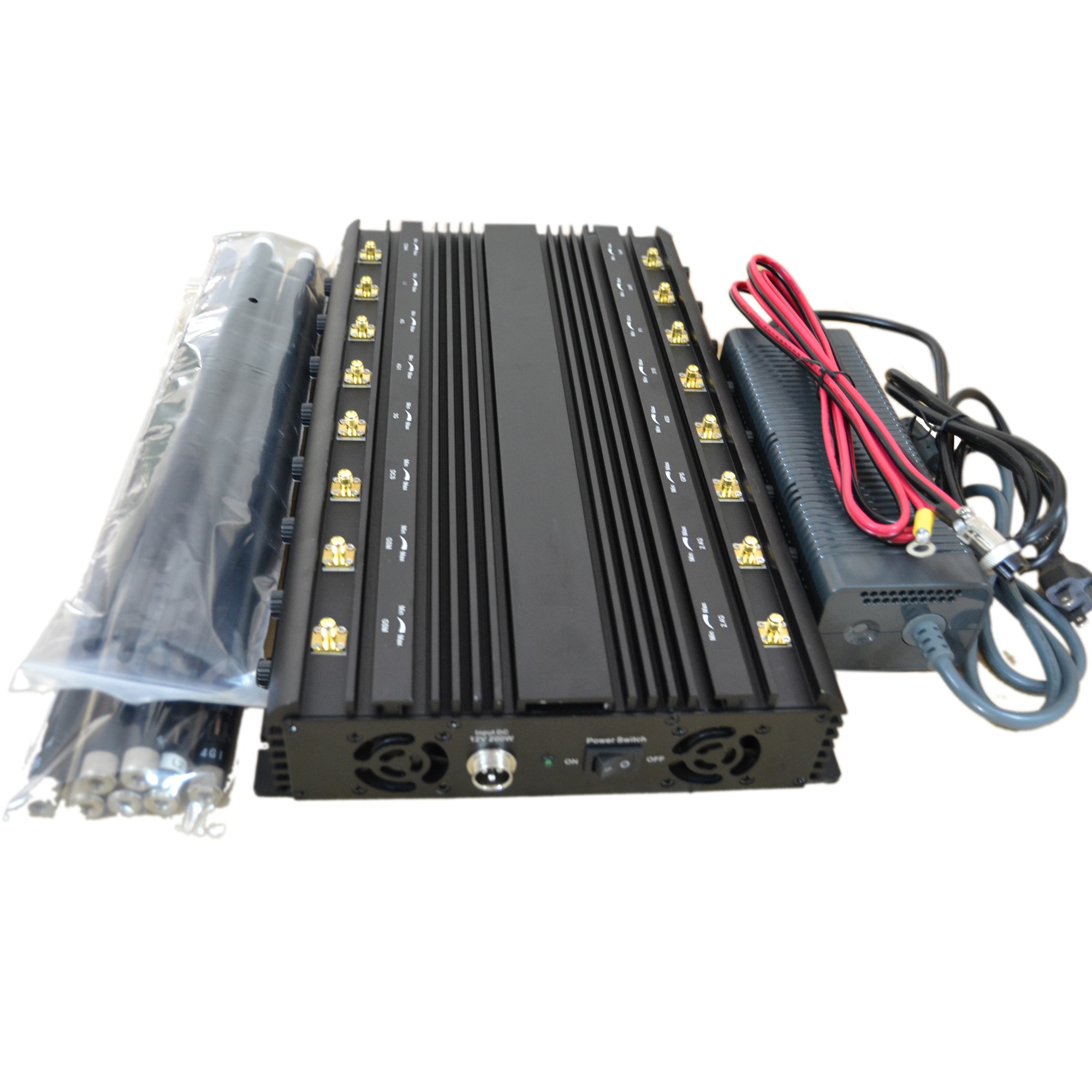

Package Contents：Jammer Host x 1, AC adapter x 1,antenna x16,Car storage battery cable x1
Advantages:
| Key Technical specifications : JAM-A16-A | |||||||||||||||||
| Channel | Output port | Frequency range | Average out-putting power | ||||||||||||||
| 1 | VHF | 130-190MHz | 35dbm / 3W | ||||||||||||||
| 2 | UHF or CDMA450 | 400-470 or 450-470MHz | 35dbm / 3W | ||||||||||||||
| 3 | RC315 | 315MHz | 35dbm / 3W | ||||||||||||||
| 4 | RC433 | 433MHz | 35dbm / 3W | ||||||||||||||
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W | ||||||||||||||
| 6 | 4G2 LTE 1700 | 1710-1780MHz | 33dbm / 2W | ||||||||||||||
| 7 | GSM or CDMA | 925-960 or 850-894MHz | 35dbm / 3W | ||||||||||||||
| 8 | DCS or PCS | 1805-1880-1920-1990MHz | 33dbm / 2W | ||||||||||||||
| 9 | 3G | 2110-2170MHz | 33dbm / 2W | ||||||||||||||
| 10 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W | ||||||||||||||
| 11 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W | ||||||||||||||
| 12 | GPSL1 | 1570-1580MHz | 33dbm / 2W | ||||||||||||||
| 13 | GPSL2+L5 or Wireless Camera 1 | 1170-1280MHz | 33dbm / 2W | ||||||||||||||
| 14 | GPSL3+L4 or Wireless Camera 2 | 1280-1390MHz | 33dbm / 2W | ||||||||||||||
| 15 | Wireless Camera 3 | 1000-1170MHz | 33dbm / 2W | ||||||||||||||
| 16 | LOJACK& XM radio | 167-175MHz | 35dbm / 3W | ||||||||||||||
|
|||||||||||||||||
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||||||||||||||||
| Dimensions: (length ,width, height) 410x 238x 60mm（not Include Antenna） | |||||||||||||||||
| Packing size: 49*44*15cm Net weight: 6kg Gross weight: 7.0kg | |||||||||||||||||
| Total power:40W Shielding radius: (30-60) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||||||||||||||||
| Warranty: one year from delivery date | |||||||||||||||||
| Key Technical specifications : JAM-A16-B | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | RC315 | 315MHz | 35dbm / 3W |
| 2 | RC433 | 433MHz | 35dbm / 3W |
| 3 | RC868 | 868MHz | 35dbm / 3W |
| 4 | LOJACK& XM radio | 167-175MHz | 35dbm / 3W |
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 6 | 4G2 LTE 1700 | 1710-1780MHz | 33dbm / 2W |
| 7 | CDMA | 851-894MHz | 35dbm / 3W |
| 8 | GSM | 925-960MHz | 35dbm / 3W |
| 9 | DCS&PCS | 1805-1990MHz | 33dbm / 2W |
| 10 | 3G | 2110-2170MHz | 33dbm / 2W |
| 11 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 12 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W |
| 13 | WIFI 5.8G | 5725-5850MHz | 30dbm / 1W |
| 14 | WIFI5.2G | 5100-5500 MHz | 30dbm / 1W |
| 15 | GPSL2+L5 | 1170-1280MHz | 33dbm / 2W |
| 16 | GPSL1 | 1570-1580MHz | 35dbm / 3W |
| Power supply: AC adapter 50 to 60Hz, (110-240V AC-12V DC) Car storage battery Charger DC12V | |||
| Dimensions: (length ,width, height) 410x 238x 60mm（not Include Antenna） | |||
| Packing size: 49*44*15cm Net weight: 6kg Gross weight: 7.0kg | |||
| Total power:40W Shielding radius: (30-60) meters At -75dBm Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters |
|||
| Warranty: one year from delivery date | |||
