Product description:
The latest All-in-one design portable wireless signal Jammer, 12 bands jamming all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that use 2G, 3G, 4G, and CDMA 450Mhz, Block LOJACK GPS, Wi-Fi 5G, Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868 is popular in 2019 and in years to come
Main Features:
★The latest handheld design 12 All-in-one frequencies blocking all cell phone signals,GPS, Wi-Fi, RF signals
★12 watt high output power and high gain antennas, Jamming range 10 to 20 meters (at-75dBm, depends on signal strength in given area)
★Good cooling system with cooling fans inside and bigger hot sink.

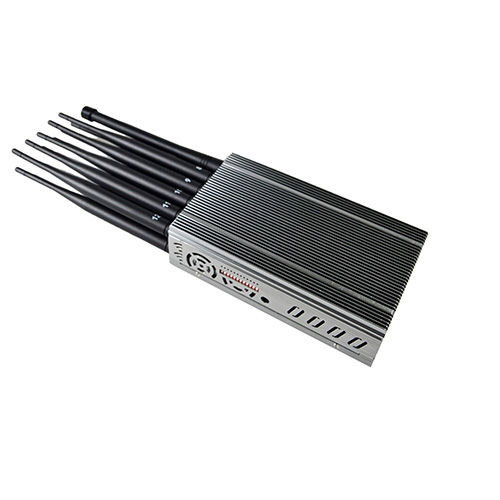

★ With DIP switch, can turn on/off any signal band without affect other bands
★ With car charger, can used in car directly, 12V DC/AC power supply is also available
★With built-in bigger battery, can work more than (2.0+ hours) 120 minutes, can be repeated charging

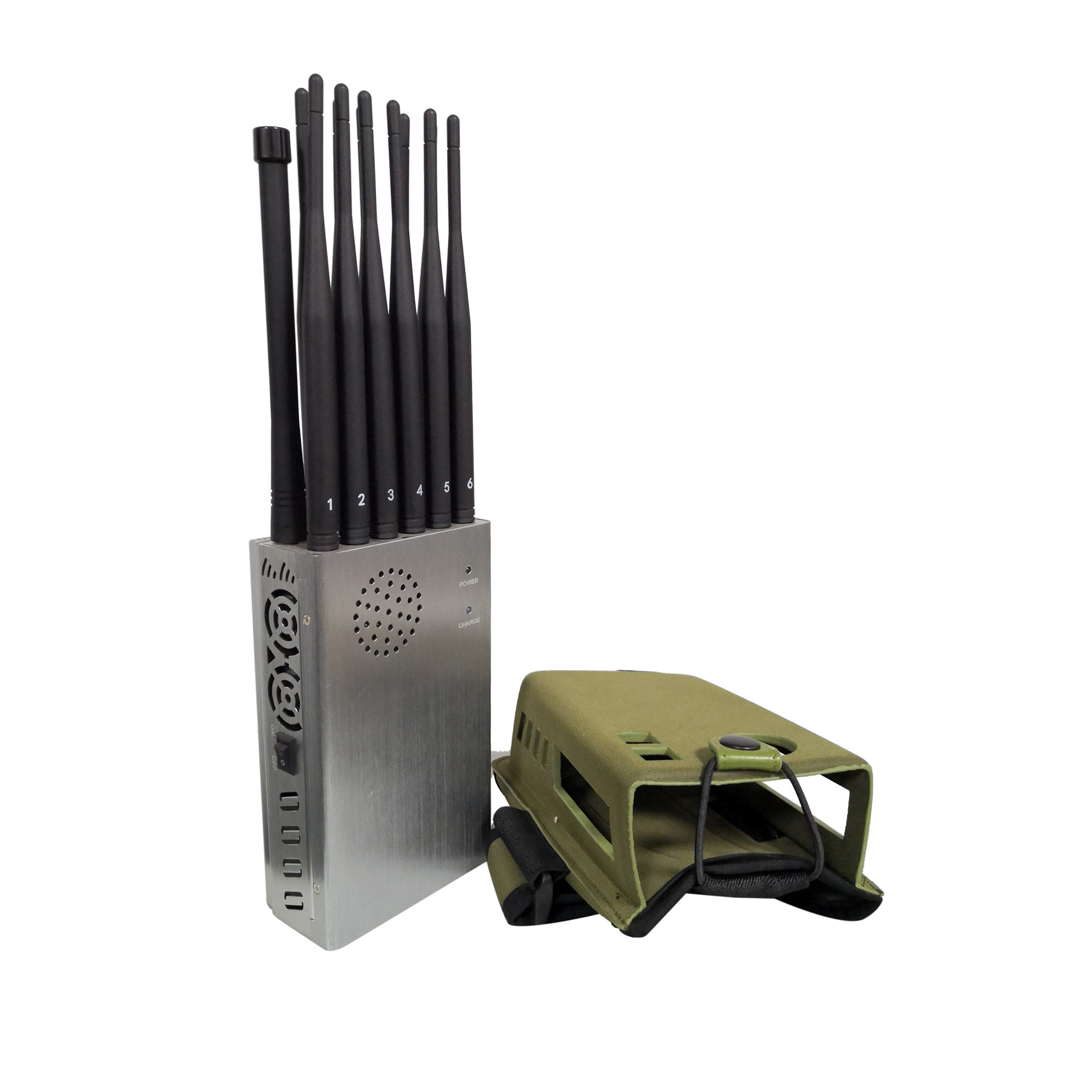

★Nylon cover for protect and portable
Jam Signal Type:JAM-N12-A:Full Bands Mobile Phone 4G/3G/2G +WiFi2.4G+ GPSL1 lL2L5+Remote control 315/433/868
| Key Technical specifications :JAM-N12-A |
| Channel |
Output port |
Frequency range |
Average out-putting power |
| 1 |
CDMA |
850-894 MHz |
28.5dBm/1W |
| 2 |
GSM |
925-960MHz |
28.5dBm/1W |
| 3 |
DCS&PCS |
1805-1880 Or 1920-1990 MHz |
28.5dBm/1W |
| 4 |
WIFI 2.4G |
2400-2500 MHz |
28.5dBm/1W |
| 5 |
GPSL1 |
1570-1580 MHz |
28.5dBm/1W |
| 6 |
GPSL2+L5 |
1170-1280 MHz |
28.5dBm/1W |
| 7 |
4GLTE 700 |
700-803 or 790-862MHz |
28.5dBm/1W |
| 8 |
4G2600 or 2300 |
2500-2690 or 2300-2400MHz |
28.5dBm/1W |
| 9 |
3G |
2110-2170MHz |
28.5dBm/1W |
| 10 |
315 |
315 MHz |
28.5dBm/1W |
| 11 |
433 |
433 MHz |
28.5dBm/1W |
| 12 |
868 |
868 MHz |
28.5dBm/1W |
| Power supply:Adapter 50 to 60Hz AC (110-240V AC/12V DC) Car Charger:DC12V IN |
Dimensions: (length ,width, height) 165*96*46mm (not include antenna)
Length of antenna :166mm Gain:2.0dbi |
| Packing size: 25*24*8cm Net weight: 1.5kg Gross weight: 2.0kg |
Total Output Power: 8.4W ,0.7W each band
Shielding radius: (10-20) meters at -75dBm Still depends on the strength signal in given area
Working Time:Built-in battery:7.4V/10000mAh Continue working: more than 2.0+ hours
Cooling System：High efficiency aluminum alloy radiator, Build-in cooling fan |
| Warranty: one year from delivery date |

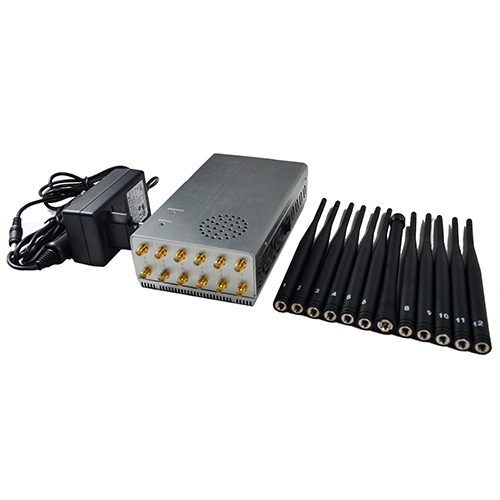

Package contents：Jammer Host x 1, AC Charger x1,antenna x12,Car Charger x1,Nylon Cover x1
|
OEM customized service:
Customized for special frequency band , Wi-Fi5G 3.6GHz, Wireless Camera 1.2GHz etc
Silkscreen OEM service can be offered
Applications:
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security.For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
