World First 22 Antennas Wireless Signal Jammer For Full Bands 5GLTE 2G 3G 4G Wi-Fi GPS LOJACK Output Power 42Watt With Infrared Remote Control(US &South American Version)

Item No.: JAM-A22-US
This is the latest 2019 designed with 22 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315
Description

Product Description:
This is the latest 2019 designed with 22 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals.  All-in-one jammer is powerfull to blocks all the signals, The jamming radius up to 60meters

Basic Specifications:
Jam Signal Type:Full Bands Mobile Phone 5GLTE 4G/3G/2G +WiFi2.4G/5.8G+ GPSL1-L5 +Walkie-Talkie UHF/VHF+ Remote Control 433/315/868
Output Power:Total 45W,1-3W each band
Jam Radius:30-60meters
Power Supply:AC110 or 220V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 5 cooling fan
Working Time:Not-stop Working
Product Size:450x 238x 60 mm(not Include Antenna)
Product Weight: appr.8kg

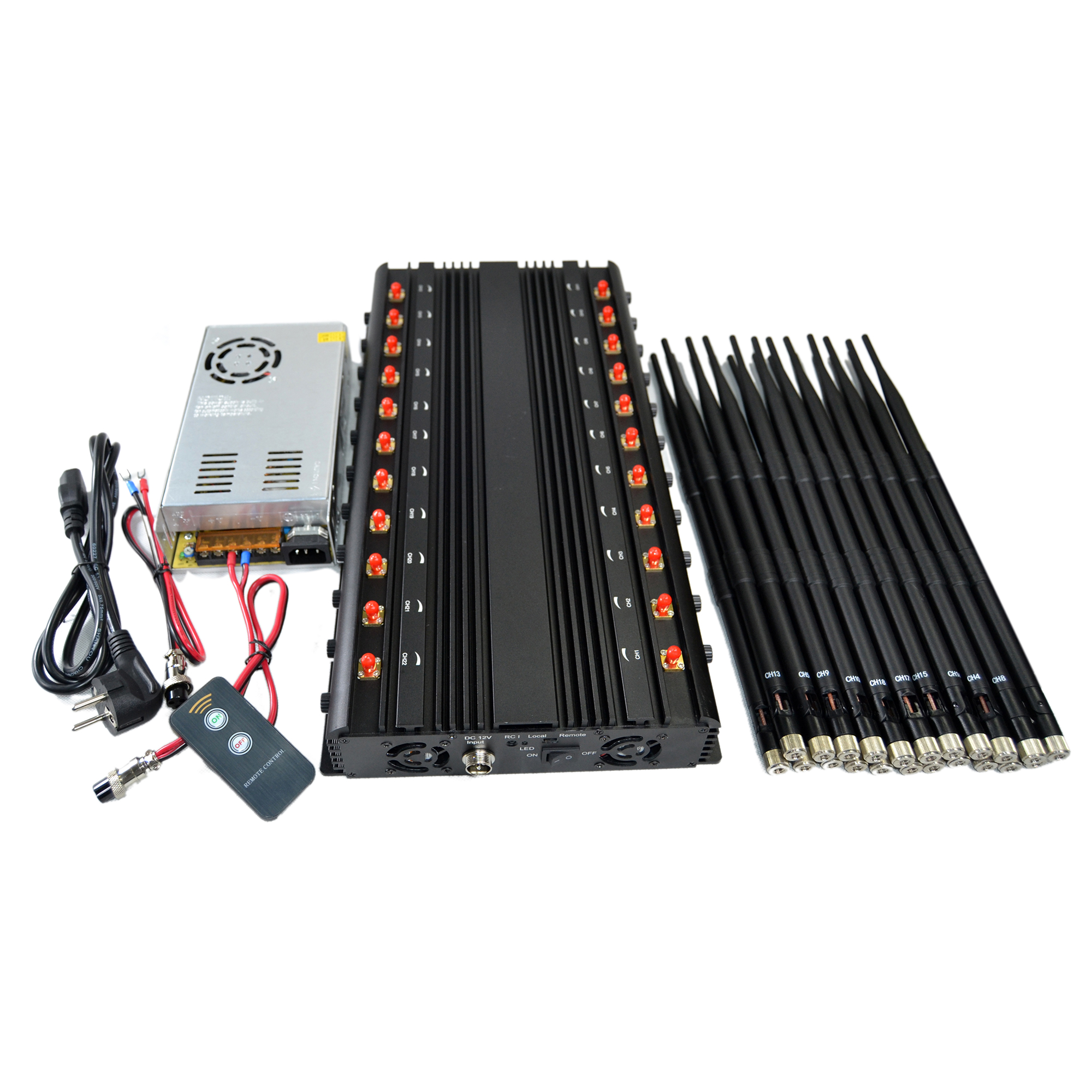

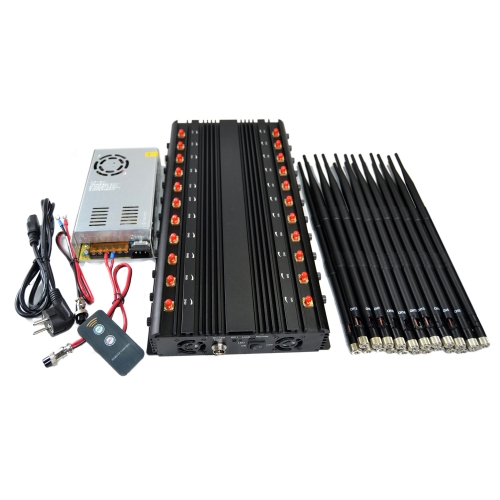

Package Contents:Jammer Host x 1, AC adapter x 1,antenna x22,Car storage battery cable x1, Infrared Remote Control x1

Advantages:

★Full bands 22 chancel design, Customized for special frequency range
★High output power, Total up to: 45W , jamming up to 60m (Still depends on the strength signal in given area)
★External Omni-directional antennas all the TX frequency covered down link only
★With Car storage battery Charger DC12V can be used in car
★Built-in good cooling system inside, Working non-stopped
★Can adjust or turn off any single band without influencing the other bands operation
2-5meters with Infrared Remote Control Turn ON /OFF Power


Key Technical specifications :JAM-A22-US
Channel Output port Frequency range                        Average out-putting power
1 CDMA/RC868 850-894MHz 35dbm / 3W
2 GSM 925-960MHZ 35dbm / 3W
3 DCS/PCS 1805-1990MHZ 33dbm / 2W
4 3G 2110-2180MHZ 33dbm / 2W
5 4G700 700-803MHZ 35dbm / 3W
6 4G2600 2496-2690MHZ 30dbm / 1W
7 4G1700 1710-1780MHZ 33dbm / 2W
8 4G2300 2345-2400MHZ 30dbm / 1W
9 5G 600 617-675MHZ 35dbm / 3W
10 5G 3.4G 3300-3600MHZ 30dbm / 1W
11 5G 3.8G 3600-3900MHZ 30dbm / 1W
12 5G 4.0G 3900-4200MHZ 30dbm / 1W
13 WIFI 2.4G 2400-2500MHZ 30dbm / 1W
14 WIFI 5.2G 4900-5500MHZ 30dbm / 1W
15 WIFI 5.8G 5500-5900MHZ 30dbm / 1W
16 GPSL1 1570-1580Mhz 33dbm / 2W
17 GPSL2+L5 1170-1280MHZ 33dbm / 2W
18 GPSL3+L4 1370-1390MHZ 33dbm / 2W
19 LOJACK 167-175MHZ 35dbm / 3W
20 VHF 135-175Mhz 35dbm / 3W
21 UHF/RC433 400-470MHZ 35dbm / 3W
22 RC315 315MHZ 35dbm / 3W
Power supply: AC adapter 50 to 60Hz, (110 or 220V AC-12V DC)     Car storage battery Charger DC12V
Dimensions: (length ,width, height) 450x 238x 60mm(not Include Antenna)
Packing size: 55*44*15cm            Net weight: 7kg          Gross weight: 8.0kg
Total power:45W
Shielding radius: (30-60) meters At -75dBm
Still depends on the strength signal in given area, Shielding radius of VHF/UHF signal about 10meters
Warranty: one year from delivery date

OEM Customized service:
Silkscreen OEM service can be offered

Applications:
o    It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and morePlaces that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
